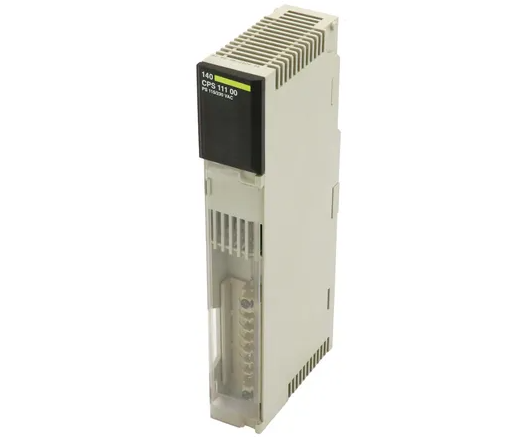

Product Introduction:SCHNEIDER 140CPS11100

Main features and advantages

SCHNEIDER 140CPS11100 is a standalone power module from Schneider Electric’s Quantum series,designed specifically for industrial automation systems.Its core advantages lie in high reliability,wide voltage adaptability,and efficient output,supporting redundant configurations to meet the power supply needs of critical equipment.This module adopts modular design,compatible with backplane/rack installation,provides stable 5.1V DC power supply,and is compatible with core components such as PLC and I/O modules.Built in overcurrent,overvoltage,and short-circuit protection functions,combined with LED status indicator lights,provide real-time feedback on operating status for easy fault diagnosis and maintenance.

technical specifications

Input voltage range:93-138V AC(115V nominal)or 170-276V AC(230V nominal)

Output voltage:5.1V DC

Output current:3A(independent mode)

Efficiency:>85%(series universal data)

Ripple and noise:<50mVpp

Protection level:IP20(standard configuration)

Working temperature:0℃to 60℃

Installation method:Backboard/rack mounted

Size and weight:105×70×40mm,0.65kg

application area

SCHNEIDER 140CPS11100 is widely used in the following scenarios:

Industrial automation control:provides stable power supply for Modicon Quantum series PLC and I/O modules,suitable for large-scale production systems such as petrochemicals,metallurgy,and cement.

Redundant power supply system:By configuring dual power sources,it ensures high availability of critical equipment such as servers and data acquisition units.

Complex environment adaptation:supports wide temperature operation and anti-interference design,suitable for scenarios such as rail transit,ships,intelligent buildings,etc.

Energy management:Provide low ripple power supply for new energy equipment(such as photovoltaic inverters and energy storage systems)to ensure signal transmission accuracy.

Related products

140CPS11420:Same series accumulative power module,supports multi-channel power supply expansion,suitable for high load scenarios.

140CPU67160:Quantum series redundant CPU module,working in conjunction with 140CPS11100 to achieve system level redundant control.

140XBP01600:Quantum backplane module,providing multi slot expansion space,suitable for integrated deployment of power and I/O modules.

140CRP93200:Remote I/O processor,powered by a power module,enables remote acquisition and transmission of distributed control signals.
