product overview

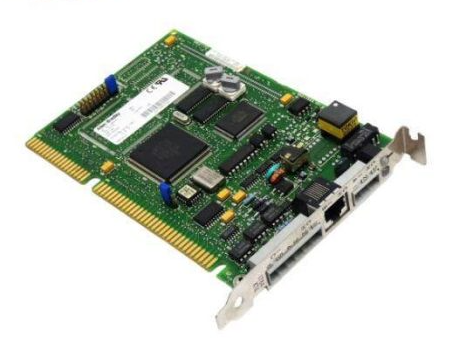

BOARD T11312 NAS-497E F3N3K0057-C3 is a core module in the field of industrial control, designed specifically for DCS (Distributed Control System) and PLC (Programmable Logic Controller). This module integrates high-precision signal processing and expansion functions, suitable for data acquisition and control requirements in smart factories, automated production lines, and complex industrial scenarios. It supports multi protocol communication and flexible networking.

Main features and advantages

High performance signal processing and scalability

Supports 7 expansion modules, covering functions such as digital input/output, analog current/voltage, thermistor/thermocouple, etc., to meet diverse sensor access needs. For example, a thermocouple module (such as NI FP-TC120) can be connected to achieve precise temperature monitoring.

Compatibility and Protocol Support

Compatible with SNAP PAC system (produced by Opto 22), supporting industrial protocols such as OPC, Modbus/TCP, EtherNet/IP, etc. It can directly interact with SQL databases, email systems, and serial devices (such as RS-232/485), simplifying the data integration process.

High reliability and stability

The module undergoes independent testing before leaving the factory to ensure long-term operational reliability. Adopting anti-interference design, suitable for industrial environments ranging from -10 ℃ to 50 ℃, and adaptable to complex working conditions with humidity ≤ 90% RH.

Flexible hardware configuration

Supports wired/wireless network deployment and can work in conjunction with intelligent processors such as SNAP PAC controllers to achieve distributed control and remote monitoring.

technical specifications

Parameter specifications

Working voltage 3V

Output frequency 2kHz

Communication interfaces Ethernet/IP, Modbus/TCP, RS-232

7 expansion slots

Applicable temperature range -10 ℃~50 ℃

Protection level IP20 (standard industrial environment)

application area

Industrial automation system

As the core module of DCS/PLC, it is used for production line control, equipment status monitoring, and data acquisition to improve production efficiency and equipment management accuracy.

Intelligent factory integration

Through multi protocol support, achieve collaborative control with robots (such as ABB, Yaskawa), servo drives (such as Mitsubishi MR-J2S-20CP), and other equipment.

Energy and Environmental Monitoring

Used in conjunction with thermocouples, RTDs, and other sensors for temperature monitoring and environmental parameter acquisition in energy systems.

Related products

NI PXI-5650 RF Signal Generator

Supports frequency range of 500kHz to 1.3GHz, and collaborates with NAS-497E to achieve wireless communication and RF signal processing.

DAQCard-700 Multi functional I/O Card

Provide analog input/output and digital I/O interfaces to expand the signal processing capabilities of NAS-497E.

MURATEC HM0-N1090-51 power module

Provide stable power support for NAS-497E and expansion modules to ensure system stability.

产品概述

BOARD T11312 NAS-497E F3N3K0057-C3是一款工业控制领域的核心模块，专为DCS（分布式控制系统）和PLC（可编程逻辑控制器）设计。该模块集成高精度信号处理与扩展功能，适用于智能工厂、自动化生产线及复杂工业场景的数据采集与控制需求，支持多协议通讯与灵活组网。

主要特点和优势

高性能信号处理与扩展能力

支持7个扩展模块，涵盖数字量输入输出、模拟量电流/电压、热电阻/热电偶等功能，满足多样化传感器接入需求。例如，可连接热电偶模块（如NI FP-TC120）实现温度精准监测。

兼容性与协议支持

兼容SNAP PAC系统（Opto 22出品），支持OPC、Modbus/TCP、EtherNet/IP等工业协议，可直接与SQL数据库、邮件系统及串口设备（如RS-232/485）交互，简化数据集成流程。

高可靠性与稳定性

模块出厂前经过独立测试，确保长期运行可靠性。采用抗干扰设计，适用于-10℃～50℃的工业环境，适应湿度≤90%RH的复杂工况。

灵活的硬件配置

支持有线/无线网络部署，可与智能处理器（如SNAP PAC控制器）协同工作，实现分布式控制与远程监控。

技术规格

参数项规格

工作电压3V

输出频率2kHz

通讯接口Ethernet/IP、Modbus/TCP、RS-232

扩展槽数量7个

适用温度范围-10℃～50℃

防护等级IP20（标准工业环境）

应用领域

工业自动化系统

作为DCS/PLC核心模块，用于生产线控制、设备状态监测及数据采集，提升生产效率与设备管理精度。

智能工厂集成

通过多协议支持，实现与机器人（如ABB、安川）、伺服驱动（如三菱MR-J2S-20CP）等设备的协同控制。

能源与环境监控

配合热电偶、RTD等传感器，用于能源系统温度监控及环境参数采集。

相关产品

NI PXI-5650 RF信号发生器

支持500kHz～1.3GHz频率范围，与NAS-497E协同实现无线通信与射频信号处理。

DAQCard-700多功能I/O卡

提供模拟量输入/输出与数字I/O接口，扩展NAS-497E的信号处理能力。

MURATEC HM0-N1090-51电源模块

为NAS-497E及扩展模块提供稳定电源支持，保障系统运行稳定性。
