Description:

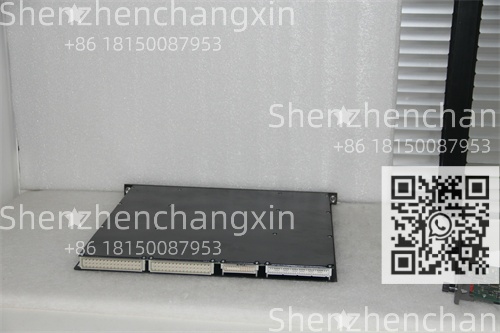

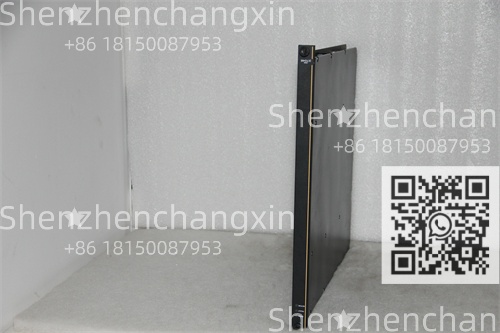

The TRICONEX 3704E​ is a critical safety-rated analog output module designed for the Tricon Triple Modular Redundant (TMR) safety system. It provides eight channels of isolated 4-20 mA output signals to control final elements such as control valves, variable speed drives, or analog actuators within a Safety Instrumented System (SIS) or Emergency Shutdown (ESD) system. It accepts commands from the TMR main processors and delivers a precise, voted, and validated analog current to the field, ensuring that safety actions are executed with the highest level of integrity and reliability.

Application Scenarios:

In a gas processing plant’s Emergency Shutdown (ESD) system, a critical safety function requires modulating a vent valve to a specific open position to safely depressurize a vessel. The Tricon controller, after processing logic from various sensors, determines the required valve position. This command is sent to a TRICONEX 3704E​ analog output module. The module’s three internal channels each generate a 4-20mA signal based on the command. These three signals are fed to a triple-redundant input on a smart valve positioner. The positioner performs a 2oo3 vote on the incoming signals. Only if at least two signals from the 3704E​ agree will the valve move. This architecture ensures that even if a fault occurs in one output circuit of the module or the wiring, the correct safety action is still executed, preventing a dangerous failure on demand.

Parameter:

Technical Principles and Innovative Values:

The TRICONEX 3704E​ is engineered to be the reliable and fault-tolerant “arm” of the safety controller, translating digital safety decisions into precise analog actions in the physical world.

Innovation Point 1: True TMR Output with Midline Value Selection:​ Each of the eight output channels internally comprises three completely independent Digital-to-Analog Converters (DACs) and output circuits. The module receives three separate command values from the three main processors (A, B, C). It does not simply pass one through; it performs a “midline value select” function. It compares the three commanded current values and selects the median value to drive all three output circuits. This ensures that even if one processor provides a faulty command, the output is based on the two correct ones, maintaining both safety and accuracy.

Innovation Point 2: Advanced Field Load Diagnostics:​ The module goes beyond simple output generation. It actively and continuously diagnoses the health of the field loop. It can detect an open circuit (wire break) by monitoring for insufficient current flow and a short circuit by detecting excessive current. It can also verify that the actual output current matches the commanded value within a tight tolerance. Any such discrepancy is immediately reported as a diagnostic alarm to the main processors, enabling predictive maintenance and ensuring the safety function’s integrity is maintained. This is critical for proving the health of the final element.

Innovation Point 3: High-Resolution, Isolated Outputs for Precise Control:​ Unlike simple on/off safety outputs, the 3704E​ provides high-resolution (e.g., 16-bit) analog control. This allows Safety Instrumented Functions (SIFs) to perform modulated responses, such as positioning a valve to 35% open rather than just fully closed or open. Each channel is individually isolated, preventing ground loops and ensuring that a fault in one control loop cannot affect the others, maintaining independent protection layers.

Application Cases and Industry Value:

Case 1: Compressor Anti-Surge Control in a LNG Plant:​ In a liquefied natural gas facility, a large centrifugal compressor is protected by an anti-surge system. If conditions approach the surge line, the SIS must rapidly open a recycle valve to prevent damaging surge. A TRICONEX 3704E​ module controls the analog input to the recycle valve’s positioner. The speed and precision of the 3704E’s output allow for proportional, fast-responding control, smoothly modulating the valve to stabilize the compressor. The module’s diagnostics ensured the valve was always ready to respond. During a system test, a fault was simulated in one output circuit. The module’s diagnostics immediately alerted operators, and the TMR design ensured the valve continued to respond correctly based on the two healthy circuits, allowing the compressor to remain online while maintenance was scheduled, avoiding a multi-million dollar shutdown.

Case 2: Boiler Combustion Control Safety Override:​ In a power plant boiler, the main Distributed Control System (DCS) manages fuel and air ratios. A separate Burner Management System (BMS) using a Tricon controller provides safety overrides. A TRICONEX 3704E​ module is used to take control of the main fuel valve if the BMS logic demands a safety cutback. The module outputs a 4-20mA signal to a high-integrity positioner, overriding the DCS signal. The plant’s engineers valued the 3704E​ because its SIL 3 certification contributed to the required safety rating of the override function, and its reliability meant the override was guaranteed to work when needed, without causing nuisance trips.

Related Product Combination Solutions:

Tricon Main Processor (e.g., 3009. 4319):​ Executes the safety logic and sends the analog output commands to the 3704E.

Tricon Analog Input Module (e.g., 3503E):​ Provides the process measurements (e.g., pressure, flow) that the safety logic uses to determine the required output from the 3704E.

Tricon Digital Output Module (e.g., 3625):​ Often used in conjunction for on/off safety functions (e.g., full shutoff valves) while the 3704E​ handles modulated control.

Smart Valve Positioner (e.g., with TMR input):​ The field device that accepts the 4-20mA signal from the 3704E​ and translates it into precise valve stem movement. A positioner with triple input channels pairs perfectly with the TMR output.

Isolated Safety Barrier:​ Sometimes used between the 3704E​ and the field device in hazardous areas to provide intrinsic safety (IS) protection.

TriStation 1131 Software:​ Used to configure the 3704E​ module, including scaling (engineering units to mA), fault states, and diagnostic alarm limits.

Redundant Power Supply (e.g., 8312):​ Provides fault-tolerant power to the chassis containing the 3704E, ensuring its continuous operation.

Installation, Maintenance, and Full-Cycle Support:

Installation of the TRICONEX 3704E​ requires adherence to safety system procedures. The module is inserted into a compatible slot in the Tricon chassis. Field wiring to control valves or I/P transducers is connected to its terminal block. Proper grounding and isolation are critical to avoid noise. Configuration is done within the TriStation 1131 project, where each channel is assigned to a control variable, with scaling configured (e.g., 0-100% corresponds to 4-20mA) and fail-safe state defined (e.g., hold last value or go to a predefined mA value on fault).

Maintenance is driven by periodic proof testing and module diagnostics. The system’s health monitoring will alert personnel to any channel faults. The 3704E​ is hot-swappable. To replace a faulty module, the specific I/O bus can be placed in a secure state, the old module removed, and a new one inserted. The system will automatically recognize it and download the configuration. It is imperative to use a genuine, correctly firmware-versioned TRICONEX 3704E​ module. We supply the authentic module. Our support includes verifying the exact hardware/firmware revision for your system and can guide you through the replacement and post-replacement validation process to ensure your safety loop’s integrity is fully restored.

Contact us for the genuine TRICONEX 3704E analog output module to ensure the faithful and fault-tolerant execution of critical safety actions in your process.
