Description

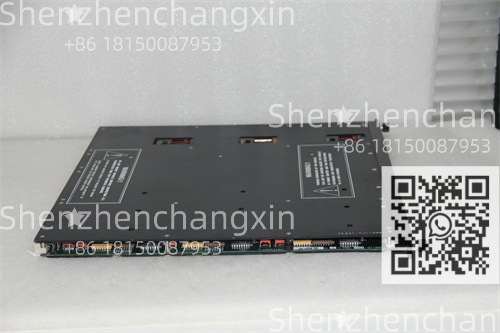

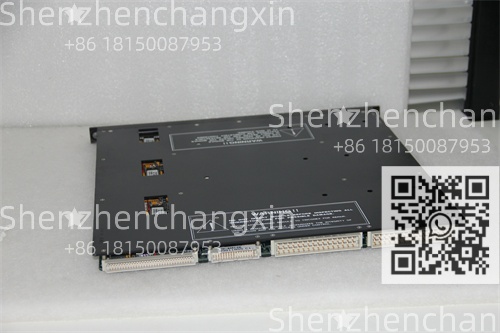

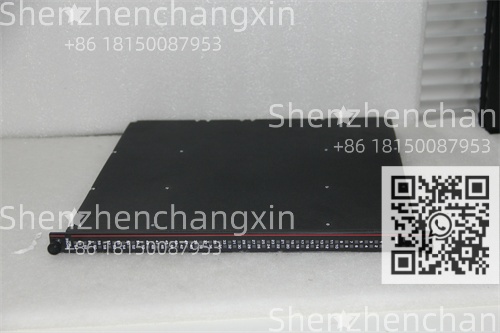

The Triconex 3504E is a fault-tolerant, triple-modular redundant (TMR) analog output module engineered for the Tricon® and Triconex® safety instrumented systems (SIS). Designed to drive final control elements—such as electro-pneumatic valve positioners, variable frequency drives (VFDs), or chart recorders—in high-integrity applications, the 3504E delivers precise, certified 4–20 mA signals with continuous self-diagnostics. Built for industries where failure is not an option—including oil & gas, chemical processing, and power generation—the 3504E ensures deterministic response and SIL 3 compliance per IEC 61508 and IEC 61511.

Application Scenarios

At a Gulf Coast ethylene cracker, emergency shutdown valves (ESVs) controlling reactor feed lines exhibited inconsistent closure speeds due to analog signal drift from non-redundant output cards. During a near-miss incident, one valve failed to seat fully within the required 2 seconds, risking thermal runaway. The plant replaced legacy outputs with Triconex 3504E modules, leveraging their TMR architecture and per-channel diagnostics. Post-upgrade, all ESVs achieved consistent 1.4-second closure, and the system logged early warnings on a failing I/P converter before it caused a spurious trip. This case demonstrates how the 3504E transforms analog output from a potential single point of failure into a resilient, intelligent safety layer.

Parameter

表格

Technical Principles and Innovative Values

Innovation Point 1: The 3504E employs true TMR at the analog output stage—each channel is driven by three independent current sources that are voted in real time, eliminating common-mode failures that plague dual-redundant designs.

Innovation Point 2: It supports HART communication overlay on the 4–20 mA loop without compromising safety integrity, enabling asset management tools (e.g., AMS Device Manager) to read valve diagnostics during normal operation.

Innovation Point 3: Built-in output deviation detection compares commanded vs. actual current (via internal sensing) and flags discrepancies >1%—a critical feature for detecting failing I/P transducers before they compromise safety function.

Innovation Point 4: Unlike standard DCS analog outputs, the 3504E executes fail-safe actions on demand: on SIS trip, it can force 0 mA, 4 mA, or a user-defined safe value within 100 ms, ensuring predictable final element behavior.

Application Cases and Industry Value

In a Norwegian offshore platform’s fire & gas system, the Triconex 3504E was deployed to control deluge valve positioners across 12 zones. Previously, false alarms occurred due to undetected analog card drift. With the 3504E, each output channel’s health status became visible in the TriStation diagnostics window, and HART-enabled positioners reported stem friction trends. Results included:

Zero spurious trips over 18 months of operation

50% reduction in proof-test duration due to automated diagnostic coverage

Full compliance with NORSOK S-001 safety documentation requirements

Safety engineers credited the 3504E’s deterministic fail-safe response and diagnostic transparency as key to achieving a PFDavg < 10⁻⁴ for the deluge system.

Related Product Combination Solutions

Triconex 3501E: Analog input module—pairs with the 3504E for closed-loop safety control (e.g., pressure-to-valve response).

Triconex 3604E: Digital output module—used alongside 3504E for hybrid shutdown commands (e.g., close valve + stop pump).

TriStation 1131: Engineering workstation—enables full configuration, simulation, and online monitoring of 3504E channels.

Fisher FIELDVUE DVC6000: HART-enabled positioner—fully compatible with 3504E for smart valve diagnostics in SIS loops.

Triconex Chassis (e.g., 4329A): Ruggedized mainframe housing the 3504E with redundant power and communication modules.

AMS Device Manager: Asset management software—reads HART data from devices driven by the 3504E without bypassing safety logic.

Schneider Foxboro I/A Series: Can interface with Triconex SIS via OPC or Modbus for coordinated BPCS/SIS operations.

Triconex 9560: Remote I/O chassis—extends 3504E functionality to hazardous areas via fiber-optic links.

Installation, Maintenance, and Full-Cycle Support

Installing the Triconex 3504E requires insertion into a powered-down Triconex chassis, followed by secure backplane engagement. Wiring must use shielded twisted-pair cables with shields grounded at the controller end only. Loop testing is performed through TriStation’s built-in calibration utility, which verifies output accuracy across 4. 12. and 20 mA points.

For maintenance, the 3504E provides LED indicators per channel (green = OK, red = fault) and logs all diagnostic events in non-volatile memory. While not hot-swappable under live SIS conditions, replacement is supported during planned outages with automatic parameter restoration. We validate every 3504E through rigorous TMR synchronization tests, EMI stress (IEC 61000-4 Level 4), and thermal cycling. Our support includes SIL verification documentation, HART integration guidance, and lifecycle migration services for plants upgrading from legacy Triconex 3503 or 3504 modules.

Contact us for a customized safety solution—whether you’re designing a new SIS, modernizing legacy shutdown systems, or seeking SIL 3-certified analog output reliability. With decades of functional safety expertise and global Triconex deployment experience, we ensure your 3504E delivers uncompromising integrity, intelligence, and operational confidence.
