Description

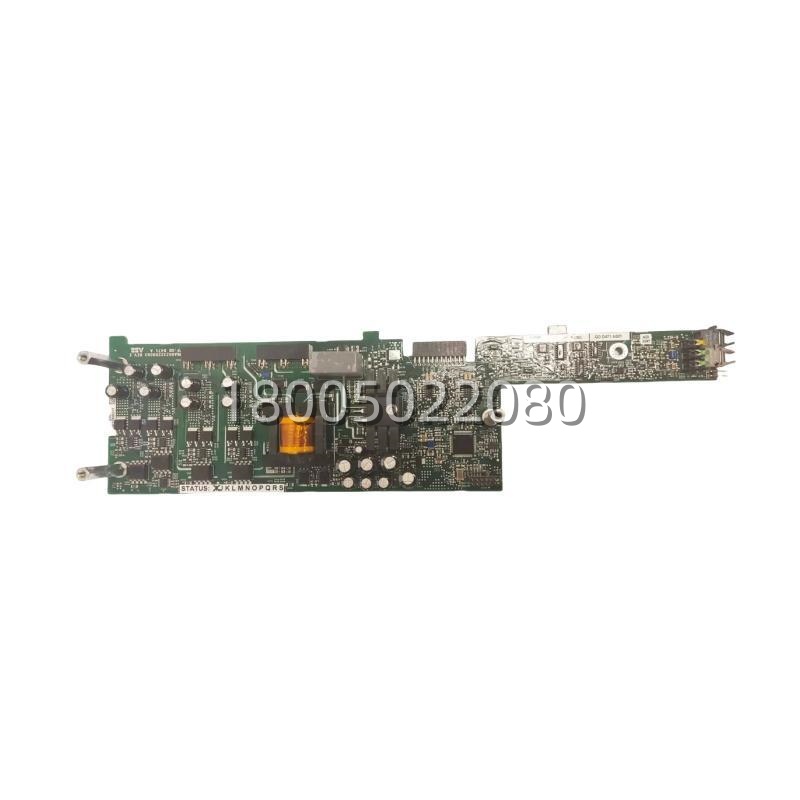

The ABB 2UBA002322R0001, also designated as GDD471A001, is a high-performance Power Unit Control Board engineered specifically for ABB’s ACS580MV series medium-voltage (6kV/10kV) variable frequency drives . This board serves as the “brain” for each individual power cell within the drive’s multi-level topology, responsible for converting optical PWM command signals from the main controller into precise IGBT gate drive pulses that control the inverter’s power conversion .

As a critical sub-component of the power cell, the ABB 2UBA002322R0001 integrates real-time voltage/current/temperature acquisition, high-speed fiber-optic communication, and comprehensive hardware protection logic into a compact, ruggedized PCB designed for harsh industrial environments . Its ability to execute local fault handling and unit bypass logic autonomously ensures that a single power cell anomaly does not cascade into a full drive shutdown—a key differentiator from simpler I/O boards .

Application Scenarios

Picture a cement plant’s main kiln ID fan—a critical process powered by an ABB ACS580MV drive. One of the dozens of power cells in the multi-level inverter fails to communicate with the master controller due to a corrupted firmware or a damaged IGBT driver on its control board. The drive trips immediately, bringing the entire production line to a halt. Without a replacement ABB 2UBA002322R0001 on hand, the plant faces days of downtime while waiting for a new board, incurring losses of hundreds of thousands of dollars in lost production and restart costs .

Now imagine the same plant has wisely stocked a ABB 2UBA002322R0001 as a critical spare. When the fault occurs, a trained technician isolates the power cell, removes the failed board, installs the new one, and powers up the cell. The board runs its automatic self-diagnostic routine, confirms the fiber-optic link is restored, and clears the fault. The entire replacement—from diagnosis to drive restart—takes less than two hours, avoiding a costly multi-day outage . This scenario underscores the board’s value as an insurance policy for critical infrastructure: a targeted, cost-effective spare that prevents catastrophic downtime.

Parameter
