Description

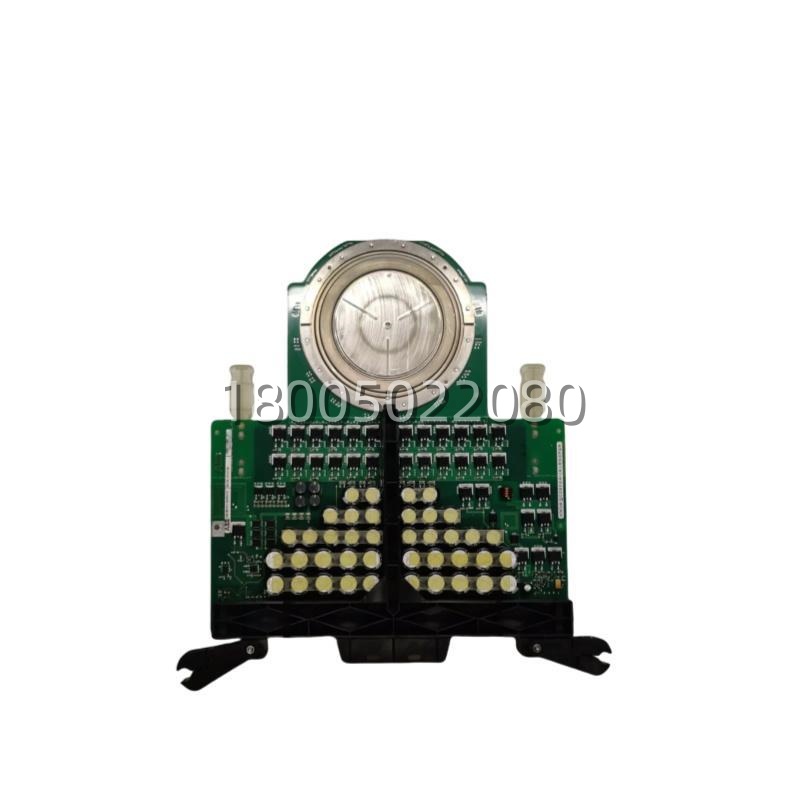

The ABB 3-010751R0101​ is a high-power IGCT (Integrated Gate-Commutated Thyristor) module manufactured by ABB for use in medium-voltage AC drive inverter sections such as the ACS5000 and ACS6000 series. Combining the low on-state loss of a thyristor with the fast turn-off capability of a GTO/IGBT, it provides hard-switched, snubber-less operation in high-current, multi-megawatt power conversion applications.

Application Scenarios

A steel rolling mill operating an ABB ACS6000 SD​ main drive experienced intermittent overcurrent trips during acceleration ramps. Diagnostics pointed to degraded reverse-blocking characteristics in one IGCT within the inverter bridge. The maintenance team replaced the failed unit with a tested ABB 3-010751R0101​ IGCT module—ensuring gate driver board matching and proper torque on the press-pack contacts. Post-replacement, the drive resumed full 6MW rated output with stable di/dt behavior and no false fault triggers, saving an estimated 36-hour production shutdown. For drive engineers, keeping a verified ABB 3-010751R0101​ spare on-site is a proven strategy to minimize MTTR (Mean Time To Repair) on mission-critical MV drive assets.

Parameter

Main Parameters Value/DescriptionProduct Model 3-010751R0101 (also referenced as 010751R0101)Manufacturer ABB (ABB Switzerland / Power Semiconductors)Product Category IGCT – Integrated Gate-Commutated Thyristor Module (Press-Pack)Rated Blocking Voltage ≤ 4500–6000 V (typical IGCT class for MV drives, verify per drive manual)Max Continuous Current (IT(RMS)) ~ 3000 A (depending on cooling & duty cycle)Turn-off Time (toff) ≤ 5 µs — enables hard-switching without snubber circuitsGate Trigger / Turn-off Integrated low-inductance gate unit interface (matched ABB gate driver required)Cooling Method Liquid-cooled heatsink / forced-air convection (per inverter stack design)Package Type Press-pack (disk-type) hermetically sealed, dual-sided coolingInsulation Class Class H (180°C max junction temp rating)Operating Temp. Range -40 °C to +125 °C (junction); -25 °C to +70 °C (ambient in cabinet)Mounting Clamped between copper busbars in inverter phase leg with defined pressureCompliance IEC 60747-9/ RoHS compliant; UL recognized component (per ABB IGCT family)

Technical Principles and Innovative Values

• Innovation Point 1 – Hard-Switched Snubberless Operation:​ Unlike conventional GTO thyristors, the ABB 3-010751R0101​ features a very low storage charge and sub-microsecond gate turn-off, allowing true hard switching without bulky RC snubbers—reducing inverter volume and component count.
• Innovation Point 2 – Press-Pack Double-Sided Cooling:​ The disk-type press-pack encapsulation provides symmetrical thermal paths through both anode and cathode surfaces, enabling efficient heat extraction at several thousand amperes when properly clamped to liquid-cooled heat sinks.
• Innovation Point 3 – Extremely Low On-State Voltage Drop (Vt):​ The IGCT structure maintains thyristor-like Vt (~1.5–2.0 V typical), resulting in significantly lower conduction losses than IGBTs at equivalent voltage classes—critical for multi-MW continuous-duty drives.
• Innovation Point 4 – Short-Circuit Ruggedness & dI/dt Immunity:​ The ABB 3-010751R0101​ is designed to withstand high di/dt during fault conditions and can be safely turned off under short-circuit current, provided the matched gate driver issues the correct turn-off pulse within the specified window.
