Description

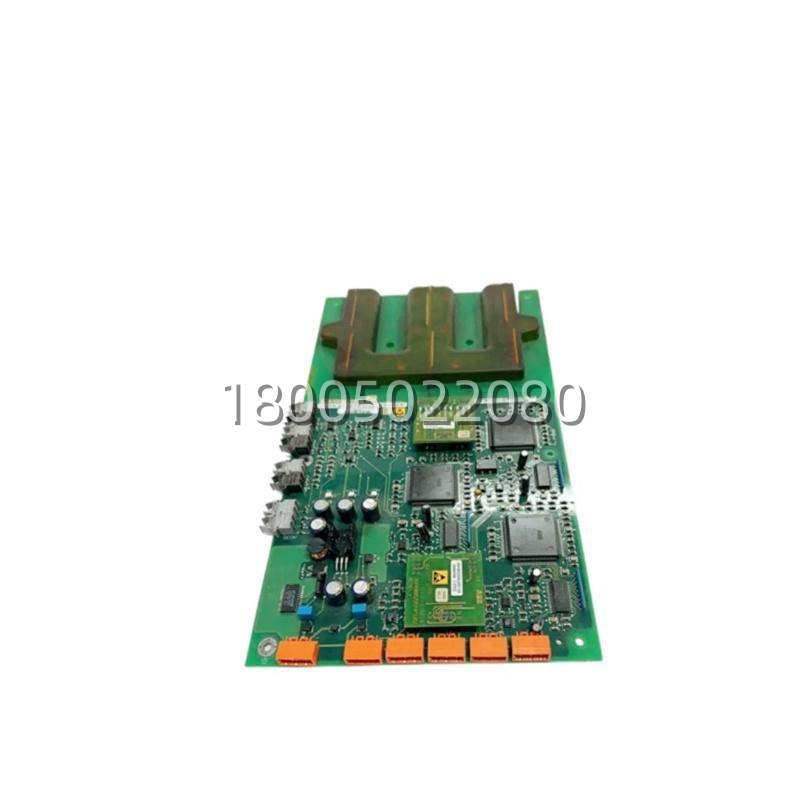

The UFC721AE101 (Material / Drawing No. 3-002916R0101) is a Digital Quantity Control Board (Digital I/O & Logic Processing Card) manufactured by ABB, part of the UFC721 / Procontrol P14 and Advant OCS family. It acquires and processes discrete (on/off) signals from field devices—such as breaker positions, limit switches, pushbuttons, and motor-run feedback—and drives digital outputs to actuators or annunciator panels, while communicating processed status to the DCS central controller via the system backplane.
Application Scenarios
Imagine an oil refinery running ABB Advant OCS where one controller rack serving the CDU (Crude Distillation Unit) pre-alarm panel begins showing “Module Comms Lost” on a digital board, and several pump-run-status indications freeze on the operator console. Loop checks confirm field wiring is intact—the fault is traced to an aged UFC721AE101 whose onboard buffer ICs have degraded. Rather than replace the entire 19″ rack (which would mean re-terminating 96+ field wires and a multi-hour shutdown), the I&E technician powers down the rack, extracts the faulty PCB, inserts a verified UFC721AE101 (3-002916R0101) matching the same hardware revision, and restores power. The RUN LED illuminates, backplane communication resumes, and all pump-status bits return—no reprogramming, no rewiring, under 20 minutes. The UFC721AE101 directly solves the legacy-spares availability gap for plants committed to extending the certified life of proven ABB DCS assets.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | UFC721AE101 (Drawing / Spare No. 3-002916R0101) |
| Manufacturer | ABB |
| Product Category | Digital Quantity Control Board / Digital I/O Processing Card (UFC721 Series) |
| Associated System | ABB Advant OCS, Procontrol P14 DCS (select racks), compatible with Advant Station 500-series |
| Function | Digital input sensing (24 V DC wet/dry contact), digital output driving, backplane bus interface, onboard logic preprocessing |
| Digital Input Channels | Typically 16 or 32 channels (per exact board variant — verify silk-screen / config) |
| Digital Output Channels | Typically 16 channels (relay or solid-state — per variant) |
| Input Voltage / Threshold | 24 V DC nominal (ON threshold 12–18 V DC; OFF < 5 V DC typical) |
| Isolation | Optical isolation between field side and system backplane (≥ 1500–2500 V AC) |
| Backplane Power | +5 V DC / +24 V DC from DCS rack backplane; typ. 3–6 W |
| Onboard Features | Status LEDs (Run / Err / Ch Active), Watchdog timer, EEPROM for board ID & config checksum |
| Communication / Bus | Proprietary ABB Advant / Procontrol P14 backplane bus (memory-mapped I/O scan) |
| PCB Construction | Multilayer industrial FR-4 with gold-flashed edge connector, SMT ICs & optocouplers |
| Operating Temp. | 0 °C to +60 °C (extended -20 °C to +70 °C on select revisions) |
| Mounting | Edge-connector into DCS rack backplane; secured by captive screws / ejector levers |
| Dimensions (Approx.) | 233 × 160 mm (Eurocard double-height format — per UFC721 family) |
| Weight (Approx.) | 0.35–0.50 kg |
Technical Principles and Innovative Values
- Innovation Point 1 — Opto-Isolated Per-Channel Digital Acquisition: Each digital input on the UFC721AE101 passes through a dedicated optocoupler with hardware RC debounce (typically 5–20 ms software-selectable via host config). This rejects contact bounce and induced transients from high-voltage switchyards, delivering clean, glitch-free status bits to the control processor—essential for correct breaker-position supervision and interlock logic.
- Innovation Point 2 — EEPROM-Based Auto-Identification & Plug-Compatibility: The board stores its hardware type, revision (AE101), and channel-map checksum in non-volatile EEPROM. On insertion the DCS CPU auto-reads this data and maps I/O addresses without manual DIP-switch setting—provided the host firmware supports the AE101 revision. This makes the UFC721AE101 a true “remove-and-replace” spare requiring no download or re-addressing.
- Innovation Point 3 — Integrated Watchdog & Self-Diagnostics: An onboard watchdog monitors the internal scan cycle and reports communication loss, power-fail, or channel-short conditions to the fault bus. Front-panel LEDs and DCS diagnostic messages pinpoint the failure mode (e.g., “Digital Board — Ch 3 Short Detected”), reducing MTTR vs. passive I/O cards that give only a generic rack-error.
