Product Overview

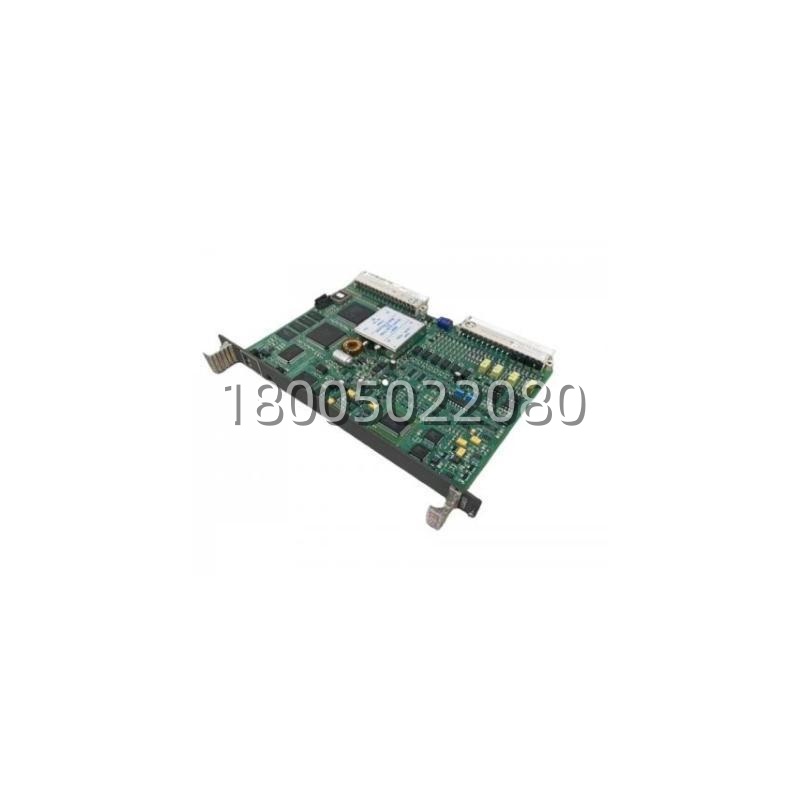

The ABB 83SR51F-E​ (order number GJR2396200R1210) is a dual-channel hybrid control module within ABB’s Procontrol P14 distributed control system (DCS), engineered as the “smart terminal” that sits on the PROCONTROL station bus and executes closed-loop positioning logic for electro-hydraulic, electro-pneumatic, and electric motor-driven actuators—applications such as forced-draft fan inlet vanes, coal-feeder damper actuators, turbine bypass valve positioners, and chemical-plant large-skid drive controls. The 83SR51F-E​ is not a general-purpose PLC module; it is a DCS-level function-unit (FU) carrier that bakes single-variable continuous control algorithms, I/O conditioning, and actuator drive into one 6U rack slot, eliminating the need for external stand-alone positioner electronics on many medium-complexity loops. Each of the two fully independent channels on the 83SR51F-E​ integrates 4 digital inputs (dry-contact / NAMUR / 48V DC class), 1 digital output (relay, short-circuit protected), 2 analog inputs (0/4–20 mA, 12-bit, ≤0.1% accuracy), and 1 analog output (0/4–20 mA, 12-bit, ≤500 Ω load), giving a per-channel “DI+DO+AI+AO” complement that maps directly onto a typical actuator: DI = limit switches / local/remote selector / fault contact; DO = run/enable/stage command; AI = position feedback (4–20 mA from LVDT or potentiometer) + a second analog (pressure/force transducer); AO = position-setpoint to the servovalve or I/P converter.Architecturally, the 83SR51F-E​ is a multi-processor design: a main CPU handles the PROCONTROL station-bus telegram exchange, user-logic execution, and diagnostics, while a co-processor / DSP owns the analog-loop math (PID, ramping, characterization) and the millisecond-deterministic scan of the I/O and control algorithm—critical for actuator loops where a 10 ms jitter translates to visible valve hunting on a 300 MW boiler draft system. The module plugs into any slot of a Procontrol P14 rack, draws 24V DC from the backplane (typical 3.5 W, max ~15–20 W per ), and auto-addresses on the PROCONTROL station bus—no DIP switches, no node-ID jumpers. User program resides in on-board Flash-PROM and downloads from the PDDS (Process Diagnosis and Documentation System) or Process Operator Station (POS30) over the bus; 1:1 hot-standby redundancy is supported at the rack level, with automatic switchover and event logging. Front-panel LEDs give ST (general disturbance, e.g., backplane voltage sag, bus parity error) and SG (module-specific disturbance, e.g., AI out-of-range, DO short) for at-a-glance troubleshooting. The 83SR51F-E​ is catalog-active for Procontrol P14 sustainment but is not a new-design choice—plants that have migrated to ABB 800xA / AC 800M / S800 I/O no longer need it; those still running Procontrol P14 (large installed base in coal-fired, gas-fired, nuclear aux, and legacy petrochemical) keep the 83SR51F-E​ as a validated spare because re-qualifying the actuator loop on a new platform requires re-coding, re-loop-checking, and re-commissioning that most utilities won’t budget while the P14 rack is still healthy.

Technical Specifications

Main Features and Advantages

Per-channel DI+DO+AI+AO integration eliminates external positioners:​ The design anchor of the 83SR51F-E​ is that each of its two channels is a self-contained actuator-control FU—4 DI for limit switches and local/remote/HOA contacts, 2 AI for position feedback (LVDT / potentiometer / 4–20 mA smart positioner) plus a second analog (pressure transducer on a hydraulic pack, or force cell on an electro-pneumatic damper), 1 AO for the setpoint drive to the I/P or servovalve, and 1 DO for run-enable or staging. On a forced-draft fan inlet-vane actuator, Channel 0 of the 83SR51F-E​ can close the entire loop: DI = vane-full-open / full-closed / local-selector / fault-A; AI0 = vane LVDT position (4–20 mA, 0–100%); AI1 = hydraulic-pack pressure (4–20 mA); AO = setpoint to the electro-hydraulic servovalve (4–20 mA); DO = hydraulic-pack enable contactor. All of this lives in one Procontrol P14 slot, programmed via PDDS, with the P14 CPU handling the supervisory logic (ramp-rate select, auto/manual handoff, protection interlocks) and the 83SR51F-E​ owning the millisecond PID and AO drive. No external smart positioner, no separate analog-output card, no separate relay card—the “hands-feet” integration is why the 83SR family was ABB’s go-to for P14 actuator loops.Multi-processor + DSP for millisecond actuator scan:​ Unlike a generic DI/DO/AO/AO combo card that just passes data to a CPU, the 83SR51F-E​ runs its own control algorithm on a co-processor / DSP, with the main CPU handling PROCONTROL bus telegrams (parity-checked inbound, parity-appended outbound) and the Flash-PROM user program. The control scan is millisecond-class—fast enough that a hydraulic servo valve (bandwidth 20–50 Hz) gets its AO setpoint updated every few ms, keeping following error tight through the vane-swing transients of a 300 MW load step. The 12-bit AI (≤0.1% accuracy) and 12-bit AO mean the position loop resolves ~1:4096 on a 4–20 mA span—0.0039 mA per count, which for a 100 mm stroke LVDT is ~0.024 mm per count, more than adequate for FD-fan vane positioning where the spec tolerance is ±2 mm. For plants that tried to replicate this with a generic PLC analog card + external positioner, the 83SR51F-E​ approach gives tighter following error and fewer “valve dither” nuisance alarms because the PID and the AO drive share the same silicon with no bus-latency between them.PROCONTROL station-bus auto-addressing and parity:​ The 83SR51F-E​ plugs into any Procontrol P14 rack slot—address is auto-assigned by the rack backplane when the module seats (the P14 station bus uses slot-position encoding + a rack-ID from the P14 power/controller module). This means a spare 83SR51F-E​ can be swapped into “Slot 4” of Rack B without touching DIP switches or downloading a node-ID—the P14 controller already expects “Slot 4 = 83SR51F-E Channel 0 = FD-vane A, Channel 1 = FD-vane B” from the PDDS configuration, and the module inherits that mapping on insertion. Telegrams on the station bus are parity-checked inbound and parity-appended outbound by the 83SR51F-E​ hardware—bus corruption shows as ST LED + a PDDS diagnostic entry, not as silent data corruption. This is DCS-grade integrity, not PLC-grade “best effort.”
