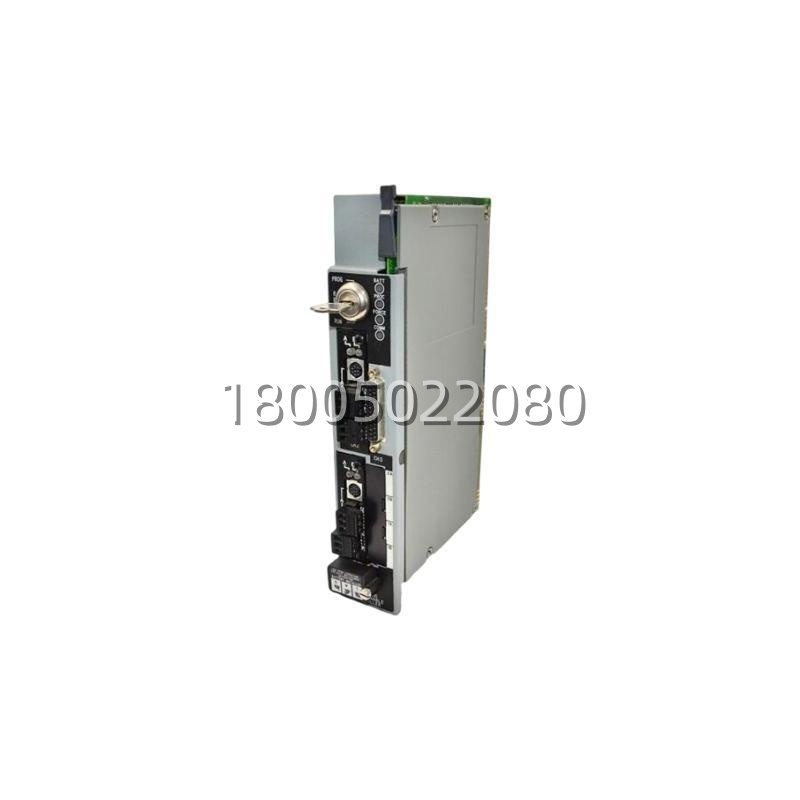

Description:The 1785-L60B/C (Series C) is an Enhanced PLC-5/60E programmable controller manufactured by Allen‑Bradley (Rockwell Automation). It represents the high-end of the classic PLC‑5 family, featuring a 64K-word user memory and support for up to 3072 I/O points. This processor is designed for large, complex automation tasks and is a key component in legacy control systems still prevalent in heavy industry. The “Series C” designation indicates a later firmware revision with enhanced stability and feature support compared to earlier Series A/B modules.Application Scenarios:In a legacy automotive assembly plant, the 1785-L60B/C serves as the main line controller. It reads inputs from thousands of sensors via 1771 I/O racks, executes complex sequencing logic for robotic welders and conveyors, and communicates production data to a central SCADA system over its Data Highway Plus (DH+) network. Its high I/O capacity and deterministic scan time are critical for coordinating large-scale, high-speed manufacturing processes.
Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | 1785-L60B/C (Series C, PLC-5/60E) |
| Manufacturer | Allen‑Bradley (Rockwell Automation) |
| Processor Family | PLC-5 Enhanced (PLC-5/60E) |
| User Memory | 64K words (expandable via 1785-ME series modules) |
| Max I/O Capacity | 3072 points (any mix of discrete/analog) |
| Communication Ports | Channel 0: RS-232/422 (DF1/ASCII) Channel 1A: Data Highway Plus (DH+) Channel 1B: 10 Mbps Ethernet (IEEE 802.3) Channel 2: Remote I/O Scanner |
| Programming Language | Ladder Logic (PLC-5 instruction set) |
| Programming Software | RSLogix 5 |
| Backup Memory | Battery-backed RAM (1770-XYC) & EEPROM option |
| I/O Compatibility | 1771-A* series chassis (local/remote) |
| Operating Temperature | 0 to 60 °C |
Technical Principles and Innovative Values:The 1785-L60B/C is built around a proprietary 16/32-bit microprocessor architecture optimized for industrial control.
- Innovation Point 1: Integrated Multi-Network Connectivity: Unlike earlier models, the Series C “E” (Enhanced) variant features a built-in 10 Mbps Ethernet port (Channel 1B). This allows the processor to communicate natively with Ethernet-enabled HMIs and other controllers, bridging the gap between legacy DH+ networks and modern TCP/IP infrastructure.
- Innovation Point 2: Enhanced I/O Scanning: The processor utilizes a high-speed I/O scanner that supports block transfers for analog modules and specialty I/O. This allows it to efficiently manage large configurations of up to 24 I/O racks with deterministic scan times, crucial for process control applications.
- Innovation Point 3: Advanced Instruction Set: The PLC-5/60E supports an expanded instruction set including floating-point math, PID with auto-tune, and advanced data handling (e.g., COP, FAL). This enables it to handle complex calculations and process control loops that were typically reserved for minicomputers or DCS systems in its era.
