Product Overview

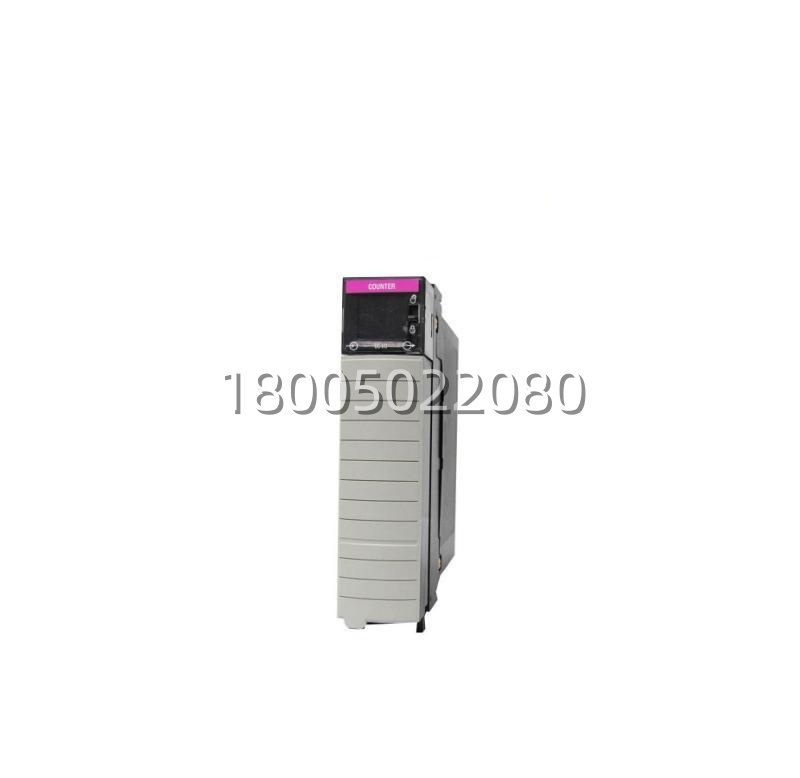

The Allen-Bradley 1756-HSC​ is a dedicated high-speed counter (HSC) module for the ControlLogix platform, designed to handle demanding applications requiring precise, high-frequency counting and measurement of digital pulse trains. This module serves as a critical interface between high-speed sensors—such as rotary encoders, linear scales, proximity sensors, and laser sensors—and the ControlLogix controller. Its primary function is to accurately count, totalize, and measure the frequency of fast digital signals that exceed the capability of standard digital input modules, offloading this computationally intensive task from the main processor. The Allen-Bradley 1756-HSC​ typically provides multiple independent counter channels (e.g., 4 channels), each capable of handling differential or single-ended inputs with sophisticated features like quadrature decoding for direction sensing, preset/rollover control, and integrated ladder logic comparison for generating precise outputs.As a specialized function module within the ControlLogix I/O system, the 1756-HSC​ provides deterministic performance essential for applications like cut-to-length, registration control, web tension monitoring, rotary knife positioning, and high-speed batching. It operates autonomously, processing input signals in hardware with minimal latency and updating its count values in the controller’s data table at a configurable rate. This ensures that high-speed events are captured with precision and without the jitter that could occur if processed in the main control program scan. The module’s value lies in its ability to enable precise positional control and measurement in high-speed machinery, directly contributing to product quality, material yield, and overall equipment effectiveness (OEE). By providing accurate, real-time feedback on speed, position, and length, the Allen-Bradley 1756-HSC​ empowers ControlLogix systems to execute complex motion coordination and high-speed sequencing that would otherwise be impossible with standard I/O.

Technical Specifications
