Product Overview

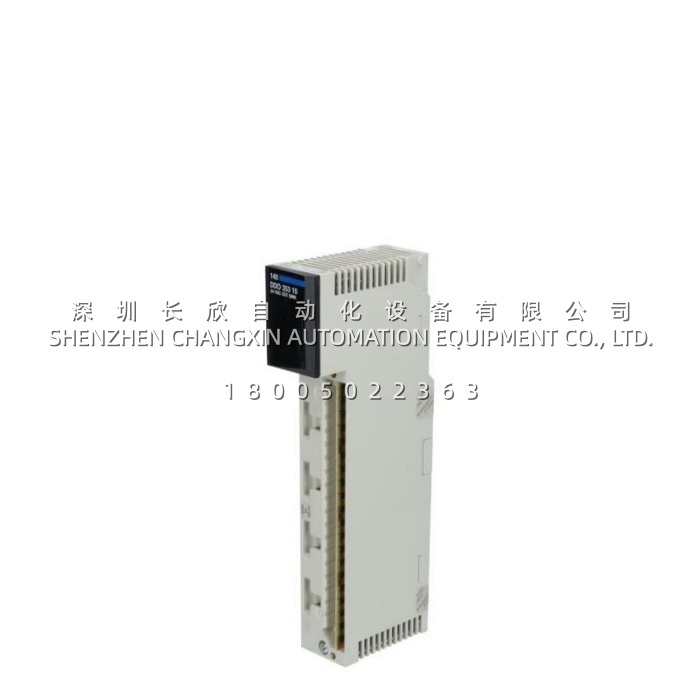

The 140DDO35310​ is a high-density 32-channel DC discrete output module engineered by Schneider Electric for its flagship Modicon Quantum programmable logic controller platform. As a negative logic (sink-type) solid-state output card, the 140DDO35310​ provides 32 discrete output circuits organized into 4 isolated groups of 8 channels each, switching 24 V DC field devices such as solenoid valves, pilot lamps, interposing relays, alarm beacons, and small DC actuators with deterministic, sub-millisecond response. The module occupies a single slot in the Quantum rack, drawing backplane power at ≤330 mA and requiring allocation of 2 output words in the processor memory map, making it an exceptionally space-efficient solution for high-channel-count automation architectures.Built on Schneider’s proven Quantum I/O design, the 140DDO35310​ delivers a nominal 24 V DC output across a working voltage range of 19.2–30 V DC, with an absolute maximum surge tolerance of 50 V for 1 second. Each individual point sources up to 0.5 A, each group sustains 4 A, and the entire module supports a combined 16 A load—ample capacity for driving dozens of industrial loads simultaneously. State transitions execute in ≤1 ms both for OFF-to-ON and ON-to-OFF directions, enabling the 140DDO35310​ to keep pace with high-speed packaging lines, synchronized sorting conveyors, and rapid-cycling production equipment without introducing hardware propagation delays into the control loop.Reliability engineering sits at the core of the 140DDO35310. A massive 1780 Vrms DC isolation barrier separates the output field wiring from the internal backplane bus for 1 minute, while an additional 500 Vrms DC isolation layer between each channel group allows engineers to mix independent field power sources on a single card safely. Every group of 8 channels is protected by an internal 5 A fuse, and the module continuously monitors for loss of field power and blown fuse conditions, surfacing faults through a dedicated red “F” LED and reporting them to the Quantum processor for centralized diagnostics. The PCB carries a Humiseal 1A33 conformal coating, and the module holds C-Tick, RMRS, RINA, FM Class 1 Division 2, GOST, CSA C22.2 No.142, and UL 508 certifications. With an operating temperature range of 0°C to 60°C, immunity to 4 kV contact / 8 kV air electrostatic discharge, and 10 V/m electromagnetic field resistance, the 140DDO35310​ is built to thrive in the electrically hostile environments of chemical plants, water treatment facilities, material handling systems, and manufacturing assembly lines.

Technical Specifications

Main Features and Advantages

The 140DDO35310​ delivers a feature set purpose-built for high-density, high-reliability discrete actuation in Modicon Quantum automation systems. Its most compelling advantage is the 32-channel density packed into a single standard-width rack slot. By consolidating 32 sink-type 24 V DC outputs onto one card, the 140DDO35310​ maximizes I/O point count per rack, reduces backplane slot consumption, and minimizes cabinet footprint compared to lower-density alternatives. For plant engineers managing large Quantum installations, this density translates directly into lower per-point cost and simpler spare-parts logistics.Sub-millisecond solid-state switching forms the second pillar of the 140DDO35310‘s performance profile. Unlike electromechanical relay outputs that suffer contact wear, bounce, and limited switching frequency, the 140DDO35310​ uses high-speed solid-state circuitry to execute state transitions in ≤1 ms in both directions. This ultra-low latency ensures that high-speed packaging lines, synchronized sorting conveyors, and rapid-cycling production equipment receive near-instantaneous output updates, eliminating hardware propagation delays that would otherwise degrade positioning accuracy and cause material jams.Dual-layer galvanic isolation sets the 140DDO35310​ apart from generic output cards. The 1780 Vrms DC barrier between the output field wiring and the internal bus logic prevents high-voltage line surges, inductive spikes from massive field coils, and accidental short circuits from traveling backward through output wiring and destroying expensive central backplane components. The additional 500 Vrms DC isolation between each of the four channel groups allows engineers to mix independent field power sources on a single card safely—a flexibility that simplifies panel design and lets maintenance teams isolate a faulty power zone without disturbing the others.Comprehensive onboard diagnostics transform troubleshooting from hours of manual probe testing into a visual routine. The 140DDO35310​ continuously tracks circuit health, detecting loss of field power and blown fuse conditions, then surfaces these faults through a dedicated red “F” LED on the faceplate while simultaneously reporting the event to the Quantum processor for centralized alarm management. Combined with the 32 green per-channel status LEDs, the 140DDO35310​ gives maintenance personnel instantaneous visibility into every output point’s state—no software login, no multimeter, no guesswork. The internal 5 A fuse per group provides hardware-level short-circuit protection, limiting fault current and preventing cascade failures across the module.
