Description

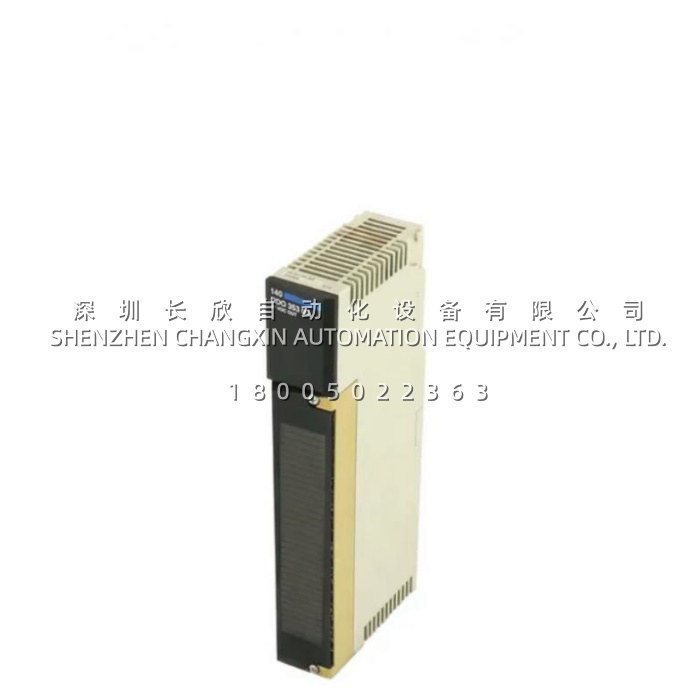

The SCHNEIDER 140DDO35300 is a high-density discrete DC output module from Schneider Electric’s Modicon Quantum series, engineered to drive 24V DC field devices such as relays, solenoid valves, contactors, and indicator lamps in industrial automation systems. This 32-channel transistor output module transforms PLC control signals into robust switching actions for actuator control.

Featuring 32 outputs organized into 4 electrically isolated groups of 8 channels each, the SCHNEIDER 140DDO35300 delivers a total load capacity of 16A (4A per group) with positive logic (source) configuration, making it an efficient and reliable solution for high-density discrete control applications.

Application Scenarios

In a large automotive assembly plant, engineers struggled with space constraints in control cabinets as they expanded their conveyor system. The existing relay-based output solution required multiple modules to handle 32 solenoid valves, consuming valuable rack slots. By deploying the SCHNEIDER 140DDO35300, they consolidated 32 outputs into a single module, freeing up rack space for additional I/O. The transistor-based solid-state outputs of the SCHNEIDER 140DDO35300 delivered ≤1ms switching response—an order of magnitude faster than mechanical relays—enabling precise synchronization of conveyor diverters and reducing product jams. The module’s 4-group isolation architecture also allowed the plant to connect outputs from different 24V power supplies without common-ground issues, simplifying field wiring.

Another typical application is in water treatment facilities where the SCHNEIDER 140DDO35300 controls numerous motor contactors and valve actuators distributed across large filter beds. The module’s built-in group-level 5A fuses and blown-fuse detection provide critical protection against short circuits in field wiring. Maintenance teams can quickly identify a failed output group via the red external fault LED and replace the module without disturbing other circuits—the SCHNEIDER 140DDO35300 supports hot-swap replacement in Quantum racks, minimizing downtime for water treatment operations.

Parameters
