Description

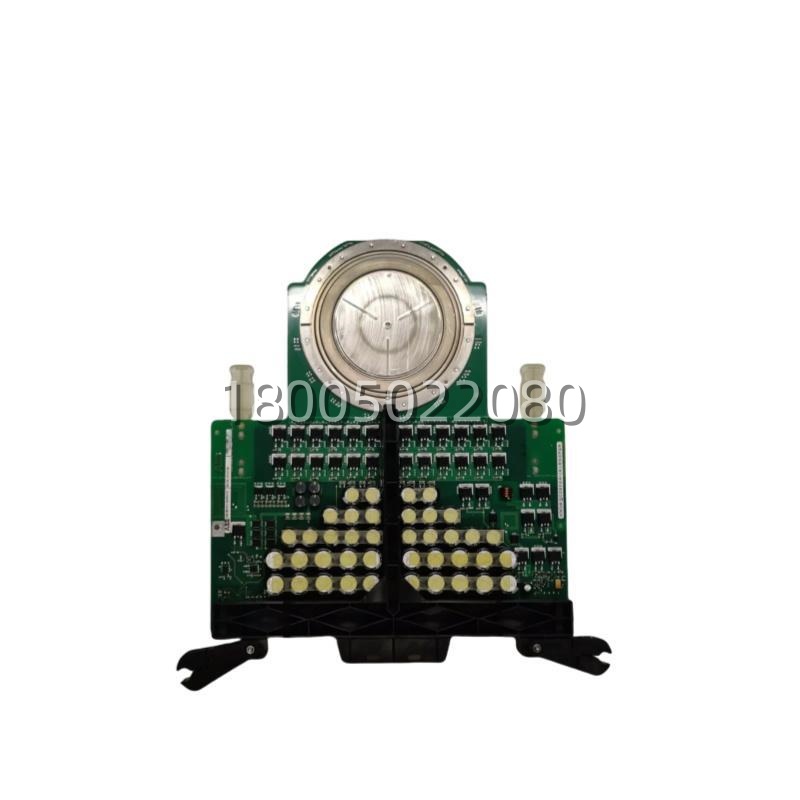

The ABB 3-010751R0101 is a high-power IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module, often referenced interchangeably with the full industrial code 3BHE010751R0101 . This component serves as the core switching and commutation device in medium and high-voltage variable frequency drives, serving as the “heart” of MW-class motor control systems .

Designed as a press-pack device, the ABB 3-010751R0101 delivers exceptional current handling capability with rated currents around 3000A and voltage ratings from 3kV to 12kV, enabling power levels up to 18MW . Its performance bridges the gap between older GTO technology and high-power IGBTs, offering lower conduction losses, high fault current withstand capability, and a robust hermetic package design optimized for demanding industrial environments .

Application Scenarios

In a steel mill’s hot rolling line, a 5MW main drive motor suddenly halts production. The plant’s maintenance engineer opens the ACS6000变频柜 and identifies a failed power module in the inverter section. By replacing it with a verified ABB 3-010751R0101, the production line is restored within a single shift. The mill avoids the typical two-week lead time for a complete drive overhaul, saving hundreds of thousands in downtime costs.

The core pain point addressed by the ABB 3-010751R0101 is the catastrophic failure of the power stage in mission-critical, continuous-process applications. For plants operating ABB ACS6000 series drives on applications like mine hoists, crushers, or rolling mill main stands, having a verified spare IGCT module is essential to ensure Mean Time To Repair (MTTR) stays within hours rather than weeks.

Parameters

Parameter annotations: The 3000A current rating refers to the controllable turn-off current, not a simple DC rating. The μs turn-off time is critical for generating high-quality output waveforms and enabling the fast switching required for motor control. H-Class insulation allows the module to withstand high junction temperatures without compromising performance or safety.

Technical Principles and Innovative Values

Innovation Point 1: Press-Pack Housing with Optimized Gate Design
The ABB 3-010751R0101 is a press-pack device where the silicon wafer is pressed between heatsinks under high pressure for electrical and thermal connection . The latest platform innovations include a peripheral gate ring design that reduces gate-circuit impedance by more than a factor of three . This lowers switching losses and enables higher controllable currents.

Innovation Point 2: High Controllable Current – Record 3600A in Class
The RC-IGCT platform achieves a repetitive turn-off current of 3600A, a record value in its class . During single-pulse operation, the device can control currents exceeding 6000A at junction temperatures of 135°C . This capability allows the ABB 3-010751R0101 to handle severe overloads and fault currents without failure—a critical advantage over IGBTs.

Innovation Point 3: Superior Fault Withstand and Safe Failure Mode
Unlike IGBT modules that can fail short-circuit and damage surrounding equipment, IGCT press-pack devices can potentially handle large fault currents without rupturing . This inherent robustness provides safe failure mode characteristics, protecting the entire power stack from catastrophic cascade failures.

Innovation Point 4: Low Conduction Losses – 10–15% Lower Than IGBT
IGCT technology offers significantly lower ON-state voltage than IGBTs. Depending on the inverter mode, total losses using IGCTs can be 10–15% lower . This translates directly to higher system efficiency, reduced cooling requirements, and lower operating costs for MW-level applications.
