Description:

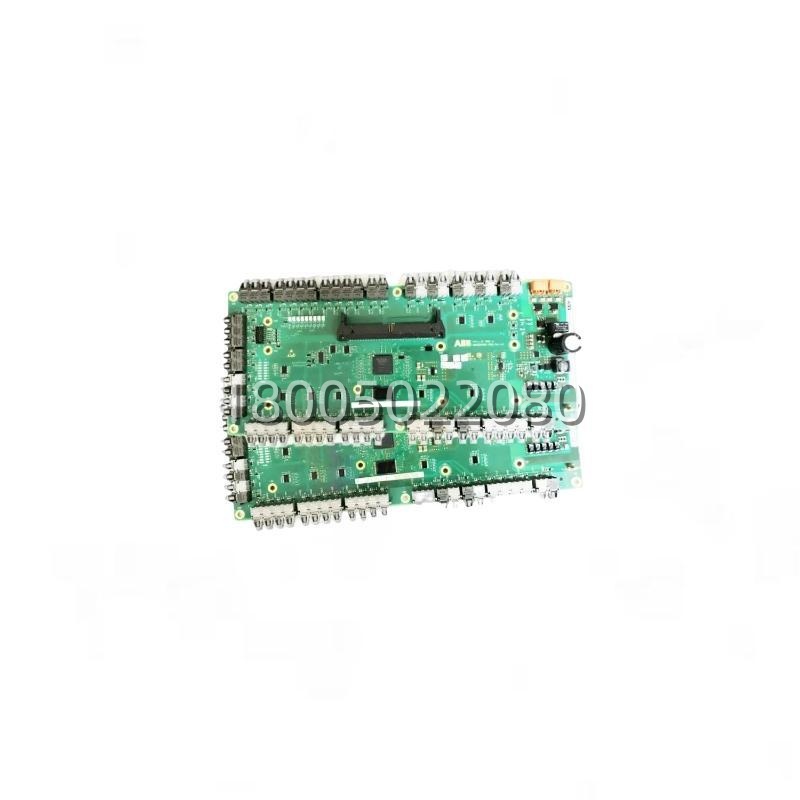

The ABB 3BHB002916R0001, also designated UFC721AE, is a power-section interface and gate-driver communication board used in ABB medium-voltage (HV) frequency converters — principally the ACS 1000 and ACS 6000 series employing IGCT (Integrated Gate-Commutated Thyristor) or high-power IGBT technology. It receives fiber-optic gate-pulse commands from the drive’s control CPU (typically via the CDUM / AMUX / RDCU boards), conditions and distributes the firing signals to the power stack’s gate units, and returns status feedback (desaturation, over-current, temperature) to the controller. The UFC721AE forms the critical safety-rated link between the low-voltage control electronics and the high-voltage inverter section, providing galvanic isolation through fiber optics.h2 Application Scenarios:A mining concentrator’s 3.3 kV slurry-pump drive (ABB ACS6000 SD) tripped on “Power Unit Communication Loss” and “Gate Driver Fault” simultaneously. The control CPU and fiber cables tested good, but the HV inverter section failed to acknowledge firing pulses. The fault was traced to a degraded ABB 3BHB002916R0001 (UFC721AE) interface board whose on-board DC/DC converter supplying the fiber-receiver side had drifted out of tolerance. The board was swapped inside the inverter cubicle with power isolated and after a 15-minute DC-bus discharge wait; the drive re-established link, passed a fiber-loop-back test, and was returned to service. The UFC721AE directly solved the hidden failure mode of “CPU OK but inverter unresponsive” — a classic pain point in MV drives where the interface board is the single point linking control logic to the lethal-voltage power stack. Keeping the 3BHB002916R0001 on the critical-spare shelf prevented an estimated 8-hour unplanned downtime event on a single-train pump.h2
Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | 3BHB002916R0001 (also referenced as UFC721AE) |
| Manufacturer | ABB (ABB Drives / Medium Voltage Drives Division) |
| Product Category | Power-Section Interface / Gate-Driver Communication Board (HV Frequency Converter) |
| Compatible Drives | ABB ACS 1000, ACS 6000 (MV-IGCT / MV-IGBT variants) — verify drive HW revision & power stack type |
| Primary Function | Receives gate-fire / block commands via fiber; distributes to IGCT/IGBT gate units; returns fault/status |
| Communication to CPU | Fiber-optic links (RX/TX) + backplane ribbon to CDUM / RDCU / AMUX control board |
| Isolation | Optical isolation (fibre) between control (< 48 V) and power-section reference (> 3–6 kV) |
| On-Board Features | DC/DC isolated supplies for receiver/transmitter sides, status LEDs, test points, desat/feedback monitoring |
| Mounting Method | Internal inverter cubicle — screwed to standoffs + edge / header connector to gate-driver interface or backplane |
| Operating Temp. | -20 °C to +65 °C (typical drive-cubicle ambient; derating may apply) |
| Protection Rating | IP00 (bare PCB — installed inside enclosed, access-restricted MV drive section) |
| Related Control Boards | CDUM-02 / RDCU-02 / AMUX-11 / RCOM — often replaced/maintained as a set with the UFC721AE |
h2 Technical Principles and Innovative Values:
- Fiber-Optic Galvanic Isolation Between Control & HV Power Stage: The UFC721AE uses fiber-optic receivers/transmitters to completely decouple the 5 V / 24 V control-domain electronics from the kilovolt-level potentials present on the IGCT/IGBT gate-driver side. This eliminates ground-loop and common-mode transient paths that could otherwise destroy the control CPU during a power-section fault — a fundamental safety and reliability feature in medium-voltage drives.
- Bidirectional Status Reporting for Fast Fault Reaction: Beyond firing-pulse distribution, the 3BHB002916R0001 continuously monitors gate-unit feedback (desaturation detection, under-voltage on gate supplies, overtemperature) and reports anomalies back to the RDCU/CDUM within one PWM cycle. This enables the drive to block pulses and trip the main contactor before device damage occurs — a key protective function not present on simpler trigger boards.
- Designed for Hot-Section Environment & Long Life-Cycle: Components on the ABB UFC721AE are selected for high-temperature rating and conformal-coated (on later revisions) to resist conductive dust or humidity ingress in harsh MV-drive lineups. The board is mechanically keyed to prevent incorrect seating in the interface header — reducing commissioning errors during field replacement.
