Description:

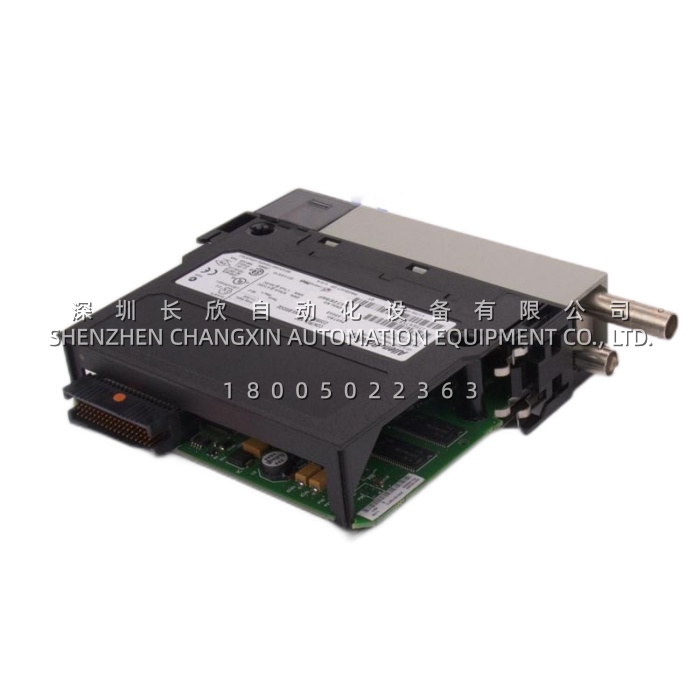

The 1756-HSC is a two-channel high-speed counter module in the Allen-Bradley 1756 ControlLogix family, manufactured by Rockwell Automation for direct, controller-independent counting of fast pulse-train signals in industrial automation systems. Each counter accepts three inputs (A, B and Z for gate/reset) and drives two sourcing DC outputs per channel, so one single-slot module captures quadrature encoder, proximity-sensor and photoelectric feedback at up to 1 MHz in counter mode while delivering high-speed output control in parallel.roccommerce.net+1

Configured natively inside Studio 5000 Logix Designer and occupying one standard 1756 chassis slot, the 1756-HSC offloads pulse accumulation, frequency measurement and preset-triggered output switching from the controller scan cycle — protecting count integrity on applications where even a single lost pulse is unacceptable.rockwellautomation.com

Application Scenarios:

Picture a high-speed converting line producing perforated film rolls: a rotary encoder feeds 4 000 pulses per revolution into the control system, and a knife must fire within a fixed number of counts — every pass, every shift, without dropping a pulse. The engineering pain points are instantly recognizable to anyone who has tried to wire a fast pulse train into a standard digital-input card: scan-cycle latency that misses pulses at high frequency, count rollover errors, no hardware-based preset triggering, and a knife output that fires late because the controller was busy with other tasks. The 1756-HSC was engineered precisely for this class of application — pulse counting happens entirely on the module at up to 1 MHz in counter mode (250 kHz in encoder X4 mode), the Z input provides hardware gate/reset without controller intervention, and the four sourcing outputs fire on preset values set directly in the module’s configuration, independent of controller scan timing.roccommerce.net+1

The 1756-HSC therefore becomes the natural choice for flow totalizers on turbine meters, length-cut counters on rotary shears, batch counters on bagging machines, overspeed detection on rotating equipment, and registration tracking on print-and-apply labelers — anywhere the pulse train is faster than a standard DC input module can reliably catch, and anywhere a hardwired preset output is needed without PLC latency.industrialmonitordirect.com+1
