Description:

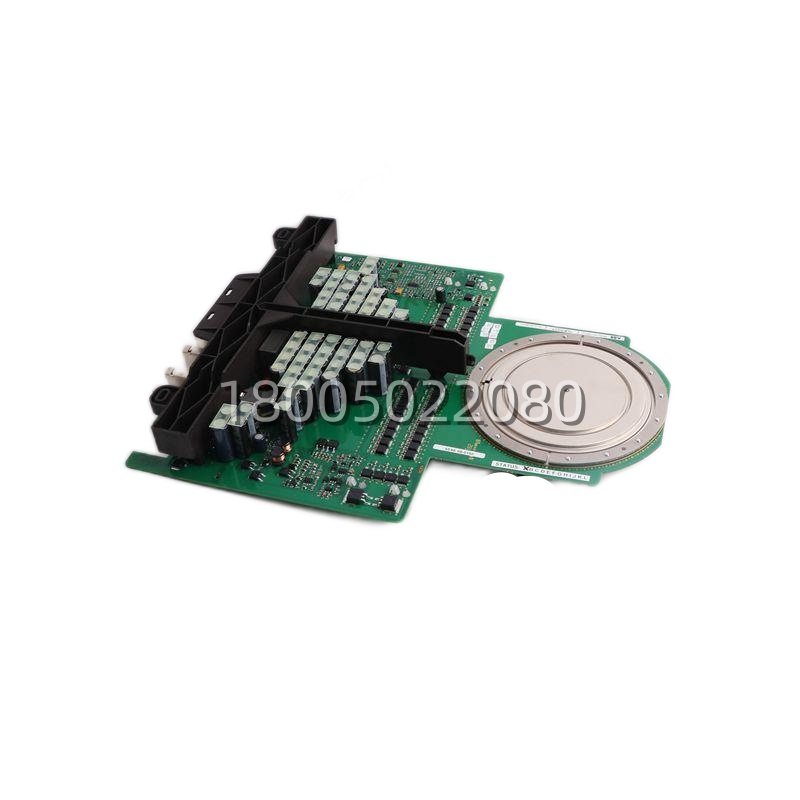

The ABB 3BHB003154R0101 (commercially referenced as 5SXE04-0150) is the Gate Driver / Interface Module (GDM) designed to work in tandem with the ABB 5SHX1960L0004 — a 4500 V / ~400 A Press-Pack Integrated Gate-Commutated Thyristor (IGCT). Together they form the complete IGCT Power & Control Assembly used in ABB ACS 1000 / ACS 6000 medium-voltage AC drives and HVDC Light converter valve stacks. The 5SXE04-0150 receives fiber-optic firing commands from the converter master control, generates the precisely shaped gate-current pulse for the 5SHX1960L0004, monitors desaturation / undervoltage / overtemperature, and reports status back to the control system — providing the critical link between the digital control world and the high-power semiconductor switching the multi-megawatt load.
Application Scenarios:
In a 7 MW cement-mill main drive powered by an ABB ACS6000 three-level NPC inverter, each phase-leg contains multiple 5SHX1960L0004 IGCTs, each paired with a 3BHB003154R0101 (5SXE04-0150) gate unit. After 15 years of service one phase-leg began logging intermittent “IGCT Gate Supply Undervoltage” — traced to degraded DC/DC converter components on the gate board. Because the IGCT itself tested healthy, only the gate unit needed replacement. The maintenance team isolated the converter, discharged the DC link, unclipped the fiber leads and gate-board power pigtail, extracted the old 5SXE04-0150 from its card-guide, installed the new 3BHB003154R0101, reconnected fibers (verifying Tx/Rx polarity), and re-ran the built-in gate-pulse test. All three phase-legs passed, the inverter resumed full 6-pulse operation, and the alarm cleared permanently — saving the cost and lead time of a full IGCT stack replacement. This illustrates the value of stocking both the 5SHX1960L0004 IGCT and its matching 3BHB003154R0101 gate driver as separable service items.
Note: When the IGCT itself is also being replaced, the 5SHX1960L0004 press-pack must be re-torqued to ABB’s specified clamping force in the phase-leg heat-sink assembly; the gate unit board is a plug-in item that rides alongside it.
Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model (Gate Unit) | 3BHB003154R0101 (Type: 5SXE04-0150 / GDM) |
| Paired IGCT Model | 5SHX1960L0004 (Press-Pack IGCT, 4500 V, ~400 A avg / 1600 A peak) |
| Manufacturer | ABB (ABB Semiconductors / Drives & MV Systems) |
| Product Category | IGCT Gate Driver & Interface Module + Matching IGCT Power Semiconductor (Assembly) |
| IGCT Voltage Rating | 4500 V (blocking voltage VDRM) |
| IGCT Current Rating | 400 A (average @ 70°C case), 1600 A (surge / non-repetitive) |
| Gate Unit Supply | 24 V DC (typical, from converter cubicle 24 V DC PSU) |
| Gate Unit Interface | Fiber-optic Rx (firing cmd), Fiber-optic Tx (status/fault), backplane bus to converter ctrl |
| Gate Pulse Capability | 15–20 A peak gate current, μs-scale rise/fall — matched to IGCT turn-on/turn-off requirements |
| Protection Functions | Desaturation (VCEmonitor), gate-supply UV/OV, overtemp, fiber-loss detection, self-test |
| Isolation | ≥ 2500 V AC (logic ↔ gate-drive); fiber-optic galvanic isolation to master ctrl |
| Mounting (Gate Unit) | Card-guide / slot in inverter cubicle or DIN-rail adapter; (IGCT: press-pack clamped between heat-sink & clamp plate) |
| Operating Temperature | 0 °C to +60 °C (gate unit); –40 °C to +125 °C (IGCT junction/storage per datasheet) |
| Dimensions (Gate Unit) | Approx. 180 × 120 × 25 mm (H × W × D), Weight ≈ 0.30 kg |
| Certifications | CE, UL (per drive system certification), RoHS-compliant |
Technical Principles and Innovative Values:
- Innovation Point 1: Hard-Turn-Off IGCT with Matched Gate Driver Timing. The 5SHX1960L0004 is a true hard-turn-off device (unlike a conventional thyristor), and the 3BHB003154R0101 (5SXE04-0150) is specifically tuned to deliver the high-peak negative gate current required for sub-microsecond turn-off. This combination eliminates the need for a forced-commutation circuit, shrinking inverter size and improving efficiency vs. GTO-based designs.
- Innovation Point 2: Fiber-Optic Command with Integrated Desaturation Protection. All firing commands and status acknowledgements between the converter controller and the 3BHB003154R0101 travel via fiber, completely immune to ground loops and EMI. The gate unit continuously monitors the IGCT’s anode–cathode voltage during conduction; on detecting desaturation (overcurrent / failed turn-on), it initiates a controlled soft turn-off and reports the fault — protecting the very expensive press-pack semiconductor.
- Innovation Point 3: Built-In Self-Test & Per-Channel LEDs for Field Diagnosis. On power-up the 5SXE04-0150 runs an internal check of its DC/DC converter, fiber receiver, and gate-driver stage; results are shown on front-panel LEDs (PWR, Ready, Fault, Fiber Activity). This lets technicians confirm gate health without oscilloscopes — a major time-saver during unplanned outages in remote or 24×7 plants.
