Description

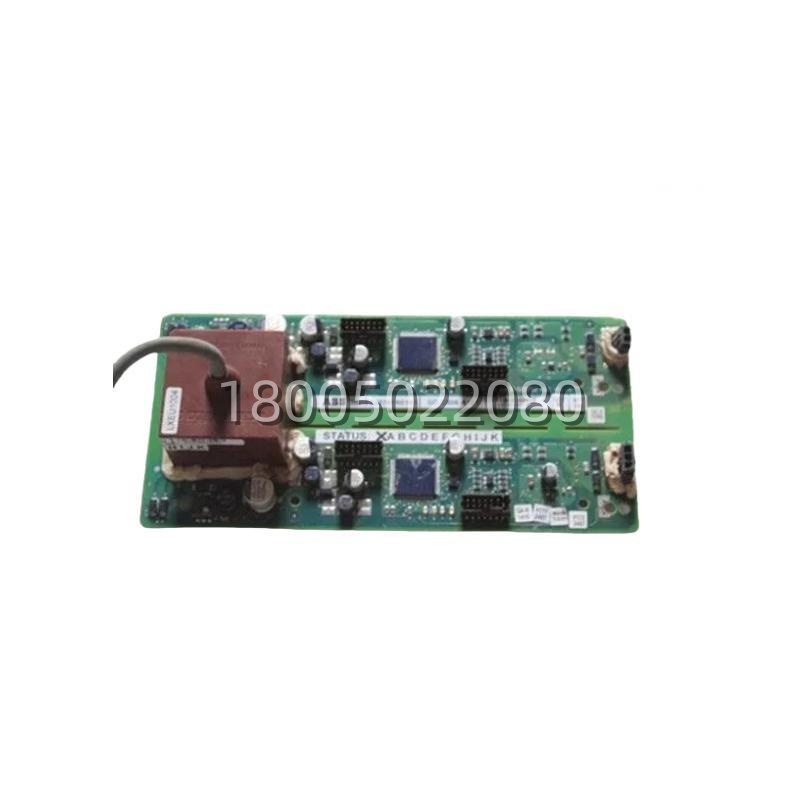

The 3BHE02876R0101 is an Inverter Control / Interface Board (often an IGCT Gate-Driver Interface or Inverter Regulation PCB) manufactured by ABB, designed for use inside ABB ACS6000 (3-level NPC) and PCS6000 Medium-Voltage (MV) Drive power sections. It provides the critical link between the fiber-optic gate commands from the drive controller and the high-power IGCT (Integrated Gate-Commutated Thyristor) or IGBT modules in the inverter stack — generating firing pulses, monitoring device voltage/current, and reporting faults back to the central control unit via optically isolated links.
Application Scenarios
Picture a 10 MW mine-hoist drive built around an ABB ACS6000 MV inverter. During a planned maintenance check the drive logs a “Gate-Drive Communication Lost” alarm on one inverter phase and refuses to close the main contactor. Diagnostics trace the fault to a degraded inverter-interface board — the 3BHE02876R0101 — whose on-board FPGA has weakened after 16 years of thermal cycling. Replacing the entire MV cubicle would mean a crane-out and week-long outage. Instead, during a scheduled hoist down-day the drive technician isolates the converter, opens the power-section door, extracts the suspect PCB from its guide rails / backplane, installs a verified 3BHE02876R0101 matching the same hardware revision (R0101), and powers up. The drive passes the built-in gate-driver self-test, the inverter arms re-enable, and the hoist returns to service — total intervention under 90 minutes with zero disturbance to the high-voltage busbars or water-cooling loops. The 3BHE02876R0101 directly solves the legacy-MV-drive spares gap for plants extending the certified life of proven ABB high-power assets.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 3BHE02876R0101 (Alt. Ref: 3BHE 02876 R0101) |
| Manufacturer | ABB |
| Product Category | Inverter Control / Gate-Driver Interface Board (IGCT / IGBT Power Section Interface PCB) |
| Associated Equipment | ABB ACS6000 (ACS6000-17 / -07 etc.), PCS6000 MV Drives, select IGCT-based inverter cubicles |
| Core Function | Receives fiber-optic firing commands from controller → generates gate-drive signals; monitors IGCT/IGBT VCE/ desaturation; reports faults via fiber back to controller |
| Signal Interface | Multi-fiber TX/RX ports (ABB proprietary firing protocol); optional backplane parallel bus for voltage/temp feedback |
| Gate-Drive Supply (Typical) | Derived from isolated gate-driver DC/DC converter on power section (±15 V / ±24 V depending on IGCT generation) |
| Isolation | Optical isolation ≥ 10 kV between LV control side and MV power side (fiber-optic links + galvanic isolation on onboard DC/DC) |
| Onboard Features | Status LEDs (Fiber Sync / Fault / Ready), FPGA/ASIC for pulse distribution & dead-time control, watchdog timer |
| PCB Construction | Multilayer FR-4 with controlled-impedance fiber-optic receiver footprints, gold-flashed backplane connector |
| Operating Temp. | -20 °C to +60 °C (extended -40 °C to +70 °C on select revisions — verify per drawing) |
| Mounting | Guide-rail or backplane slot inside inverter control compartment; secured by captive screws / ejector levers |
| Dimensions (Approx.) | 180 × 140 mm (typical — exact per ABB drawing for 3BHE02876 series) |
| Weight (Approx.) | 0.25–0.40 kg |
| Related ABB Codes | Often sourced with 3BHE01857x (Regulator Board), 3BHL000xxx (IGCT Gate Unit), 3BSExxx (AC800PEC controller) |
Technical Principles and Innovative Values
- Innovation Point 1 — Fully Optically Isolated Gate Command & Feedback: The 3BHE02876R0101 receives firing pulses and returns IGCT-desaturation / overcurrent flags via fiber-optic links — completely eliminating ground-loop and EMI coupling between the MV power section (several kV switching) and the low-voltage controller. This is critical for reliable operation in 3-level NPC inverters where a single false trigger can cause DC-link shoot-through.
- Innovation Point 2 — Integrated Desaturation Detection & Hardware Interlock: The board continuously monitors the IGCT/IGBT collector-emitter voltage during the on-state. If VCEexceeds the desaturation threshold (indicating a failed turn-on or short-circuit), the 3BHE02876R0101 initiates a soft-off sequence and immediately reports the fault to the controller — typically within < 2 µs — protecting the MV power semiconductors from destructive current runaway.
- Innovation Point 3 — Auto-ID & Plug-Compatibility with ACS6000 Backplane: The PCB carries an EEPROM storing its hardware revision (R0101) and function code. On insertion the AC800PEC / inverter controller auto-detects the board type and validates firmware compatibility — no DIP-switch setting required. This makes the 3BHE02876R0101 a true “board-swap” spare that any competent MV-drive technician can install during a planned outage.
Application Cases and Industry Value
A European cement producer operates an ABB ACS6000 MV drive on its 5.2 MW finish-mill fan. After 14 years of service the drive began failing the power-on self-test with “Inverter Board Comm Error — Slot 2”. The fault was isolated to the middle-phase 3BHE02876R0101. Rather than schedule a full drive retrofit the plant procured a tested replacement board.During the next kiln stop the cover was opened, the old PCB withdrawn from the inverter-control backplane, the new 3BHE02876R0101 seated, and power restored. The drive passed all gate-driver and fiber-link tests, the main contactor closed, and the mill fan ramped up normally. The plant’s drive specialist commented: “The 3BHE02876R0101 was plug-and-play — same connector, same LED behavior. We were back in 40 minutes. That one board saved us a week-long shutdown and a six-figure drive change.”The intervention extended the ACS6000’s expected service life by an estimated 8–10 years and preserved the existing CT/VT wiring, settings file, and harmonic-filter tuning.
Related Product Combination Solutions
- ABB ACS6000 / PCS6000 MV Drive Inverter Cubicle (with IGCT Power Stack) — The host converter whose gate-driver chain includes the 3BHE02876R0101 as the control-side interface; verify frame size & software version compatibility.
- ABB AC800PEC / Drive Controller (e.g., 3BSE018157R1 PM8xx-PEC) — The motion-/drive-controller that sends firing patterns to, and receives fault flags from, the 3BHE02876R0101 via fiber optic.
- ABB IGCT Gate Units / Driver Cards (e.g., 3BHE018571R0101, 5SHY… series IGCTs) — The high-voltage gate-driver modules physically mounted on the IGCTs and linked to the 3BHE02876R0101 by fiber cables.
- ABB 3BHE028758R0101 / 3BHE018057 (Regulator / Voltage-Control Boards) — Adjacent inverter-control boards in the same compartment; often sourced together for a complete inverter-electronics refurbishment.
- ABB 3BHB / 3BHL DC-Link Capacitor Banks & Snubber Circuits — The power-section passive components protected by the desaturation detection logic of the 3BHE02876R0101.
- ABB Fiber-Optic Patch Cables (drive-specific P/N, e.g., 3BSE018139R… ) — Used to interconnect the 3BHE02876R0101 with the AC800PEC and gate units; typically replaced if fibers show attenuation > specified limit.
