Product Overview

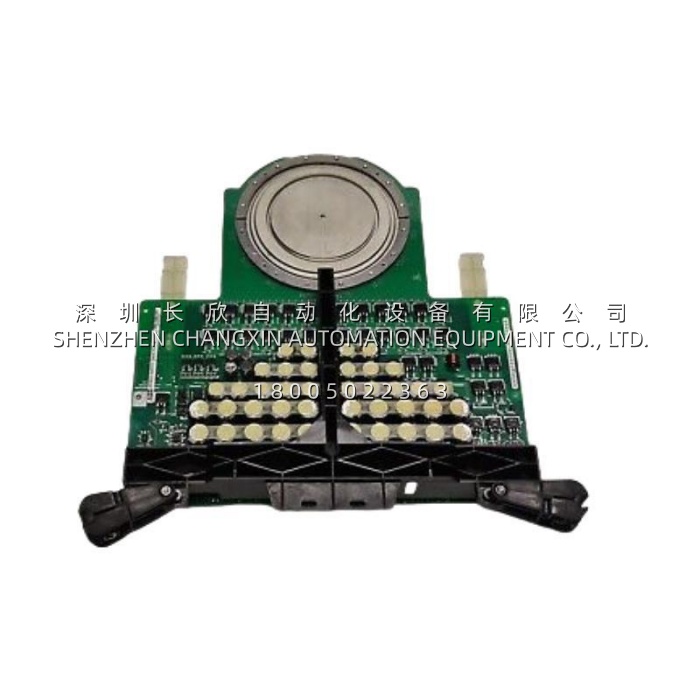

The ABB 5SHX2645L0004 is a high-performance Reverse-Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) power semiconductor module, engineered by ABB Power Semiconductors as a core switching component for medium and high-voltage power conversion systems. This Press-Pack module is a critical power element within ABB’s ACS6000 series medium voltage drives and other demanding industrial applications, serving as the main switch device that performs rapid turn-on and turn-off of high currents at voltage levels up to 4500V. The ABB 5SHX2645L0004 integrates the IGCT switching function with an antiparallel reverse diode in a single, compact package, enabling efficient power conversion with minimized system footprint.

Based on ABB’s innovative “hard-drive” gate control concept, the ABB 5SHX2645L0004 combines the low conduction loss advantage of a thyristor with the fast, controllable turn-off capability of a transistor. The module is typically paired with a dedicated gate driver unit (such as the 3BHB003154R0101) and uses fiber optic trigger signals to achieve full electrical isolation between the high-voltage power section and low-voltage control electronics. With its 4500V blocking voltage and approximately 2645A continuous forward current rating, the ABB 5SHX2645L0004 is designed for high-power density applications requiring exceptional reliability. The Press-Pack design features a fail-to-short-circuit failure mode, ensuring that in the event of a device failure, the module does not create a direct short circuit across the DC bus, thus providing an additional layer of system safety and valuable time for maintenance intervention.

Technical Specifications

Main Features and Advantages

High-Power Density and Advanced IGCT Technology: The ABB 5SHX2645L0004 leverages the advantages of integrated gate-commutated thyristor technology to deliver outstanding power handling capabilities. With its 4500V blocking voltage and high current rating, the ABB 5SHX2645L0004 can handle enormous amounts of power in a compact form factor, supporting high-power density system designs. The module’s low conduction and switching losses, which are approximately 40-50% lower than those of conventional power semiconductors, contribute to superior energy conversion efficiency. The device is optimized for medium-frequency applications, striking an ideal balance between switching speed and power throughput.

Press-Pack Reverse-Conducting Design: A key advantage of the ABB 5SHX2645L0004 is its Reverse-Conducting (RC) design, which integrates an antiparallel diode within the same Press-Pack package. This integration eliminates the need for a separate external diode, simplifying the power stack and reducing parasitic inductance, which enhances overall switching performance and reliability. The Press-Pack housing is engineered for double-sided forced water cooling, ensuring effective thermal management even under the most demanding continuous load conditions. The robust construction also provides a “fail-to-short” mode that prevents dangerous DC bus short circuits in the event of device failure, significantly improving the safety and availability of the overall system.

Advanced Gate Drive and Snubberless Operation: The ABB 5SHX2645L0004 is designed around the “hard-drive” gate principle, requiring a dedicated, low-inductance gate driver unit that is mechanically integrated with the module for optimal performance. The use of a fiber optic interface for trigger signals ensures robust electrical isolation, making the ABB 5SHX2645L0004 immune to high-voltage transients and electromagnetic interference (EMI) common in industrial environments. A significant benefit of this technology is the ability to operate without a turn-off snubber circuit in many applications, dramatically simplifying the power stack design and reducing component count, weight, and cost. This snubberless operation, a hallmark of ABB’s IGCT family, makes the ABB 5SHX2645L0004 a highly efficient and reliable switching solution for high-power converters.
