Product Overview

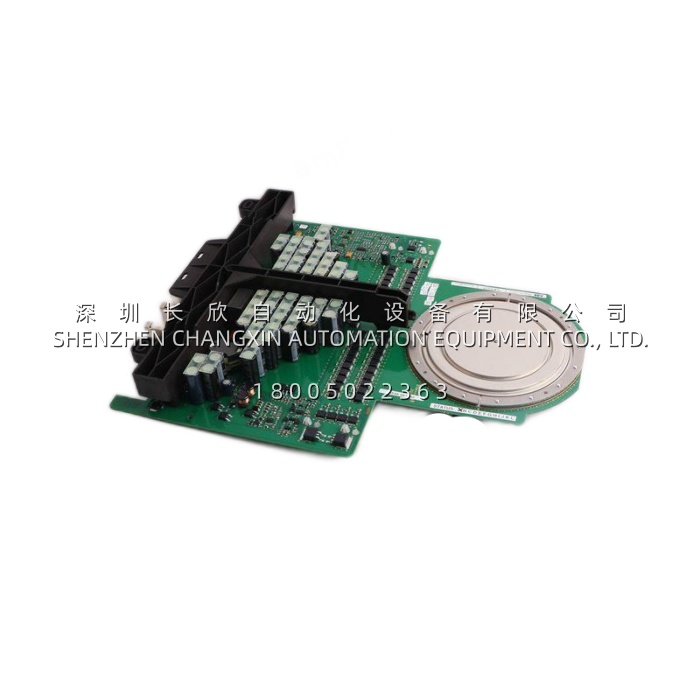

The ABB 5SHY6545L0001, comprising the main power semiconductor device, drive board 5SXE10-0181, and control board AC10272001R0101, is a high-power IGBT (Insulated Gate Bipolar Transistor) module engineered by ABB for the most demanding industrial power conversion applications . As a core component of ABB’s renowned 5SHY series, this module is specifically designed for integration into high-voltage, high-current systems such as the ACS800 series medium-voltage drives, serving as the critical power stage that performs the AC-DC-AC conversion essential for variable speed motor control . The ABB 5SHY6545L0001 delivers exceptional energy efficiency and precise power management for heavy-load applications.

The module leverages advanced trench-gate field-stop (Trench-FS) IGBT chip technology, significantly reducing conduction and switching losses while improving overall system efficiency . The 5SXE10-0181 drive board provides dedicated gate driving and comprehensive protection functions, including short-circuit, overvoltage, and undervoltage lockout, ensuring the ABB 5SHY6545L0001 operates within safe parameters at all times . The AC10272001R0101 control board offers intelligent monitoring and management, delivering real-time operational status feedback to the host system to support predictive maintenance strategies . This complete power solution exemplifies ABB’s engineering excellence.

Engineered with a robust aluminum alloy housing and advanced thermal management utilizing ceramic substrates, the ABB 5SHY6545L0001 delivers superior heat dissipation and mechanical stability even under continuous full-load operation . Its rugged construction ensures reliable performance across a wide operating temperature range of -40°C to +125°C, making it the trusted power conversion backbone for mission-critical equipment in the most challenging industrial environments .

Technical Specifications

Main Features and Advantages

High-Power Density and Ultra-Low Losses:
The ABB 5SHY6545L0001 employs state-of-the-art IGBT chip technology with a trench-gate field-stop design, delivering exceptionally low on-state voltage drop and minimized switching losses . This translates directly into higher system efficiency (typically ≥97%) and reduced thermal stress on the module, enabling more compact system designs . The optimized internal layout ensures excellent current balancing and uniform heat distribution across all integrated chips, maximizing the operational lifespan of the ABB 5SHY6545L0001 in continuous heavy-duty service.

Advanced Gate Drive and Protection (5SXE10-0181):
The 5SXE10-0181 drive board is precisely matched to the IGBT characteristics, providing the optimal gate voltage and current for fast, reliable switching . It incorporates a comprehensive suite of protection features, including short-circuit protection capable of responding within microseconds, overvoltage clamping, and undervoltage lockout. An optical fiber interface provides galvanic isolation between the low-voltage control logic and the high-power section, ensuring operator safety and control system integrity. The intelligence of the 5SXE10-0181 allows the ABB 5SHY6545L0001 to withstand harsh grid disturbances and transient overloads without failure .

Intelligent Control and System Monitoring (AC10272001R0101):
The AC10272001R0101 control board completes the solution, providing a centralized platform for system monitoring and fault diagnosis. It continuously tracks key parameters of the ABB 5SHY6545L0001 and transmits real-time data to the higher-level DCS or PLC system . This supports condition-based maintenance strategies, significantly reducing the risk of unplanned downtime. The board’s modular design and standardized interfaces simplify integration and facilitate rapid field replacement, keeping your high-power systems running with maximum uptime.

Application Fields

The ABB 5SHY6545L0001 is the power core for applications demanding the highest levels of reliability and performance in megawatt-scale power conversion. In the metals and mining industries, the ABB 5SHY6545L0001 is widely deployed in ACS800 series drives for high-power mill motors, mine hoists, and rolling mill drives, delivering precise torque and speed control essential for product quality and process efficiency . The module’s high overload capability ensures uninterrupted operation under peak load conditions.

In the energy sector, the ABB 5SHY6545L0001 is a critical component for powering the transition to renewable sources. Wind turbine converters, particularly in offshore applications, rely on the ABB 5SHY6545L0001 for its robust thermal cycling capability and high reliability to maximize energy capture and minimize maintenance costs . It is also found in large solar PV inverters and high-voltage DC (HVDC) transmission systems, where its low-loss characteristics improve overall grid efficiency and stability .

For heavy industries such as petrochemicals and water treatment, the ABB 5SHY6545L0001 is used in large-capacity pump and compressor drives, enabling energy savings of up to 30% compared to traditional throttle control methods . For system integrators and maintenance teams, the ABB 5SHY6545L0001, 5SXE10-0181, and AC10272001R0101 combination represents a proven, reliable solution that simplifies power stage design, reduces inventory requirements, and provides a clear upgrade path for existing ABB drive systems.
