Product Overview

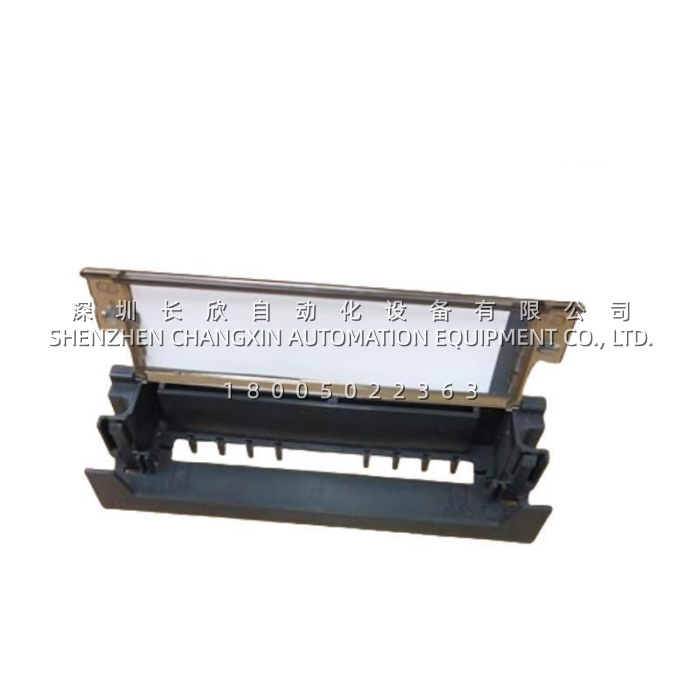

The Honeywell 900TNF-0001​ is a filler block terminal cover for the Honeywell ControlEdge HC900​ process and safety controller platform — a purely mechanical accessory whose job is to close off I/O positions that are not populated with a module. Per the HC900 installation procedure, in every slot location not occupied by an I/O module, a filler block cover, part number 900TNF-0001, must be installed. That single line in the manual exists because a modern HC900 rack is almost never delivered full: systems are specified with spare capacity for future expansion, for a later process addition, or simply because the I/O count rounds up to the next rack size. Every one of those empty positions leaves an opening into the backplane area and an exposed terminal footprint, and the Honeywell 900TNF-0001​ is the engineered answer to both problems.Physically, the Honeywell 900TNF-0001​ closely resembles an I/O terminal block assembly, except that it does not include the wire-terminating screw block. It mounts in exactly the same way as a terminal block, using captured screws at the top and bottom, so it drops into the same mechanical interface without adapters or modification. Because it is moulded to the same profile as the modules and terminal blocks around it, a rack dressed with filler blocks presents a continuous, flush surface rather than a row of gaps — which is not merely cosmetic, since a continuous surface is what keeps the enclosure’s intended protection rating intact and stops debris falling into the rack.The value of the Honeywell 900TNF-0001​ is best understood in terms of what it prevents rather than what it does. It is a non-conductive, flame-retardant barrier between a technician’s fingers or a dropped screw and the live terminals and bus connections that sit behind an unused slot. It is a seal against conductive dust, metal swarf, oil mist and humidity finding their way onto the gold-plated backplane contacts of adjacent modules — a contamination path that produces exactly the kind of intermittent, hard-to-reproduce channel fault that costs the most to diagnose. And it is a mechanical shield for the backplane connector itself during work on neighbouring modules. As a genuine Honeywell accessory with no electronic components, it requires no configuration, no addressing and no maintenance for the life of the installation.

Technical Specifications

Main Features and Advantages

Personnel safety through touch protection: The primary reason to fit a Honeywell 900TNF-0001​ is that an empty slot in a live rack is an opening through which a technician can reach conductive parts. During panel inspection, wiring of an adjacent module, or routine thermography, a hand, a screwdriver or a loose ferrule can bridge terminals that were never intended to be accessible. By physically blocking access, the Honeywell 900TNF-0001​ implements the touch-protection requirement that electrical codes treat as mandatory rather than optional, and it does so with a component designed by the same manufacturer to the same dimensional tolerances as the rest of the rack.Contamination control that prevents the faults nobody can find: Industrial control rooms and plant enclosures contain conductive dust, metal shavings from panel drilling, oil mist from nearby machinery and humidity. An open slot is a direct path for those contaminants to settle on the gold-plated backplane contacts or the terminal strips of adjacent modules, where they create resistive leakage paths, corrosion and eventually intermittent channel faults. These are the worst class of failure in process automation — the kind that clears before a technician arrives and costs days of investigation. The Honeywell 900TNF-0001​ closes that path, and because it is moulded to match the module profile, there are no gaps around it for debris to work into.Preserves airflow, panel integrity and heat-rise derating: HC900 installations have placement guidelines tied to heat rise, and a row of open slots changes the airflow behaviour inside the cabinet compared with a dressed rack. Installing Honeywell 900TNF-0001​ filler blocks restores the intended internal geometry, keeping cooling air moving across the populated modules rather than short-circuiting through empty bays. The result is a rack that behaves thermally as designed and a cabinet interior that remains tidy, labelled and serviceable — practical considerations that matter enormously during an outage when several people are working in the same panel.Material and construction appropriate to the environment: The Honeywell 900TNF-0001​ is moulded from a high-impact, flame-retardant thermoplastic. That specification is not incidental: in the event of an electrical fault in an adjacent module, the filler block must not contribute fuel or propagate flame, and it must not become a conductive path itself. It also withstands the ambient temperature range and humidity typical of an industrial control cabinet without embrittlement or distortion, so it remains effective for the life of the installation rather than needing periodic replacement.
