Product Overview

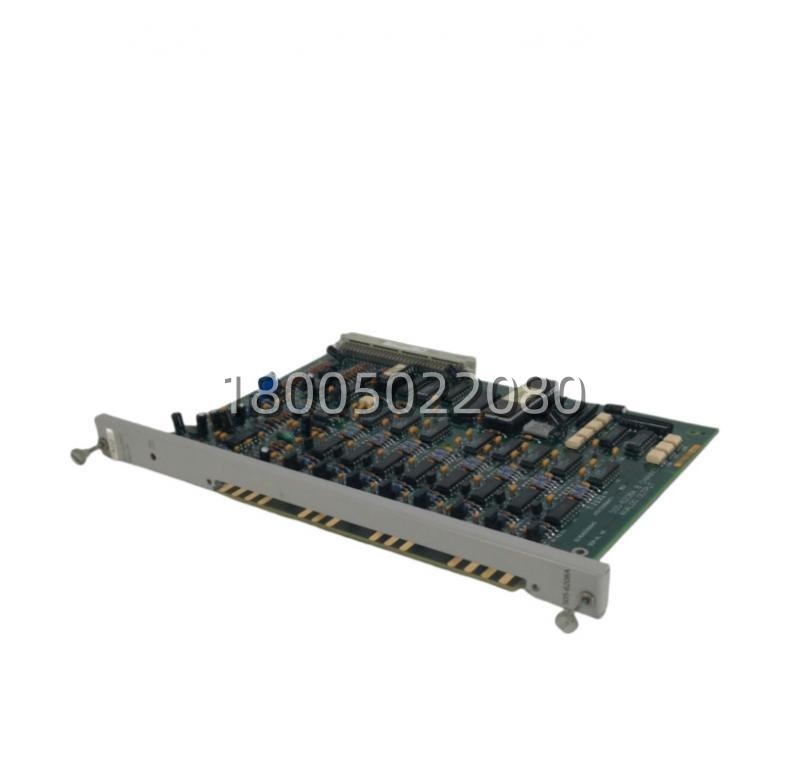

The Siemens 505-6208 is a fundamental 16-channel digital output module designed for the legacy yet widely deployed SIMATIC S5-100U and S5-101U programmable logic controller systems. This module serves as a critical interface between the PLC’s internal logic and the physical actuators in an industrial environment, converting low-voltage control signals from the central processing unit into switched power to operate devices such as solenoid valves, contactor coils, indicator lamps, and small relays. The Siemens 505-6208 exemplifies the modular and robust design philosophy of the SIMATIC S5 series, providing a reliable and cost-effective solution for discrete control tasks. It is installed directly into the I/O rack of an S5-100U/101U system, where it communicates over the proprietary backplane bus, receiving output data from the CPU’s process image. Each of its 16 channels is capable of independently switching a load, allowing for the control of multiple field devices from a single, compact module.As a core component in countless automation systems installed from the 1980s through the early 2000s, the 505-6208 played a vital role in machine control, process automation, and manufacturing lines. Its design prioritizes simplicity, durability, and ease of use. The module features LED indicators for each output channel, providing instant visual status of the switching state, which is invaluable for commissioning and troubleshooting. The electrical design incorporates protection features such as short-circuit protection on outputs (typical for solid-state versions) and suppression circuits for inductive loads, enhancing the longevity of both the module and the connected devices. While newer generations like the S7-1200/1500 have largely succeeded the S5 platform, a vast installed base of Siemens 505-6208 modules continues to operate reliably in facilities worldwide. Understanding, maintaining, and sourcing this module remains essential for supporting the lifecycle of these enduring automation systems, ensuring continued operation and facilitating controlled migration strategies.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 505-6208 |
| Manufacturer | Siemens AG |
| Product Type | 16-Channel Digital Output Module |
| System Compatibility | SIMATIC S5-100U, S5-101U |
| Output Type | Typically solid-state (transistor) or relay; specific variant determines type |
| Output Voltage | 24 VDC (for common transistor versions) |
| Rated Load Current per Channel | Typically 0.5 A |
| Total Current per Group / Module | Limited (e.g., 2A per group, 4A total module) |
| Switching Frequency (Transistor) | Up to 100 Hz |
| Power Loss | Typically 3-6 W |
| Electrical Isolation | 500 V AC (between backplane and channels) |
| Number of Channels | 16, typically in groups of 8 |
| Connection Type | Removable screw-type terminal block (front connector) |
| Status Indication | Green LED per channel for “output active” |
| Operating Temperature | 0 °C to 60 °C |
Main Features and Advantages
High-density, reliable switching performance: The primary function of the Siemens 505-6208 is to provide dependable switching for a multitude of field devices. With 16 independent output channels in a single module slot, it offers excellent space efficiency within the control cabinet. The module is engineered for industrial durability, capable of driving typical loads like solenoid valves (24V DC coils) and small contactors directly. For transistor-based versions, the fast switching speed (up to 100 Hz) enables applications requiring rapid pulse output. Each channel is designed with robust electronic components to handle the transient voltages and inrush currents associated with inductive loads, which are common in industrial settings. This built-in ruggedness translates to high mean time between failures (MTBF) and dependable long-term operation, a key reason for the longevity of S5 systems utilizing the 505-6208.Simplified diagnostics and maintenance: Ease of use and maintenance was a cornerstone of the SIMATIC S5 system design. The 505-6208 module features a prominent green LED for each of its 16 output channels. When an output is energized by the PLC program, the corresponding LED illuminates, providing immediate and clear visual confirmation of the module’s commanded state at the I/O level. This simple yet powerful diagnostic tool allows technicians to quickly differentiate between a software/logic issue (LED is on but device isn’t working) and a hardware/wiring issue (LED is off or on but device has no power). The use of a front-mounted, removable terminal block greatly simplifies wiring and module replacement. Wiring is connected to the terminal block first, which can then be snapped onto the module. If the Siemens 505-6208 module itself needs to be replaced, the terminal block can be detached without disturbing the field wiring, significantly reducing downtime during maintenance.Proven design and broad compatibility: As a standard component of the vast SIMATIC S5 ecosystem, the 505-6208 benefits from decades of proven performance in virtually every industry. Its specifications and behavior are well-documented and understood by a generation of automation professionals. The module is fully integrated into the S5 hardware configuration and programming environment (STEP 5), where it is addressed seamlessly as part of the process image. This deep compatibility ensures stable and predictable operation. For facilities with an existing S5-100U/101U infrastructure, the 505-6208 represents a known and reliable component. Its availability, whether as new old stock or refurbished units, supports the ongoing maintenance and lifecycle extension of critical machinery, protecting capital investments and ensuring operational continuity while migration to newer platforms is planned and budgeted.
