Product Overview

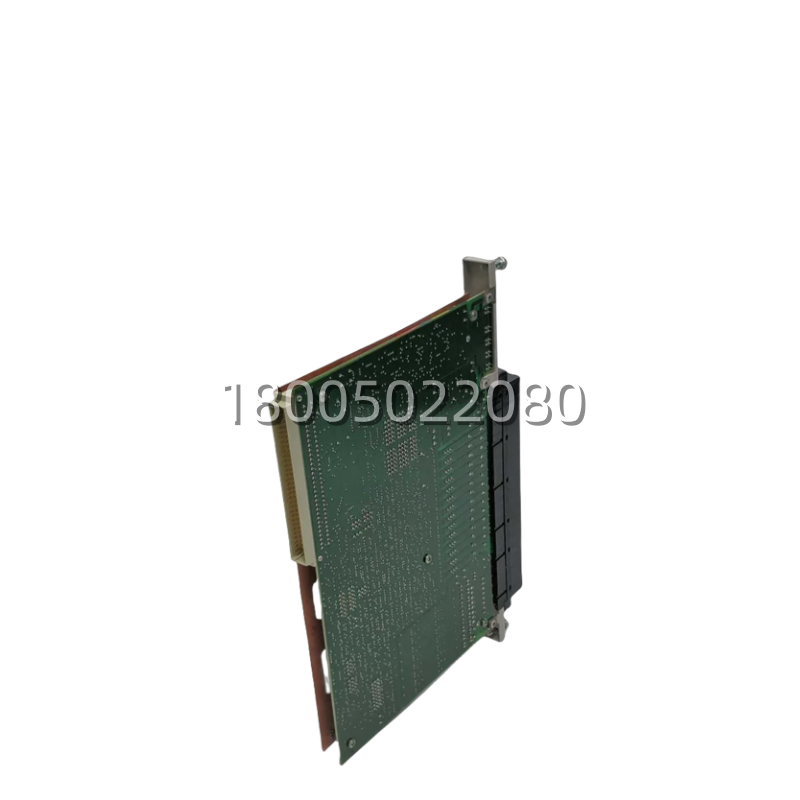

The Siemens 505-7003​ is a specialized high-speed counter/frequency measurement module designed for the classic SIMATIC S5 programmable logic controller family, particularly for the S5-115U platform. In the architecture of the S5 system, this module occupies a distinct slot in the central controller rack, providing the PLC with dedicated hardware for high-performance counting and measurement tasks that would overwhelm the scan-time-limited capabilities of a standard CPU. The Siemens 505-7003​ is engineered to directly interface with fast-pulsing digital signals from field devices such as incremental encoders, proximity sensors, photoelectric cells, or turbine flow meters. Its primary function is to accurately count pulses, measure frequencies, or monitor rotational speeds, enabling precise applications like length measurement, production batch counting, speed monitoring, and positioning control within an S5-based automation system.As a critical component of the S5 system’s I/O ecosystem, the 505-7003​ module operates with a high degree of autonomy from the central CPU. It features its own dedicated processor and memory to handle high-speed signal evaluation, thereby offloading the computational burden from the main controller and ensuring deterministic, lag-free measurement even during high PLC scan times. The module typically provides two independent counting channels, each capable of up/down counting, and supports various operating modes such as continuous counting, single-shot counting, and frequency/period measurement. Data exchange with the S5 CPU occurs via the rack’s backplane bus, where count values, status information, and module parameters are transferred cyclically. The enduring value of the Siemens SIMATIC S5 505-7003​ lies in its ability to bring precise, hardware-based metrological functionality to robust and proven S5 control systems, which continue to operate in many legacy industrial installations worldwide, ensuring continued accuracy and reliability for critical counting and measurement applications.

Technical Specifications

Main Features and Advantages

Hardware-Based High-Speed Performance: The core advantage of the Siemens 505-7003​ is its dedicated processing hardware for counting tasks. Unlike a software counter in the CPU which is limited by the program scan cycle, this module captures and processes every input pulse independently and asynchronously. This ensures that no pulses are missed, even at high frequencies (up to 10 kHz) or during high CPU load, guaranteeing absolute counting accuracy—a critical requirement for batching, cut-to-length, or inventory management applications. The module’s ability to measure frequency and period directly in hardware also provides highly responsive speed monitoring for drives or rotating machinery.Flexible Configuration and Seamless S5 Integration: Despite its specialized function, the 505-7003​ is deeply integrated into the SIMATIC S5 system. It is configured entirely within the familiar STEP 5 engineering environment. Engineers can set parameters such as counting direction, mode of operation, preset values, and comparison values for each channel. The module’s count values are mapped directly into the CPU’s process image, allowing the main control program to access real-time count data, reset counters, or react to comparison events using standard I/O commands. Many versions of the module also feature integrated digital outputs that can be controlled directly by the module’s internal comparator, enabling extremely fast reactions (within microseconds) to a count value being reached—such as triggering a cut or marking—without any delay from the PLC scan cycle. This combination of autonomous high-speed operation and tight PLC integration makes the Siemens 505-7003​ a powerful and reliable solution for demanding metering applications within the S5 ecosystem.

Application Field

The Siemens 505-7003​ counter module is deployed in a wide range of industrial applications where precise event counting or speed measurement is required within an S5-115U controlled system. A classic application is in packaging and filling lines, where it counts products passing on a conveyor belt to control boxing, palletizing, or to ensure correct batch sizes. In the wire, cable, and textile industries, it is used for length measurement. An encoder attached to a measuring wheel provides pulses proportional to length; the 505-7003​ counts these pulses, and its comparison function can trigger a cutter exactly when a preset length is reached.In material handling and assembly, the module counts parts for kit assembly or monitors the cycle count of machines for preventive maintenance. It is also fundamental for rotational speed monitoring. By measuring the frequency of pulses from a sensor on a motor shaft or gearbox, the Siemens SIMATIC S5 505-7003​ can provide real-time RPM data for speed control or overspeed/underspeed alarm generation. In flow measurement, it can count pulses from a turbine flow meter to totalize flow. Its high-speed capabilities make it suitable for applications involving encoders on fast-moving machinery. Given the longevity of S5 systems, this module is commonly found in legacy installations across manufacturing, automotive, plastics, and printing industries, where it continues to provide vital and reliable counting functionality that is integral to the automated process.

Related Products

• 6ES5 700-3…: The more common full ordering number prefix for the 505-7003​ module within the SIMATIC S5 numbering system.
• 6ES5 700-1MA12: Another high-speed counter module for the S5-115U, potentially with different channel counts or specifications.
• 6ES5 698-0…: A related function module, possibly for positioning or other specialized tasks in the S5-115U system.
• 6ES5 950-…: The range of interface modules (IMs) and power supplies for the S5-115U rack that houses the 505-7003.
• 6ES5 407-8…: Analog input/output modules that would be used alongside the 505-7003​ in a complete S5 system.
• S5-115U CPU (e.g., 6ES5 943-7… ): The central processing units that coordinate with the 505-7003​ counter module.
• S7-1200 / S7-1500 High-Speed Counter (HSC) Function: The modern equivalent functionality embedded directly in current-generation Siemens S7 CPUs, representing the technological evolution from discrete modules like the 505-7003.
• SM 1221 High-Speed Counter Module for S7-1200: A modern, external high-speed counter module for the newer S7-1200 platform.
• Incremental Encoders (e.g., Siemens 6FX… ): The typical field devices that provide pulse trains to be counted by the 505-7003.

Installation and Maintenance

Pre-installation preparation: Before installing the Siemens 505-7003, ensure the S5-115U rack is powered down. Verify the module is compatible with your specific S5-115U rack model and CPU. Plan the allocation of the module’s address within the rack’s I/O configuration, which will be set using the addressing switches on the module itself. Prepare the correct 20-pin front connector and the appropriate shielded cable for the sensor signals. For high-frequency applications, use twisted-pair cable and ensure proper grounding of the shield at the module end only to prevent noise ingress. Have the STEP 5 programming device or PC with STEP 5 software ready to configure the module parameters after installation. Ensure the external 24V DC power for the connected sensors is available and properly fused.Maintenance recommendations: The 505-7003​ is a robust, solid-state module with minimal maintenance requirements. The primary focus should be on signal integrity. Periodically check the tightness of the connections on the front connector. Monitor the module’s status LEDs; a lit fault LED (if present) indicates a problem that should be diagnosed using the system’s diagnostic buffer in STEP 5. If counting inaccuracies occur, verify the sensor signal quality (e.g., using an oscilloscope) and check the module’s input filter settings in the configuration—they may need adjustment to reject electrical noise without filtering out valid pulses. Ensure the operating environment (temperature, humidity) remains within specifications. The module itself is typically not field-repairable. If a hardware failure is confirmed, the Siemens 505-7003​ module must be replaced as a unit. Before replacement, ensure you have a backup of the STEP 5 program, including the complete system configuration and the module’s parameters, to restore functionality quickly.

Product Guarantee

Siemens has engineered the SIMATIC S5 505-7003​ high-speed counter module to the high standards of quality and reliability for which the SIMATIC S5 platform is known. While this product belongs to a legacy automation system, it was designed and manufactured to deliver long-term, dependable performance in industrial counting and measurement applications. Siemens’ commitment to its installed base includes the provision of technical documentation and historical support resources. It is important to note that the 505-7003​ and the S5 system it serves are in a long-term service and spare parts phase of their lifecycle. The specific commercial warranty for new old stock or refurbished units would be governed by the terms provided by the seller. For systems still in operation, the reliability of the 505-7003​ is a testament to its original design quality. For support, users often rely on specialized system integrators with legacy expertise, third-party refurbishment services, and Siemens’ own lifecycle services for critical spare parts. The module’s enduring presence in the field underscores its design robustness for critical industrial functions.
