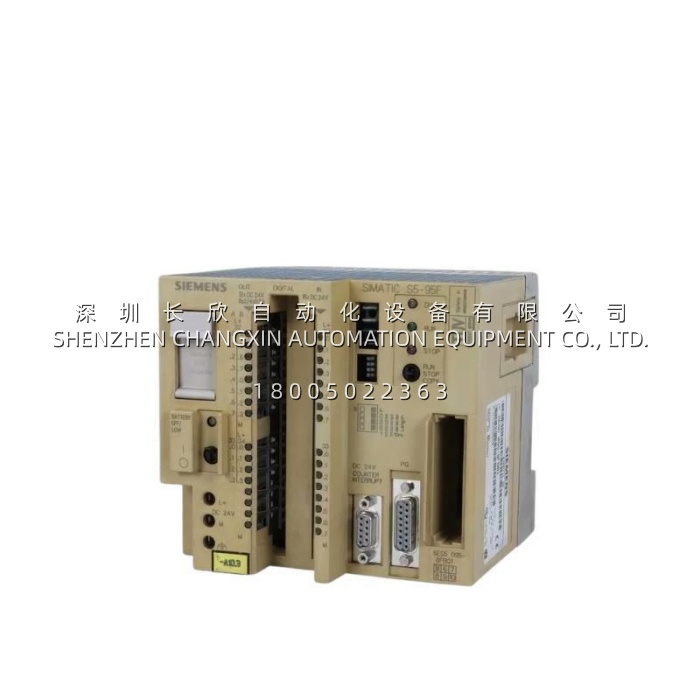

Technical Specifications
| Parameter Name | Value |
|---|---|
| Product Model | 6ES5095-8MA02 |
| Manufacturer | Siemens |
| Product Type | Compact Controller / Central Unit |
| Series | SIMATIC S5-95U |
| Program Memory | 16 KB |
| Supply Voltage | 24V DC |
| Digital Inputs | 16 x 24V DC (Sink) |
| Digital Outputs | 16 x 24V DC, 0.5A/Each |
| Analog Inputs | 8 x 0-10V DC (Configurable as Digital Inputs) |
| Analog Outputs | 1 x 0-10V DC or 0-20mA |
| Counter Inputs | 2 (ChA: 5kHz, ChB: 2kHz) |
| Interrupt Inputs | 4 |
| Communication Interface | 1 x 20mA (TTY) Current Loop for OP/PG/PC/SINEC L1 |
| Expandability | Up to 32 S5-100U Modules |
| Weight | Approx. 0.55 – 1.37 kg |
| Country of Origin | Germany |

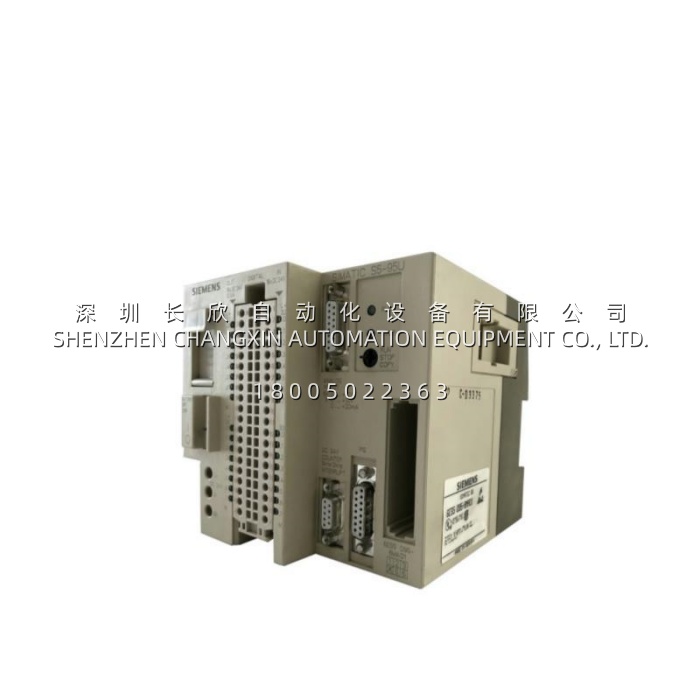

Main Features and Advantages
The Siemens 6ES5095-8MA02 offers a compelling combination of processing power and extensive onboard I/O, making it a self-sufficient controller for a wide variety of tasks. The 6ES5095-8MA02 integrates 16 digital inputs and 16 digital outputs, providing robust discrete control capabilities for interfacing with sensors, actuators, and other field devices. This high level of integration is a primary advantage, as it minimizes the hardware required, simplifies system design, and reduces cabinet space requirements compared to modular PLC systems.
A key feature of the Siemens 6ES5095-8MA02 is its versatile analog and counter functionality. The inclusion of 8 analog inputs (0-10V DC) enables the controller to directly process signals from analog sensors, such as temperature transmitters or pressure sensors, without the need for external signal converters. Furthermore, the Siemens 6ES5095-8MA02 boasts 2 high-speed counter inputs (up to 5kHz), which are essential for applications involving incremental encoders or high-speed pulse counting, such as in positioning or flow measurement. The dedicated interrupt inputs allow the 6ES5095-8MA02 to react with minimal latency to critical external events, enhancing the responsiveness of the control system.
The communication capabilities of the 6ES5095-8MA02 ensure it can be integrated into a broader automation network. It features a 20mA (TTY) current loop interface, which facilitates connection to operator panels (OP), programming devices (PG), or a SINEC L1 local area network. Despite its compact size, the Siemens 6ES5095-8MA02 is not a closed system; it is expandable with up to 32 S5-100U modules, allowing for significant system growth to meet the demands of more complex machinery.
