Product Overview

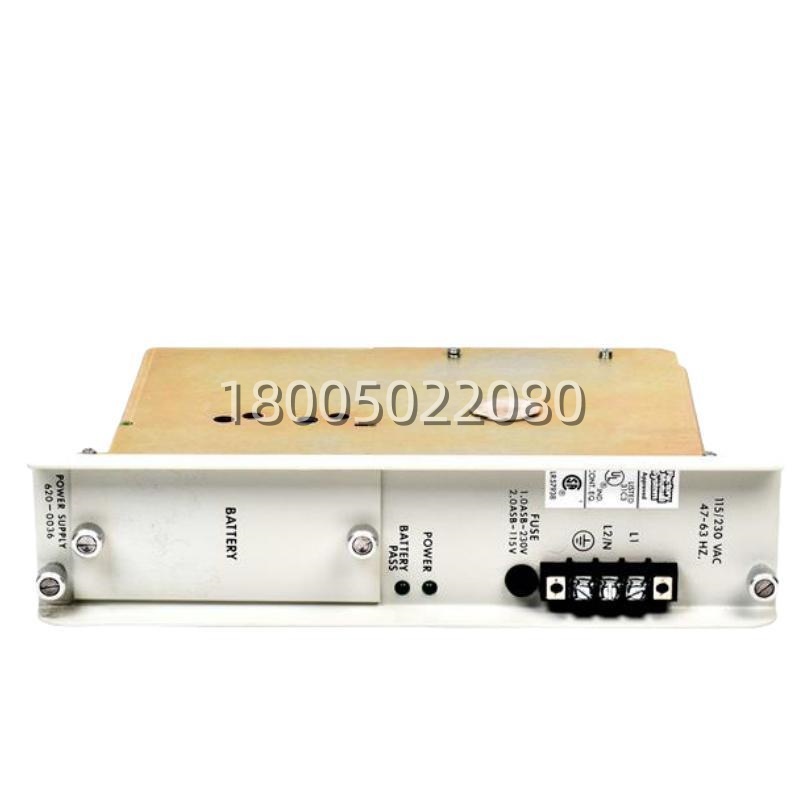

The Honeywell 620-0036​ is a high-integrity, triple modular redundant (TMR) processor power supply module, serving as the critical power source for the central processing units within Honeywell’s flagship Safety Manager safety instrumented system (SIS) and Experion Process Knowledge System (PKS). This module is far more than a simple power converter; it is engineered to provide the utmost level of power availability and fault tolerance required for systems protecting human life, the environment, and high-value industrial assets. The Honeywell 620-0036​ supplies clean, regulated, and isolated DC power to the triple redundant processor modules of the Safety Manager, ensuring that even in the event of a failure within one of its own internal power channels, the control processors remain fully powered and operational without interruption. Its design is a cornerstone of the system’s high availability, directly supporting the achievement of stringent Safety Integrity Levels (SIL 3 as per IEC 61508/61511) by eliminating the power supply as a single point of failure.Functioning within a fault-tolerant architecture, the 620-0036​ module incorporates three independent, isolated power conversion channels. These channels operate in parallel, sharing the load and continuously monitoring each other’s status. This TMR design ensures that the failure of any single channel is automatically masked, with the remaining two channels seamlessly taking up the full load without any disruption to the downstream processors. The module includes comprehensive diagnostic capabilities that report its health status back to the control processors and the system’s engineering workstation, enabling predictive maintenance. The integration of the Honeywell 620-0036​ into a control cabinet is a statement of commitment to system resilience. In critical applications such as emergency shutdown (ESD), fire and gas (F&G) detection, and turbine control, where a loss of control system power is not an option, the reliability of this power supply is paramount. It provides the stable electrical foundation upon which the entire safety or critical control logic executes, making it an indispensable component for industries where operational uptime and safety are non-negotiable.

Technical Specifications

Main Features and Advantages

Triple Modular Redundancy (TMR) for fault-tolerant power: The defining feature of the Honeywell 620-0036​ is its triple redundant internal architecture. Unlike a simplex or even dual-redundant supply, the TMR design provides an unparalleled level of fault tolerance. The three independent power channels work in perfect synchronization. Should one channel fail due to a component fault, the other two channels instantly and transparently assume the entire load. This “fault-masking” capability means the connected processor modules experience zero power disturbance, glitch, or brownout condition. This is critical because even a momentary power dip could cause a processor to reset or behave unpredictably, potentially triggering a spurious shutdown in a safety system. The 620-0036​ ensures the processors have a continuous, clean power source, which is the absolute bedrock of high-availability control.Advanced diagnostics and hot-swap capability: The module is equipped with sophisticated self-diagnostics that monitor the health of each internal power channel, including parameters like output voltage, current, and temperature. This diagnostic information is reported in real-time to the system, allowing operators and maintenance personnel to see the status of the Honeywell 620-0036​ from the control room. Alerts can be generated for early warning of a degrading channel, enabling proactive replacement during a planned maintenance window rather than an emergency response after a failure. Furthermore, the module is designed for true hot-swap replacement. This means a faulty (or pre-emptively maintained) 620-0036​ power supply module can be safely removed from its slot in the chassis and replaced with a new one without needing to power down the entire safety controller or the process it is protecting. This feature is instrumental in achieving the system’s goal of maximum availability and minimizing mean time to repair (MTTR).High reliability and robust industrial design: Built to withstand the harsh electrical and environmental conditions of industrial plants, the 620-0036​ incorporates high-quality components and conservative design margins. It features input protection against transients, reverse polarity, and over-voltage conditions commonly found on plant 24VDC bus systems. The high level of isolation (1500VAC) between channels and from input to output prevents fault propagation and protects sensitive processor electronics from ground loops and noise. The module’s high conversion efficiency minimizes heat generation, contributing to its long-term reliability and reducing the thermal load on the control cabinet. This focus on robustness and quality ensures the Honeywell 620-0036​ delivers years of dependable service, directly supporting the longevity and integrity of the critical control system it powers.
