Description

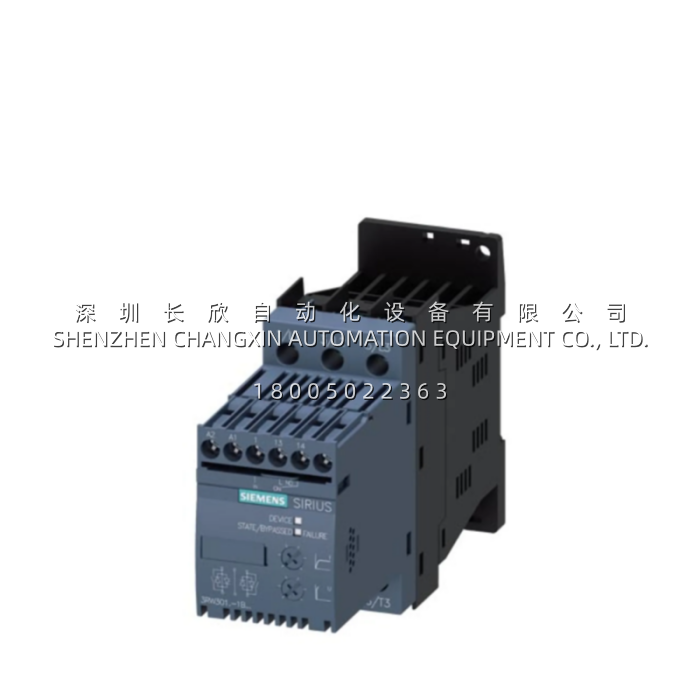

The Siemens 3RW3014-1BB14 is a SIRIUS 3RW30 series soft starter designed for standard applications requiring reduced starting current and minimized mechanical stress on driven machinery . This compact S00 frame size device provides smooth, ramp-like voltage increase to three-phase induction motors, effectively limiting torque and current peaks during startup . With an integrated bypass contact system and screw-type terminals, the Siemens 3RW3014-1BB14 delivers reliable performance in a space-saving 45mm-wide housing .
Application Scenarios
A facilities engineer at a large commercial building was tasked with reducing the frequent belt failures on the main air handling unit’s 3kW supply fan. Every morning start-up caused a sudden jolt that stressed the drive belts, requiring replacement every three months. After installing the Siemens 3RW3014-1BB14, the fan motor ramped up smoothly over 10 seconds, eliminating the mechanical shock. Belt life extended to over 18 months, and nuisance tripping of the main breaker during start-up—caused by inrush current spikes—was entirely eliminated. This scenario illustrates the core value of the Siemens 3RW3014-1BB14: it addresses the twin pains of mechanical wear and electrical stress in motor-driven applications. Whether deployed in pumps, compressors, conveyors, escalators, or ventilation systems, the Siemens 3RW3014-1BB14 ensures soft, controlled starts that protect both the motor and the driven load .
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | Siemens 3RW3014-1BB14 |
| Manufacturer | Siemens |
| Product Category | SIRIUS Soft Starter (3RW30 series) |
| Rated Operational Current (Ie) | 6.5 A at 40°C |
| Motor Power @ 400V | 3 kW |
| Motor Power @ 230V | 1.5 kW |
| Supply Voltage (Ue) | 200 – 480 V AC |
| Control Supply Voltage (Us) | 110 – 230 V AC/DC |
| Frame Size | S00 |
| Connection Type | Screw terminals (main and control circuits) |
| Dimensions (W x H x D) | 45 x 95 x 150 mm |
| Integrated Bypass | Yes (built-in contact system) |
| Operating Temperature | -25°C to +60°C |
| Mounting | DIN rail or screw fixing |
Technical Principles and Innovative Values
Innovation Point 1: Integrated Bypass Contact System
The Siemens 3RW3014-1BB14 features an integrated bypass contact system that eliminates the need for a separate bypass contactor . Once the motor reaches full speed, the bypass contacts close, short-circuiting the thyristors. This reduces power loss to a mere 0.5W during continuous operation, improving energy efficiency and eliminating the need for additional cooling measures .
Innovation Point 2: Variable Phase Control for Smooth Starting
Using phase-angle control, the Siemens 3RW3014-1BB14 gradually increases motor voltage from an adjustable starting level to full mains voltage over a ramp-up time of 0–20 seconds . This controlled ramp eliminates the mechanical shock and current spikes associated with direct-on-line or star-delta starting methods, reducing stress on couplings, belts, and gearboxes .
Innovation Point 3: Optimized Control Voltage Flexibility
The Siemens 3RW3014-1BB14 accepts a wide control voltage range of 110–230V AC or DC, providing flexibility for integration into different control systems . This broad compatibility simplifies panel design and allows the same device to be used across global projects without requiring separate control transformer configurations.
Innovation Point 4: Compact S00 Size with High Power Density
At just 45mm width and 150mm depth, the S00 frame size of the Siemens 3RW3014-1BB14 offers exceptional power density . This compact footprint is critical for space-constrained control cabinets, allowing more functionality to be packed into less panel space while maintaining adequate clearance for heat dissipation .
