Application Scenarios

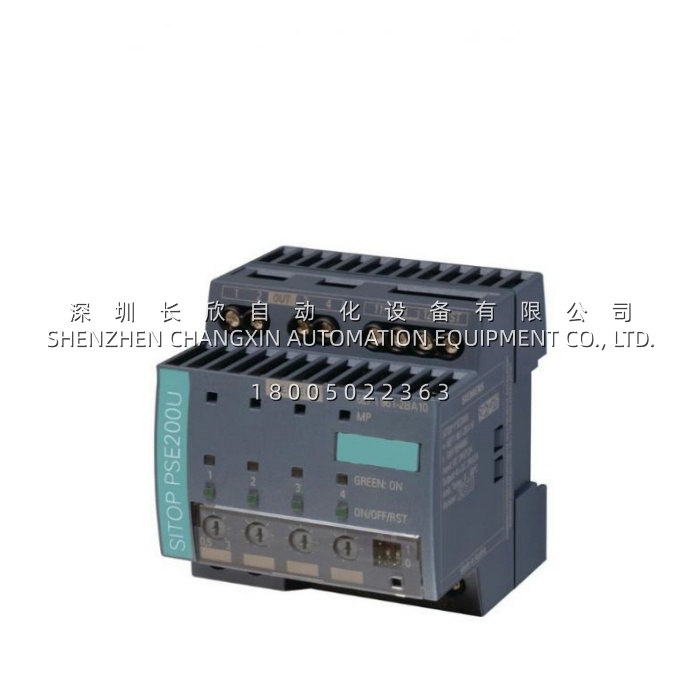

In a modern automotive body shop in Stuttgart, the welding robot control cabinet contains dozens of 24V DC power branches feeding PLC racks, safety relays, weld timers, and servo drives. During a routine shift change, a weld cable chafed through, causing a short circuit on a branch feeding a single robot controller. In a conventional system, the main power supply would have tripped, shutting down the entire production line and costing the plant approximately €15,000 per hour in lost production. With the SIEMENS 6EP1961-2BA21 installed, the module instantly detected the short, selectively shut down only the faulty branch, and allowed the other three branches to continue powering the remaining robots. The plant’s maintenance engineer reported: “The SIEMENS 6EP1961-2BA21 turned what could have been a four-hour production stop into a 15-minute maintenance repair. We simply identified the fault through the LED indicator, replaced the damaged cable, and pressed the reset button—the line was back up before the shift supervisor even arrived.” This case demonstrates how the SIEMENS 6EP1961-2BA21 transforms vulnerability into resilience.

The SIEMENS 6EP1961-2BA21 is equally valuable in process industries such as chemical plants, where a single short circuit on an instrument power loop could trigger a process shutdown requiring hours of restart procedures. The module’s remote diagnostic capability—provided through the hybrid signal contact—enables plant operators to monitor branch status from the central control room, significantly reducing troubleshooting time and enabling predictive maintenance strategies .
