Product Overview

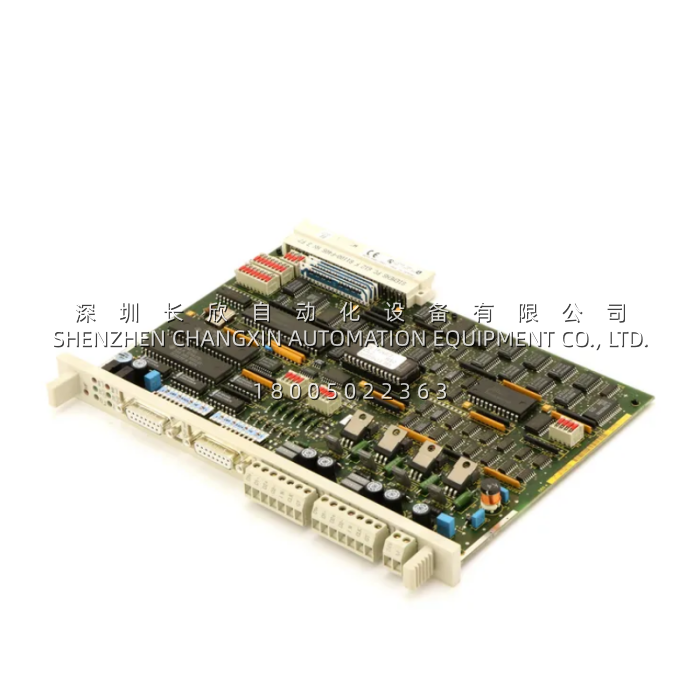

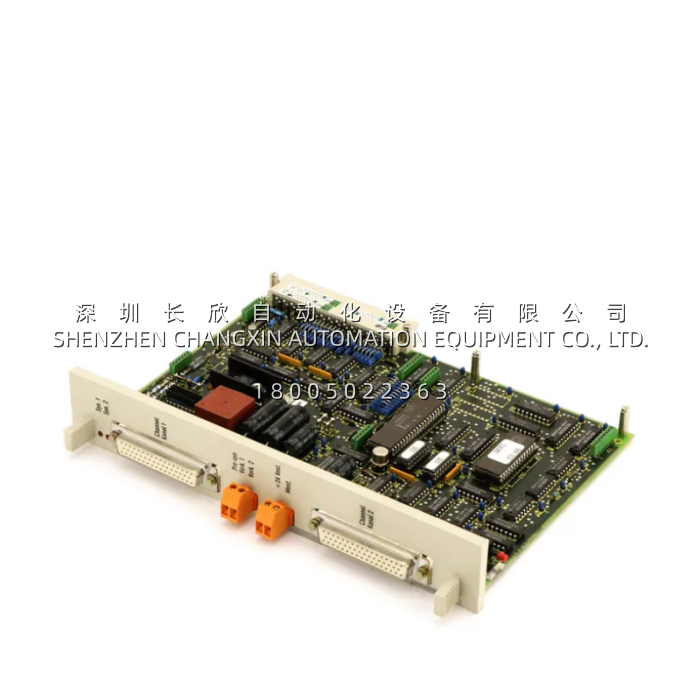

The 6ES5241-1AA12​ is a Siemens SIMATIC S5 IP 241 Digital Position Decoder Basic Module in the “compact version” 2-channel format, engineered as a technology-module supplement to S5-115U, S5-135U, and S5-155U rack CPUs for applications requiring incremental-encoder position acquisition without migrating to the newer S7 FM 350 or equivalent tech-module tiers. Within the S5 IP-24x technology family, the 6ES5241-1AA12​ sits as the “basic” position-decoder tier—simpler than the IP 240 counting/positioning predecessor and more position-focused than the IP 242 counter compact that followed. The “compact version” designation (-1AA12) denotes a space-optimized PCB that integrates the dual-channel decode logic in a single S5 standard-width slot, as opposed to the non-compact IP 241 variants that require separate encoder-matching daughter modules (-1AB12 incremental, -1AC12 Gray-code, -1AD12 absolute, etc.) to adapt to different encoder signal families.Each of the two independent channels on the 6ES5241-1AA12​ processes A/B (90° phase-shifted for direction) plus optional Z (zero-reference) signals from TTL-compatible incremental encoders at up to 50 kHz per channel, with a 32-bit signed count range (–2,147,483,648 to +2,147,483,647) allowing long-travel accumulation without rollover concerns. The module supports continuous counting, periodic (modulo) counting, zero-synchronized counting, and preset-value loading, with position data exchanged to the S5 CPU over the rack I/O address/parameter area. Front-panel diagnostics include an SF (group fault, red) LED for wire-break / signal-loss / internal error, a 24 V (green) LED for external supply presence, and per-channel status indication. A critical deployment note unique to the 6ES5241-1AA12​ compact version: the board must be hardware-adapted via resistors and solder bridges before first commissioning to match the specific encoder type and voltage regime—incorrect bridging can damage both the module and connected field components. Siemens declared the 6ES5241-1AA12​ obsolete effective April 1, 2012, placing it firmly in the legacy-spare category for the sizable installed base of S5-115U/135U/155U machines still running in packaging, converting, material-handling, and process-aux contexts.

Technical Specifications

Main Features and Advantages

Dual 32-bit position channels in one S5 slot.​ The 6ES5241-1AA12​ gives the S5-115U/135U/155U rack two independent incremental-decoder fronts in a single standard-width module—no separate position card per axis. With 32-bit signed range, a 1000-pulse-per-revolution encoder on a 3000 RPM shaft (50 kHz at the limit) can accumulate position for days without rollover concern in continuous-count mode. For conveyor-length tracking, unwinder diameter calculation, or cut-to-length registration, the 6ES5241-1AA12​ keeps the S5 CPU’s scan free of software-bit-counting overhead—the decode, direction-sense, and Z-zero capture happen on-module, and the CPU reads a stable double-word per channel each scan.Four counting paradigms on-board.​ The 6ES5241-1AA12​ isn’t a one-mode counter. Continuous counting simply accumulates every A-edge indefinitely—right for odometry. Periodic (modulo) counting auto-wraps at a programmable limit—right for rotary-table index (every 360° = preset, modulo resets). Zero-synchronized counting reloads the counter from the Z-pulse once per revolution—right for homing without a separate home prox. Preset loading lets the CPU force a known value into the counter (e.g., after a mechanical re-zero or at power-up restore from saved position). This flexibility means one 6ES5241-1AA12​ can serve a flying-shear registration axis and a conveyor-accumulation axis simultaneously with different mode configs per channel.Integrated diagnostics with LED granularity.​ The SF LED on the 6ES5241-1AA12​ flags wire-break (A/B stuck or missing phase), overflow (count exceeded 32-bit window before CPU read), and zero-loss—three fault classes that, on a bare encoder-into-CPU approach, would need custom STL logic to detect. The 24 V green LED confirms external supply presence; channel-status LEDs give a quick “is this axis alive?” glance during cabinet walkdowns without plugging a PG. For plants still running S5-135U/155U as the cell controller, this self-diagnosing front panel reduces mean-time-to-guess when a position loop drifts.Compact-version integration vs. encoder-match modularity.​ The broader IP 241 family splits into the 6ES5241-1AA12​ compact (self-contained 2-ch) and the non-compact base (-1AA11) which requires separate encoder-matching modules: -1AB12 (1-ch incremental match), -1AC12 (Gray-code Excess-3 BCD), -1AD12 (absolute binary/BCD), -1AE12 (analog), -1AF12 (absolute synchronous-serial). The 6ES5241-1AA12​ compact absorbs the common incremental-TTL case into one slot, making it the high-turn spare for the majority of S5 position-decode installs. The trade: the compact must be solder-bridge-configured for the specific encoder regime before first power-up—resistors and bridge pads on the PCB select voltage threshold, termination, and filtering. The non-compact approach pushes that adaptation onto the plug-on match module instead. For maintenance stores receiving a 6ES5241-1AA12​ as a spare, verifying the solder-bridge map against the original machine’s encoder type (5 V TTL vs. 24 V OHM, termination resistor value) is step one—bridging wrong fries the input stage and possibly the encoder driver.S5-ecosystem fit.​ The 6ES5241-1AA12​ exchanges data with the S5 CPU over the standard I/O/parameter address area—no separate bus coprocessor, no Profibus DP overhead. Position double-words land in the CPU’s process image each scan; the S5 OB1 or cyclic interrupt reads them and feeds the application logic (compare-to-setpoint, cam-switch virtual, length-totalizer). For plants standardized on S5-135U/155U for cell control (packaging lines, converting, newspaper press, steel-aux), the 6ES5241-1AA12​ is the canonical position-decode spare—cheaper and simpler than migrating the axis to an FM 350-1 on S7-300 or a TM PosInput on S7-1500 when the rest of the cell is staying S5.
