Product Overview

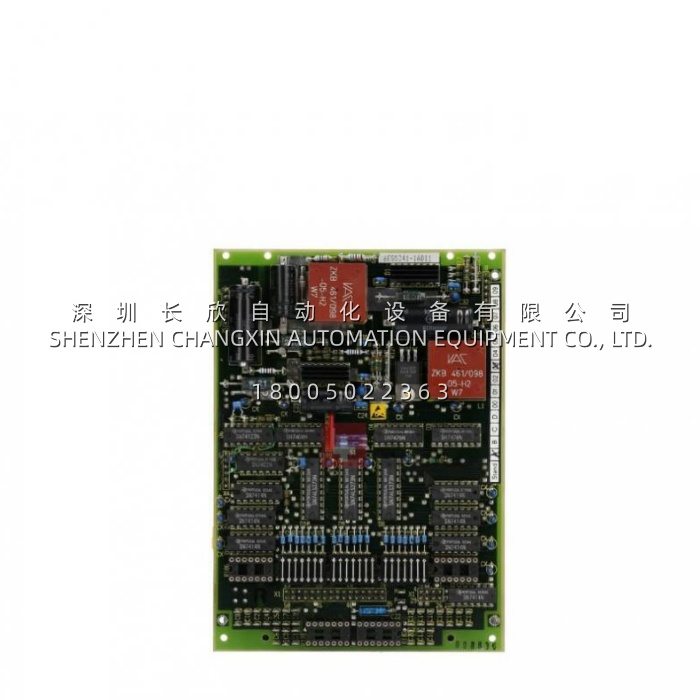

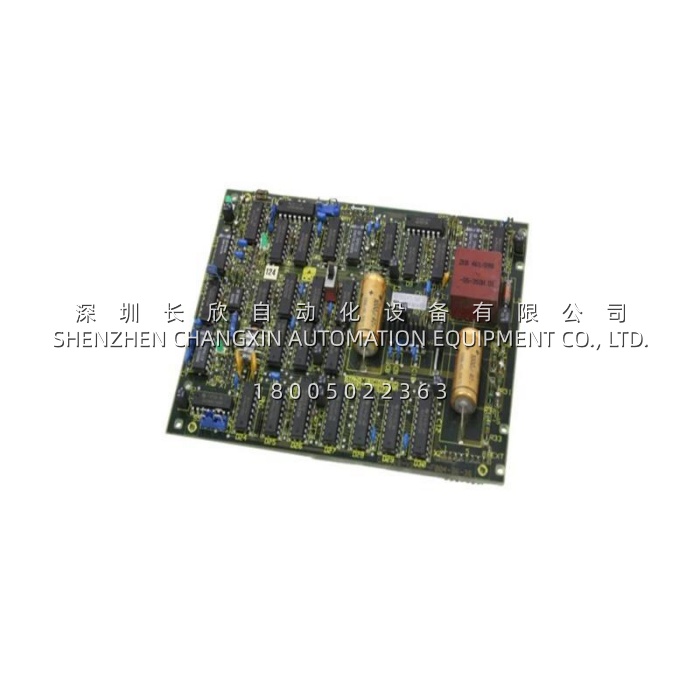

The Siemens 6ES5241-3CA12, designated as the IP241 Intelligent Processor Module, is a sophisticated peripheral module from the SIMATIC S5 programmable logic controller (PLC) family. Unlike standard I/O modules, the Siemens 6ES5241-3CA12 incorporates its own onboard microprocessor, enabling it to execute complex algorithms independently of the S5 CPU’s scan cycle . This intelligent architecture allows the Siemens 6ES5241-3CA12 to perform advanced functions such as PI closed-loop control, precision positioning, and cam control without burdening the main processor, significantly improving system response times for real-time applications .
The Siemens 6ES5241-3CA12 mounts in any standard slot of S5-115U, S5-135U, or S5-155U central or expansion racks, connecting to the S5 backplane bus . Its primary application is in positioning tasks, where the Siemens 6ES5241-3CA12 interfaces with incremental encoders (TTL/HTL signals) at maximum counting frequencies up to 200 kHz . Configuration of the Siemens 6ES5241-3CA12 is performed through STEP 5 programming software using dedicated function blocks (FBs), which download the control algorithm to the module for independent execution . As the SIMATIC S5 series has been discontinued for many years, the Siemens 6ES5241-3CA12 has become a critical spare part for facilities operating legacy S5 systems . For plant operators managing classic automation infrastructure, the Siemens 6ES5241-3CA12 represents an essential inventory item for maintaining system availability and preventing costly downtime.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Siemens 6ES5241-3CA12 |
| Manufacturer | Siemens AG |
| Product Type | IP241 Intelligent Processor Module |
| Series | SIMATIC S5 (Intelligent Peripheral IP Series) |
| Designation | IP241 Positioning / Intelligent I/O Module |
| Applicable Systems | S5-115U / S5-135U / S5-155U Central or Expansion Racks |
| Supply Voltage | 24V DC (20.4 – 28.8V DC range) |
| 5V Backplane Current Consumption | Approx. 1.2A |
| 24V External Current Consumption | Approx. 0.1A |
| Typical Power Dissipation | 3 – 6 W (function load dependent) |
| Incremental Encoder Interface | 1 channel (TTL/HTL compatible) |
| Maximum Count Frequency | 200 kHz |
| Control Outputs | Digital control signals (enable, direction, etc.) |
| Programming Software | STEP 5 with dedicated IP241 Function Blocks (FB) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Installation | S5 Standard Rack Slot (DIN rail mountable) |
| Dimensions (W×H×D) | Approx. 120 × 40 × 105 mm |
| Weight | Approx. 0.2 – 0.5 kg |
Main Features and Advantages
Independent intelligence for real-time performance: The Siemens 6ES5241-3CA12 features a dedicated onboard microprocessor that executes control algorithms independently of the S5 CPU . This architecture is particularly valuable for positioning and closed-loop control applications, as the Siemens 6ES5241-3CA12 can maintain deterministic, high-speed responses without being affected by CPU scan time variations or program complexity. The module’s ability to offload processing-intensive tasks from the main CPU improves overall system performance and allows the S5 processor to focus on higher-level coordination and communication functions.
High-speed positioning capabilities: The Siemens 6ES5241-3CA12 excels in precision positioning applications through its integrated incremental encoder interface, capable of handling counting frequencies up to 200 kHz . This makes the Siemens 6ES5241-3CA12 suitable for demanding motion control tasks such as CNC axes, robotic positioning, and conveyor synchronization. The module’s digital control outputs for enable and direction signals provide direct interfacing to servo drives and motor controllers, simplifying system design and reducing external component requirements .
Versatile application support: The Siemens 6ES5241-3CA12 is configurable for multiple application types through STEP 5 programming . The Siemens 6ES5241-3CA12 supports PI closed-loop control for process regulation tasks such as temperature, pressure, and flow control, positioning control for single-axis or multi-axis systems, and cam control for packaging and assembly machinery requiring coordinated motion sequences. This versatility makes the Siemens 6ES5241-3CA12 a valuable single-module solution for diverse automation requirements .
Legacy system life extension: As the SIMATIC S5 series has been discontinued, the Siemens 6ES5241-3CA12 is no longer in active production . For facilities still operating S5-based control systems, this module is a vital resource for maintaining existing equipment without the engineering effort and capital expenditure of migrating to newer platforms. Maintaining a stock of Siemens 6ES5241-3CA12 modules is a recommended strategy for spares management in legacy automation environments.
