ABB 5SXE04-0150/GVC707AE01
ABB 5SXE04-0150/GVC707AE01 Product Introduction

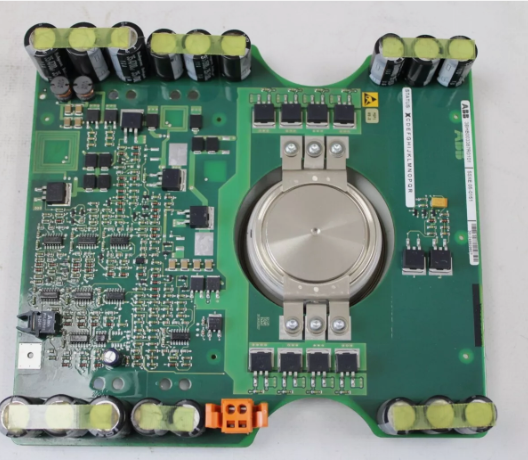

ABB 5SXE04-0150/GVC707AE01 is an integrated gate commutated thyristor(IGCT)module designed specifically for high-voltage power systems,featuring high power,high reliability,and high efficiency.This module is widely used in industrial automation,electric vehicle charging infrastructure,and power electronic equipment,supporting complex power conversion and control requirements.
Main features and advantages:
High performance IGCT technology:adopting an integrated gate commutated thyristor architecture,combined with high-speed switching characteristics and low loss design,suitable for high-frequency and high-voltage scenarios,such as fast charging of electric vehicles,industrial frequency converters,and power regulation systems.
Multi core processing capability:Built in multi-core chip architecture,supporting multi-threaded parallel computing,improving the response speed and efficiency of complex control tasks,especially outstanding in industrial scenarios that require real-time data processing.
Low energy design:Multi core independent operation,reducing overall power consumption through optimized energy allocation,suitable for battery powered or mobile devices,extending system endurance.
Industrial grade environmental adaptability:Operating temperature range of 0-85℃,humidity of 0-65%,supporting dust-proof and moisture-proof design,suitable for harsh industrial environments.
Flexible scalability:Modular interfaces support integration with PLC,HMI,and upper computer systems,compatible with protocols such as EtherNet/IP and Modbus,making it easy to build distributed control systems.
Technical specifications:
Model:5SXE04-0150/GVC707AE01
Power capability:Supports high-voltage power conversion(from thousands of volts to tens of volts),with a current output of up to 400A(typical application scenario).
Processing performance:
Processing speed:100 MHz
Program capacity:64 MB
Data capacity:16 MB
Communication interface:
Ethernet(10/100 Mbps)
RS-232/RS-485 serial port
Physical parameters:
Size:52 mm×32 mm×66 mm
Weight:0.16 kg
Protection level:IP20(depending on installation conditions)
Application areas:
Electric vehicle charging:As the core module of DC fast charger,it supports 600V high voltage and 400A high current output,achieving vehicle charging within 30 minutes.
Industrial power control:used for frequency converters,excitation systems,and power regulation devices to improve energy efficiency and stability of industrial equipment.
New energy system:integrated into photovoltaic inverters and energy storage equipment to optimize energy conversion efficiency.
Smart Grid:Participate in power distribution and fault protection to ensure the safe operation of the power grid.
