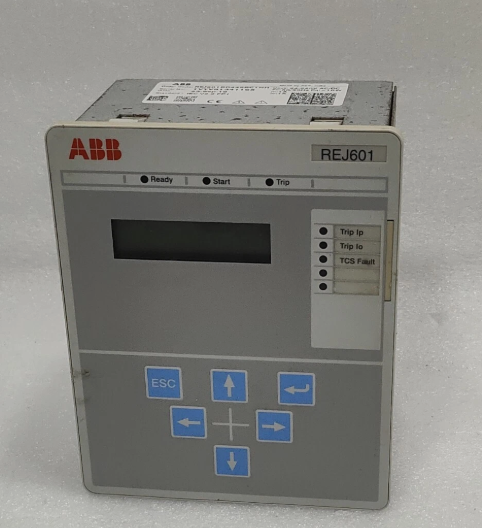

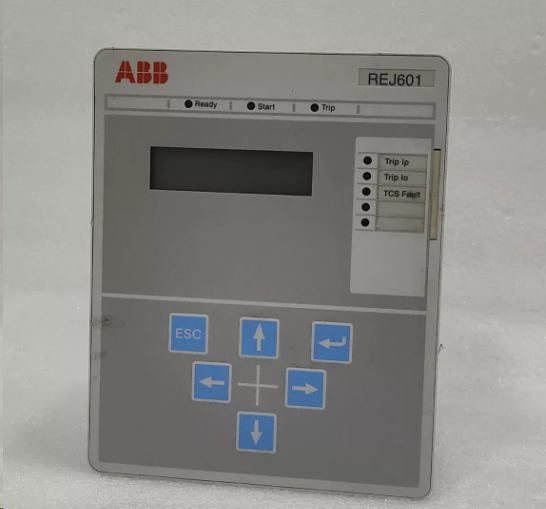

ABB REJ601 BD446NN1XG Product Introduction

Product model:

REJ601 BD446NN1XG(model needs to be bolded,using Markdown syntax)

Main features and advantages:

REJ601 BD446NN1XG is ABB Relion®The overcurrent protection relay in the 605 series is designed specifically for medium voltage distribution systems,focusing on overcurrent and ground fault protection for feeders,cables,and transformers.Its core advantages include:

High reliability and compactness:Adopting a 1/2 rack width design,with a small installation depth,supporting press in installation,suitable for compact switchgear and space limited scenarios.

Multi level protection function:Integrated three-level overcurrent protection(including timed DT and inverse time IDMT characteristics)and two-level grounding fault protection,supporting IEC and ANSI standards,compatible with different power grid requirements.

Intelligent monitoring and diagnosis:Built in surge current detection function to prevent accidental tripping of transformers during charging;Provide 100 event records with timestamps for easy fault tracing.

Flexible communication and configuration:Supports Modbus RTU and IEC 60870-5-103 communication protocols,and can set parameters through local HMI or remote interface to adapt to various automation systems.

Environmental adaptability:Universal power input(24-250V AC/DC),wide temperature operation(-25°C to 70°C),anti electromagnetic interference design,suitable for harsh industrial environments.

Technical specifications:

Parameter item specification description

Protection type:overcurrent,ground fault,thermal overload

Communication protocol Modbus RTU,IEC 60870-5-103

Input power supply 24-250V AC/DC

Installation method:press in type(1/2 rack width)

Event record capacity of 100(with timestamp)

Environmental temperature-25°C to 70°C

Environmental humidity ranging from 5%to 95%(non condensing)

Mechanical structure pre wiring design,no loose accessories

Application areas:

This relay is widely used in the following scenarios:

Medium voltage distribution system:protects substation incoming/outgoing lines,cables,and overhead lines from short circuits and overload faults.

Industrial power facilities:main protection of distribution transformers,monitoring of grounding faults in motor circuits.

Renovation project:Suitable for upgrading old switchgear with limited space,improving protection performance and intelligence level.

Related products:

REF601(Feedline Protection and Control Relay):Belonging to the 605 series of REJ601,it integrates circuit breaker control function and is suitable for scenarios that require local operation.

REM601(Motor Protection Relay):Designed specifically for asynchronous motors,it provides thermal overload,stall protection,and emergency restart functions.

RET615(Transformer Differential Protection Relay):Adopting high-precision differential algorithm,supporting multi winding transformer protection.

REB611(Busbar Protection Measurement and Control Device):For single-phase isolated short-circuit protection,suitable for substation busbar systems.
