BERGER LAHR VRDM 566/50
BERGER LAHR VRDM 566/50 LNA Product Introduction

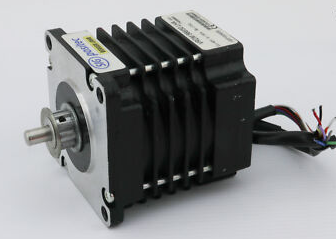

BERGER LAHR VRDM 566/50 LNA is a high-performance stepper motor launched by Berger Lahr,a brand under Schneider Electric.It is designed specifically for industrial automation scenarios and combines high-precision control with strong environmental adaptability.This product adopts a compact structure,supports multi scenario expansion,and is suitable for high dynamic demand fields such as CNC machine tools,robot positioning,packaging machinery,etc.
Product Overview:
The VRDM 566/50 LNA belongs to the Bergra VRDM series stepper motor,which adopts permanent magnet synchronization technology and combines high-precision encoders to achieve dynamic position feedback.Its core functions include:
High precision positioning:supports subdivision driving technology,achieves micro step control,and meets the requirements of complex motion trajectories.
Wide voltage compatibility:compatible with 24-72V DC power supply,suitable for different industrial power environments.
Modular design:Supports interface configuration such as optical axis and hollow shaft,making it easy to integrate with components such as reducers and couplings.
Technical specifications:
Model:VRDM 566/50 LNA
Type:Permanent magnet stepper motor
Rated parameters:
Step angle:1.8°(standard step)
Maximum static torque:≥3.5 N·m(24V input)
Speed range:0-3000 rpm(dynamic load)
Resolution:16384 lines per revolution(high-precision encoder)
Interface configuration:
Output shaft diameter:50 mm(LNA series standard)
Wiring method:Dual A/B interface(supports pulse/direction control)
Environmental adaptability:
Working temperature:-20℃to+70℃
Protection level:IP54(dustproof and waterproof)
Size and weight:
Diameter:66 mm
Length:120mm
Weight:Approximately 2.8 kg
Main features and advantages:
High dynamic performance:
Adopting optimized magnetic circuit design to reduce cogging effect,achieving low-speed smooth operation and high-speed high torque output.
Support electronic gearbox function,simplify multi axis synchronous control.
Industrial grade reliability:
The bearings are made of stainless steel material,which has strong corrosion resistance and is suitable for corrosive environments such as chemical and food processing.
Built in overheating protection and current limiting function to prevent short circuit or overload damage.
Flexible scalability:
Optional planetary gearboxes(such as PLE series)can be used to enhance torque output,or paired with brakes to achieve precise shutdown.
Supports industrial bus protocols such as CANopen and EtherCAT,and is compatible with mainstream PLCs and motion controllers.
Low noise design:
Adopting silent bearings and optimized rotor structure,the operating noise is less than 50 dB(1 meter distance),suitable for quiet scenarios such as clean rooms.
Application areas:
VRDM 566/50 LNA is widely used in the following scenarios:
CNC machine tools:tool library switching,spindle indexing positioning.
Robot system:robotic arm joint control,precision assembly positioning.
Packaging machinery:label attachment,filling machine liquid level adjustment.
Printing equipment:paper slitting,dynamic calibration of printing heads.
Medical equipment:CT scanning table rotation,laboratory sample transfer.
