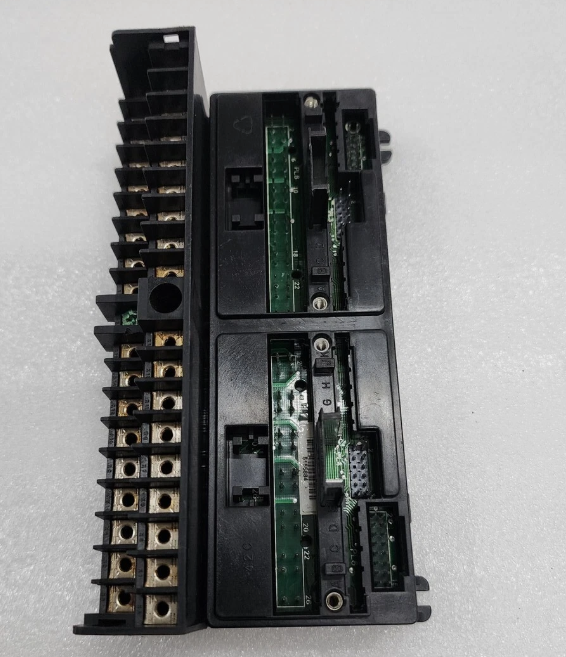

GE IC670CBL001 is an industrial control module in General Electric (GE) automation systems, mainly used for process automation and expansion and connection of PLC (Programmable Logic Controller) systems. The following is a comprehensive overview of its core functions and technical parameters:

1. Product positioning and functions

I/O expansion cable: designed specifically for connecting PLC modules, expanding input/output interfaces, supporting signal transmission for GE Fanuc series controllers such as FC2000, AC2000, DC2000, ME2000, CB2000, etc.

Redundancy and reliability: Using RJ45 interface and PVC environmentally friendly materials, it has high temperature resistance, low temperature resistance, waterproof and dustproof characteristics, ensuring stable operation in industrial environments.

Data processing capability: Built in 32KB user memory and 4K I/O capacity, supporting the data storage and processing needs of complex industrial applications.

2. Technical parameters

Parameter specifications

Voltage input/output 24V DC (both input/output supported)

Current input/output 1.6A (both input/output supported)

Working temperature -40 ° C to 70 ° C

Storage temperature -40 ° C to 85 ° C

Dimensions 84mm × 125mm × 43mm

Interface type RJ45, M20 * 1.5 cable interface

3. Application scenarios

Process control: Integrated with Proficy process control system, supporting DCS (distributed control system) applications in industries such as oil and gas, power, and water treatment.

Motion Control: Compatible with the MSC motion controller series, achieving multi axis closed-loop control, suitable for precise adjustment of electric or hydraulic actuators.

Industrial automation: Expand the I/O interface of PLC modules to enhance system flexibility and scalability, and meet the signal transmission requirements of complex industrial scenarios.

4. Special Instructions

Discontinued status: This model has been officially discontinued, but there is still inventory available in the market.

Compatibility: Supports collaboration with GE Fanuc’s PAC (Programmable Automation Controller) system and Proficy software platform, such as PAC8000 controller and iFIX HMI.

5. Additional functions

Anti interference design: using shielded cables and signal isolation technology to reduce the impact of electromagnetic interference on signal transmission.

Environmental adaptability: Compliant with IP65 protection level, suitable for harsh industrial environments such as corrosion and vibration.



GE IC670CBL001是通用电气（GE）自动化系统中的一款工业控制模块，主要用于过程自动化和PLC（可编程逻辑控制器）系统的扩展与连接。以下是其核心功能及技术参数的综合概述：

1.产品定位与功能

I/O扩展电缆：专为连接PLC模块设计，扩展输入/输出接口，支持GE Fanuc系列控制器（如FC2000、AC2000、DC2000、ME2000、CB2000等）的信号传输。

冗余与可靠性：采用RJ45接口和PVC环保材料，具备耐高温、耐低温、防水防尘特性，确保工业环境下的稳定运行。

数据处理能力：内置32KB用户内存和4K I/O容量，支持复杂工业应用的数据存储与处理需求。

2.技术参数

参数规格

电压输入/输出24V DC（输入/输出均支持）

电流输入/输出1.6A（输入/输出均支持）

工作温度-40°C至70°C

存储温度-40°C至85°C

尺寸84mm×125mm×43mm

接口类型RJ45、M20*1.5电缆接口

3.应用场景

过程控制：与Proficy过程控制系统集成，支持油气、电力、水处理等行业的DCS（分布式控制系统）应用。

运动控制：兼容MSC运动控制器系列，实现多轴闭环控制，适用于电动或液压执行器的精确调节。

工业自动化：扩展PLC模块的I/O接口，提升系统灵活性与扩展性，满足复杂工业场景的信号传输需求。

4.特殊说明

停产状态：该型号已正式停产，但市场上仍有库存可供应。

兼容性：支持与GE Fanuc的PAC（可编程自动化控制器）系统及Proficy软件平台协同工作，例如PAC8000控制器和iFIX HMI。

5.附加功能

抗干扰设计：采用屏蔽电缆和信号隔离技术，减少电磁干扰对信号传输的影响。

环境适应性：符合IP65防护等级，适用于腐蚀、振动等恶劣工业环境。
