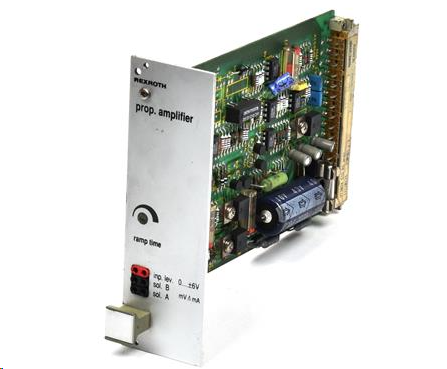

REXROTH VT3024 Product Introduction

REXROTH VT3024 is a high-performance industrial control equipment developed and manufactured by Bosch Rexroth, a globally renowned supplier of transmission and control technology. This product combines advanced signal amplification and hydraulic control technology, and is widely used in industrial automation, mechanical manufacturing, engineering machinery and other fields, providing precise control and efficient operation support for various systems.

Main features and advantages:

High performance signal amplification: Using high-precision amplification technology, it can achieve low distortion amplification of industrial electrical signals, ensuring accurate transmission and execution of system control instructions.

Hydraulic control function: integrates hydraulic direction control, flow regulation, and pressure control functions, flexibly manages the flow direction and parameters of hydraulic oil by adjusting the valve core position and signal input, and meets the requirements of complex mechanical actions.

Compact modular design: The structure is compact and meets European standard dimensions (100 x 160 mm), making it easy to install and integrate with the system. It is suitable for various rack and space constrained scenarios.

Reliable and stable: Made with high-quality materials and advanced technology, it has a high protection level (IP67) and F-class insulated winding, suitable for harsh industrial environments, and can operate stably and reliably for a long time.

Flexible configuration and adjustment: Supports multiple control signal inputs (± 10 V, 4-20 mA), and can adjust polarity, ramp time, and characteristic curves through jumpers or external signals to meet customized needs.

Intelligent integration: compatible with mainstream communication protocols, easy to integrate with other automation devices, and improve system intelligence and efficiency.

Technical specifications:

Parameter item specification description

Model VT3024

Brand Bosch Rexroth

Multi functional control module (combining signal amplification and hydraulic control)

The working voltage range is detailed in the technical manual (supporting a wide range of industrial voltages)

Protection level IP67

Installation method: Modular installation (suitable for rack integration)

Control signal input ± 10 V (differential input), 4-20 mA current input

Hydraulic control functions include directional control, flow regulation, and pressure control

Optional configuration includes slope time switching, polarity adjustment, and measurement socket (T5 option)

Application areas:

Industrial automation: used for precise motion control of equipment such as robotic arms, conveyor belts, and robots.

Construction machinery: direction and flow management of hydraulic systems for excavators, cranes, and loaders.

Machine tools and CNC equipment: achieving hydraulic drive and position control in high-precision machining.

Plastic machinery: hydraulic motors and cylinder control for injection molding machines, die-casting machines, and other equipment.

Metallurgy and Heavy Machinery: Hydraulic Power Unit Control in Metallurgical Production Lines.

Automotive manufacturing: Control of robots and conveyor systems for automated assembly lines.

Other fields: Motion and pressure control of aerospace equipment, logistics and warehousing systems.

Related products:

VT3024S34: an extended model of the same series, enhancing multi axis control and communication functions, suitable for complex system integration.

VT5003/VT5011: Equipped with a proportional amplifier to optimize the driving and control accuracy of hydraulic valves.

VT-VSPA2 series: Analog amplifier board, compatible with VT3024 hydraulic valve control requirements.

Rexroth servo motors (such as MSK series): used in conjunction with VT3024 to achieve closed-loop motion control solutions.
