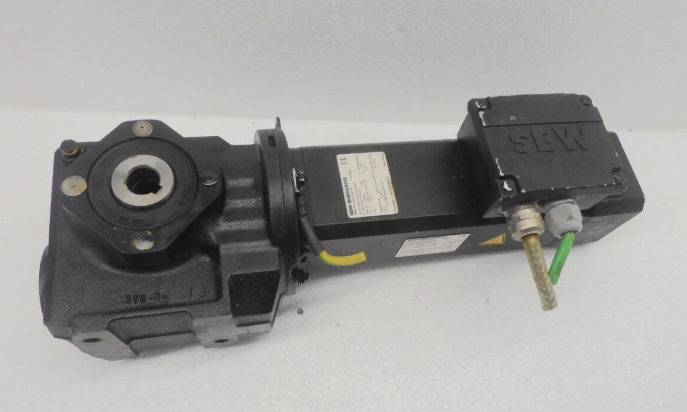

SEW R37DS56L/TF/RH1M/KK
SEW R37DS56L/TF/RH1M/KK Product Introduction
Product Overview
Model: R37DS56L/TF/RH1M/KK
Brand: SEW
Series: Servo Motor
Manufacturer: SEW Transmission System
Product positioning: High precision motion control core component, suitable for precise position, speed, and torque control in the field of industrial automation.
Main features and advantages:
High precision control:
Adopting permanent magnet synchronization technology, achieving a positioning accuracy of ± 0.01 °, supporting high-speed response (response time<5ms), suitable for high dynamic application scenarios.
Integrated temperature monitoring (TF/KTY sensor), real-time feedback of winding temperature to prevent overheating damage and improve operational stability.
High power density and compact design:
Output high torque in a compact volume (diameter ≤ 112mm) (specific values need to refer to model parameters), suitable for installation in narrow spaces.
Adopting a modular structure, it is easy to integrate into equipment such as robots and CNC machines.
Environmental adaptability:
The protection level reaches IP65, suitable for working environments ranging from -10 ℃ to+60 ℃, with strong anti vibration and anti-interference capabilities, suitable for harsh industrial scenarios.
Intelligent compatibility:
Support for MOVIDRIVE ® The driver communicates directly and is compatible with industrial protocols such as EtherNet/IP and DeviceNet, simplifying system integration.
technical specifications
parameter description
Type: Permanent magnet synchronous servo motor
Rated power 3.7kW (typical value)
Maximum torque 120N · m (peak)
Communication interfaces EtherNet/IP, DeviceNet, DH+
Installation method: Axial installation (CM71… 112 series)
Temperature monitoring TF/KTY sensor, supporting overheat protection
Protection level IP65
Working voltage 3-phase 380V ± 10%
application area
Model: R37DS56L/TF/RH1M/KK is widely used in the following scenarios:
Industrial robots: Joint motion control to achieve precise picking, placing, and trajectory tracking.
CNC machine tools: high-precision positioning of spindle and feed axis to improve machining efficiency.
Packaging machinery: synchronously control sorting, packing and other actions to ensure production continuity.
Printing equipment: Adjust the speed and pressure of the printing drum to ensure printing quality.
Related products
DFS56L/TF/RH1M/KK: Synchronous servo motors of the same series, designed specifically for high power density scenarios, complementary to R37DS56L/TF/RH1M/KK, expanding application scenarios.
MPB51A055-503-00: Equipped with driver, supports multi axis synchronous control, optimizes system performance.
SEW R37DS56L/TF/RH1M/KK产品简介
产品概述
型号：R37DS56L/TF/RH1M/KK
品牌：SEW
系列：伺服电机
制造商：SEW传动系统
产品定位：高精度运动控制核心组件，适用于工业自动化领域的精确位置、速度及转矩控制。
主要特点和优势：
高精度控制：
采用永磁同步技术，实现±0.01°的定位精度，支持高速响应（响应时间<5ms），适用于高动态应用场景。
集成温度监测（TF/KTY传感器），实时反馈绕组温度，防止过热损坏，提升运行稳定性。
高功率密度与紧凑设计：
在紧凑体积（直径≤112mm）下输出高扭矩（具体数值需参考型号参数），适配狭小空间安装需求。
采用模块化结构，便于集成至机器人、数控机床等设备。
环境适应性：
防护等级达IP65，适应-10℃至+60℃工作环境，抗振动与抗干扰能力强，适用于恶劣工业场景。
智能兼容性：
支持与MOVIDRIVE®驱动器直接通信，兼容EtherNet/IP、DeviceNet等工业协议，简化系统集成。
技术规格
参数描述
类型永磁同步伺服电机
额定功率3.7kW（典型值）
最大扭矩120N·m（峰值）
通信接口EtherNet/IP、DeviceNet、DH+
安装方式轴向安装（CM71…112系列）
温度监测TF/KTY传感器，支持过热保护
防护等级IP65
工作电压3相380V±10%
应用领域
型号：R37DS56L/TF/RH1M/KK广泛应用于以下场景：
工业机器人：关节运动控制，实现精准拾放与轨迹跟踪。
数控机床：主轴及进给轴的高精度定位，提升加工效率。
包装机械：同步控制分拣、装箱等动作，确保生产连续性。
印刷设备：调节印刷滚筒转速与压力，保证印刷质量。
相关产品
DFS56L/TF/RH1M/KK：同系列同步伺服电机，专为高功率密度场景设计，与R37DS56L/TF/RH1M/KK互补，扩展应用场景。
MPB51A055-503-00：配套驱动器，支持多轴同步控制，优化系统性能。
