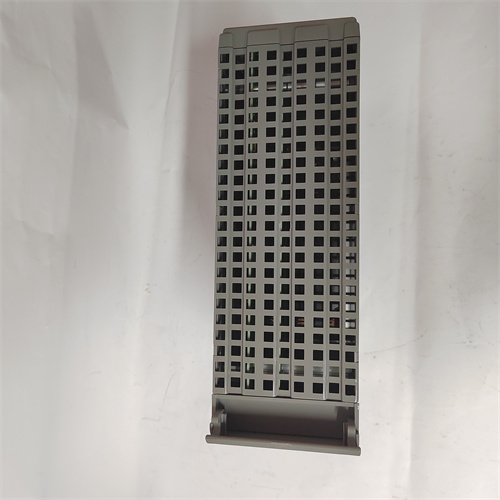

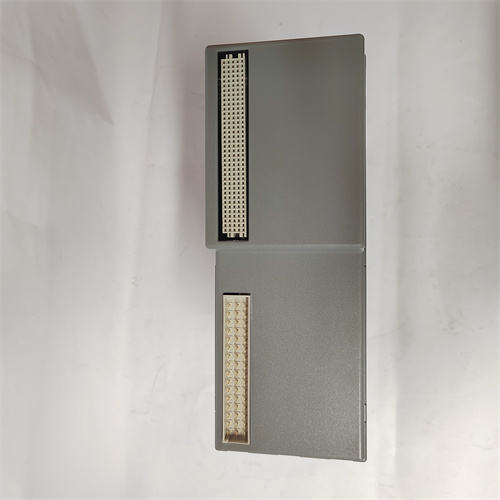

TRICONEX 8111
TRICONEX 8111 is an industrial control module based on triple modular redundancy (TMR) architecture under Invensys, designed for high safety and high availability scenarios, widely used in fields such as petrochemicals, power, rail transit, and nuclear industry. The following is a comprehensive overview of its core functions and technical features:
1. Core functions and architecture
Triple Redundancy (TMR) Design
Adopting triple independent channel parallel operation, each channel executes the same control program, and real-time data consistency is verified through hardware voting mechanism to ensure that single point faults do not affect system operation, in compliance with IEC 61508 SIL 3 and IEC 61511 safety standards.
Hot swappable capability
Support online replacement of faulty modules without the need for downtime maintenance, ensuring process continuity.
High density I/O expansion
A single module can be expanded to 128 channels, compatible with digital, analog, and pulse input/output, meeting complex control requirements.
2. Technical parameters
Parameter specifications
Input voltage 24 V DC or 48 V DC
Output voltage 0-10V DC
Working temperature -40 ° C to 85 ° C
Communication protocols Modbus TCP/IP, Hiway, UCN
NEMA 4X aluminum sealed enclosure, suitable for harsh industrial environments
Dimensions: 100mm x 80mm x 30mm
Self diagnostic function monitors hardware status in real-time, automatically isolates and records faults
3. Application scenarios
Safety interlock system (ESD): used for emergency shutdown control, such as in petrochemical plants and natural gas processing stations.
Fire and Gas Monitoring (F&G): Real time detection of combustible gases and fire signals, triggering safety responses.
Turbine control: speed, vibration monitoring and protection of steam/gas turbines.
Compressor anti surge: prevents equipment damage through pressure and flow control.
Nuclear industry safety system: 1E safety level, ensuring the reliability of nuclear reactor control.
4. Special characteristics
Network protection: Built in deep network protection to prevent data transmission interruption or damage.
Intelligent diagnosis: supports fault location and alarm, reducing downtime.
Multi protocol compatibility: Can be integrated with mainstream systems such as Siemens, Honeywell, ABB, etc.
5. Typical configuration examples
Expansion chassis (8111N): Supports hot swappable module expansion and integrates communication and power redundancy.
Digital Input Module (T8111C): 40 channel isolated input, suitable for Safety Instrumented Systems (SIS).
Analog output module: high-precision pulse control, used for motor speed regulation or valve adjustment.
TRICONEX 8111是英维思（Invensys）旗下一款基于三重模块化冗余（TMR）架构的工业控制模块，专为高安全性和高可用性场景设计，广泛应用于石化、电力、轨道交通、核工业等领域。以下是其核心功能与技术特性的综合概述：
1.核心功能与架构
三重冗余（TMR）设计
采用三重独立通道并行运行，每个通道执行相同控制程序，通过硬件表决机制实时校验数据一致性，确保单点故障不影响系统运行，符合IEC 61508 SIL 3和IEC 61511安全标准。
热插拔能力
支持在线更换故障模块，无需停机维护，保障过程连续性。
高密度I/O扩展
单模块可扩展至128个通道，兼容数字量、模拟量及脉冲输入/输出，满足复杂控制需求。
2.技术参数
参数规格
输入电压24 V DC或48 V DC
输出电压0～10 V DC
工作温度-40°C至85°C
通信协议Modbus TCP/IP、Hiway、UCN
防护等级NEMA 4X铝制密封外壳，适应恶劣工业环境
尺寸100 mm×80 mm×30 mm
自诊断功能实时监测硬件状态，故障自动隔离并记录
3.应用场景
安全联锁系统（ESD）：用于紧急停机控制，如石化厂、天然气处理站。
火气监测（F&G）：实时检测可燃气体、火灾信号，触发安全响应。
涡轮机控制：蒸汽/燃气透平的转速、振动监测与保护。
压缩机防喘振：通过压力与流量控制防止设备损坏。
核工业安全系统：1E级安全等级，保障核反应堆控制可靠性。
4.特殊特性
网络保护：内置深度网络防护，防止数据传输中断或破坏。
智能诊断：支持故障定位与报警，减少停机时间。
多协议兼容：可与西门子、霍尼韦尔、ABB等主流系统集成。
5.典型配置示例
扩展机箱（8111N）：支持热插拔模块扩展，集成通信与电源冗余。
数字量输入模块（T8111C）：40通道隔离输入，适用于安全仪表系统（SIS）。
模拟量输出模块：高精度脉冲控制，用于电机调速或阀门调节。
