Month: June 2026

Description

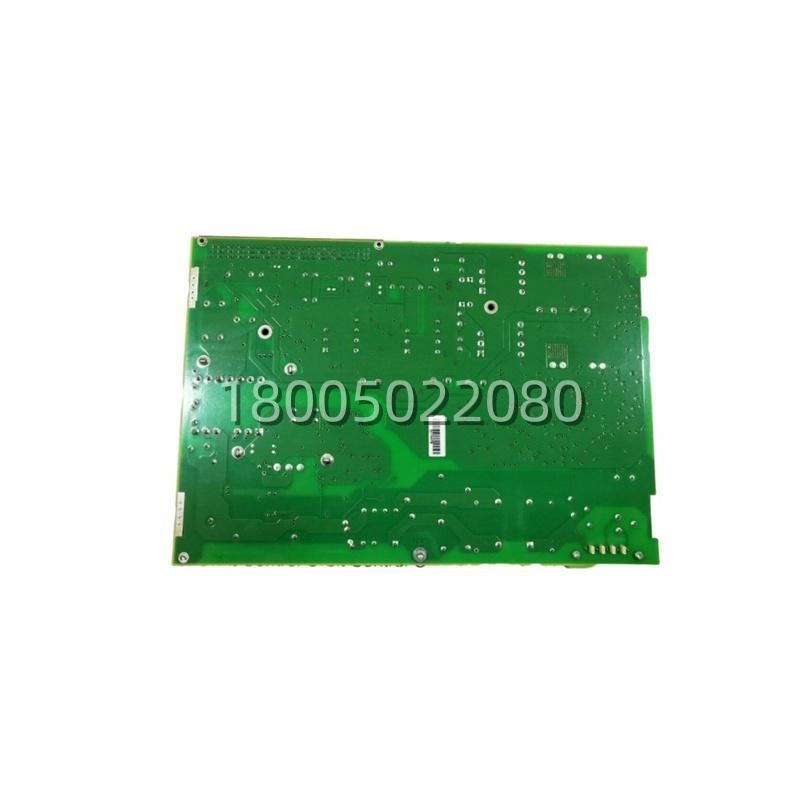

The ABB 1MRK002239-BB​ is an internal Power Supply / Power Board (switching regulator PCB) used as the primary DC power conversion stage inside selected ABB protection relays (670 series IEDs), bay control units, and certain ACS medium-voltage drive control cabinets. It accepts a wide-range AC/DC auxiliary voltage (typically 88–264 V AC or 110–250 V DC) and generates regulated low-voltage DC rails (+5 V, +12 V, +24 V as required by the host) to power the CPU, I/O boards, display, and communication modules within the enclosure.

Application Scenarios

A 230 kV substation’s REB670 bus differential relay unexpectedly displayed “Low Volt – Shutdown” and went offline during a weekend storm when auxiliary AC momentarily dipped. On-site diagnosis revealed the internal ABB 1MRK002239-BB​ power board had suffered a failed primary-side capacitor bank — the unit could no longer sustain output under load. The protection team replaced the board with a pre-tested spare 1MRK002239-BB, reseated the connectors, and restored auxiliary power. The relay passed self-test, the firmware booted normally, and the downloaded configuration was already resident in the CPU board’s non-volatile memory — full protection was back online in under 15 minutes. The site’s protection engineer later noted: “We’ve standardized on keeping a 1MRK002239-BB​ in the spare-parts cabinet for every 670-series panel. It’s a five-minute swap that brings a completely dead relay back to life — far cheaper and faster than replacing the whole IED.”

Parameter

Technical Principles and Innovative Values

The ABB 1MRK002239-BB​ is engineered for high-reliability operation in substation and industrial environments:

• Innovation Point 1 — Universal AC/DC Wide-Range Input:​ The board’s flyback/forward topology accepts both AC mains (88–264 V) and DC station battery (110–250 V DC) without manual selection or jumpers. This simplifies sparing across sites with different auxiliary supplies and ensures continued operation during DC float variations or AC-brownout conditions.
• Innovation Point 2 — Tightly Regulated Multi-Rail Output with Sequencing:​ The 1MRK002239-BB​ provides independently regulated +5 V (for CPU/logic), +24 V (for internal relays, LEDs, optional external auxiliary), and where required ±12 V (for communication transceivers). Soft-start and power-good signaling prevent the host CPU from booting until all rails are within tolerance.
• Innovation Point 3 — Reinforced Isolation & Surge Withstand:​ Input-to-output isolation ≥ 3 kV AC and input surge suppression are designed to withstand typical substation transient environments (switching surges, lightning-induced spikes on station service). This protects downstream sensitive electronics — the CPU and I/O boards — from damage that would otherwise propagate from the auxiliary supply.
• Innovation Point 4 — Built-In Self-Monitoring & LED Diagnostics:​ A green Power-Good LED provides immediate visual confirmation of correct operation during panel walkthroughs or after replacement. The board continuously monitors its own output voltages; if an over-voltage or over-current condition is detected, it latches off or auto-recovers depending on fault type, reporting the condition via absence of the “POK” signal on the backplane.

Description:

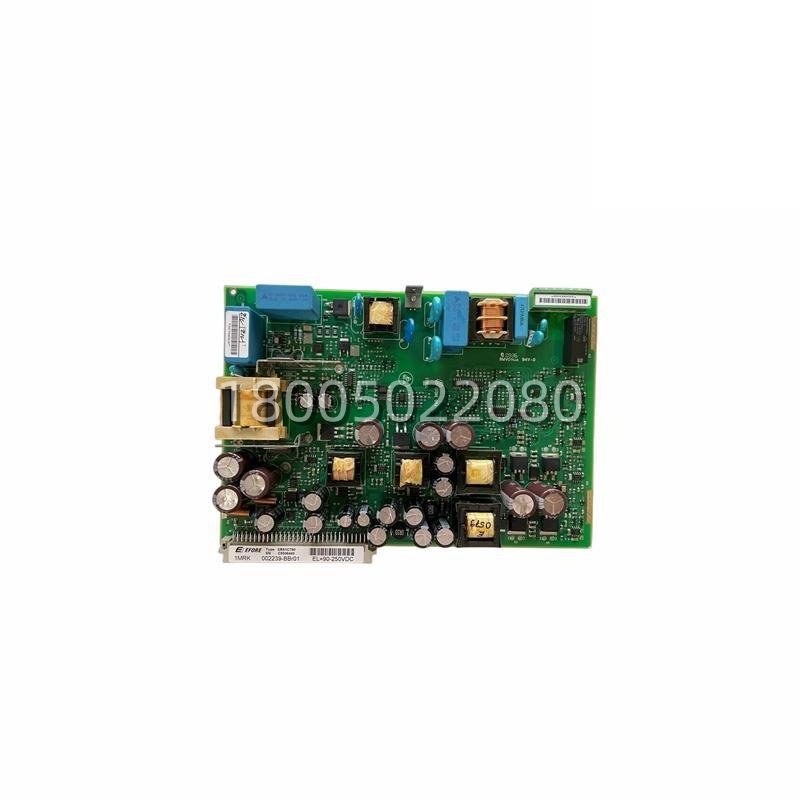

The ABB 1MRK002239-BBR01, also referenced by its type code SR91C790, is a rack-mount Power Supply Module (PSM — Power Supply Module / Protection System Module) manufactured by ABB for use in ABB Relion® 670 series Intelligent Electronic Devices (IEDs), protection relay subracks, and certain DCS/automation backplanes. It converts a wide-range AC or DC input (typically 110–250 V DC / 85–264 V AC) into regulated internal DC rails—commonly +5 V, ±12 V, and +24 V—to power the processor, communication cards, and binary I/O modules housed in the same rack, with galvanic isolation and built-in overload protection.

Application Scenarios:

In a 220 kV substation, a RED670 line differential protection IED suddenly went dark during a routine secondary system inspection—traced to a failed rack power supply that had been in service for 18 years. Because the station battery voltage (220 V DC) fluctuates during switching operations, the replacement unit must tolerate wide input swings and provide clean, isolated DC to the sensitive protection electronics. The maintenance team installed the ABB 1MRK002239-BBR01 (SR91C790)​ as a direct like-for-like swap into the dedicated PSM slot of the Relion 670 rack. The module accepted the 220 V DC station battery without adjustment, locked into the backplane, and the IED booted normally within seconds—all binary status LEDs confirming “Power OK.” The wide-input tolerance and >40 ms ride-through capability of the 1MRK002239-BBR01​ now protect the IED from momentary battery sags during breaker closing, directly addressing the pain point of unexplained protection-drop events during heavy switching operations.

Parameter:

Technical Principles and Innovative Values:

• Innovation Point 1: Wide DC/AC Input with Ride-Through for Substation Battery Systems.​ The ABB 1MRK002239-BBR01​ is specifically engineered to accept the typical 110 V DC or 220 V DC station battery supply—as well as universal AC—and includes bulk capacitance for >40 ms hold-up during switching transients, preventing nuisance IED resets that plague generic switched-mode supplies in switchyards.
• Innovation Point 2: Multi-Rail Regulated Outputs with Galvanic Isolation.​ Unlike a simple 24 V DC brick PSU, the SR91C790​ generates and stabilizes all the internal voltage rails (+5 V logic, ±12 V analog/I/O, +24 V auxiliary) required by the rack’s mixed-signal cards, with full galvanic isolation from the station battery—protecting sensitive A/D converters from ground-loop-induced noise.
• Innovation Point 3: Backplane Integration & Self-Diagnostics with Fail Signaling.​ The module plugs directly into the system backplane and is recognized by the IED firmware. An internal watchdog monitors output regulation; if an undervoltage or overtemperature condition occurs, the front LED changes state and a dry-contact / logic-level “Internal Fault” signal can be wired to the station DC & S system—turning a silent PSU failure into a logged alarm before the IED loses power.

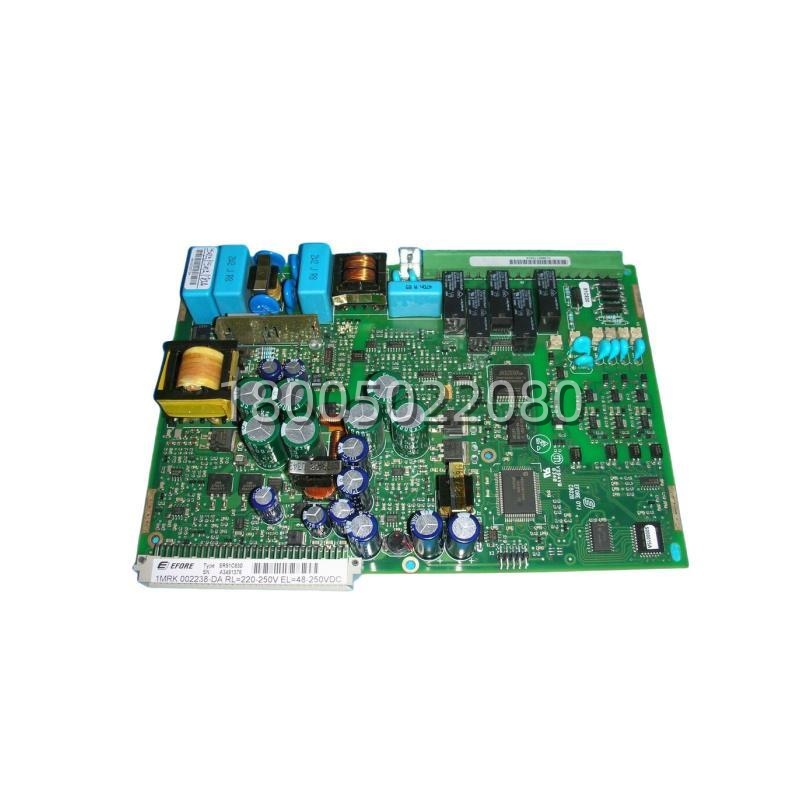

Description:The 1MRK002238-DA, also identified by the type code SR91C830, is an ABB industrial-grade 24 V DC power supply module designed to deliver stable, regulated DC power to ABB protection relay racks (Relion® series auxiliary racks), Bailey INFI 90 / Net 90 DCS panel components, S800 I/O system power feeds, and other 24 V DC control loads. It accepts a universal AC input (85–264 V AC) and provides a clean, short-circuit-protected 24 V DC output with high conversion efficiency, making it a foundational component for reliable control system operation.h2 Application Scenarios:In a large combined-cycle power plant, the control room houses multiple Bailey INFI 90 I/O racks and a standalone annunciator panel fed from a single 24 V DC power supply that had aged beyond its design life—output ripple was increasing and the DC bus occasionally dipped below the undervoltage lockout threshold during summer peak loading. The E&I team proactively replaced the failing unit with the 1MRK002238-DA SR91C830​ power supply module, paralleled with a second unit for N+1 redundancy. The 1MRK002238-DA​ delivered a rock-steady 24.0 V DC under full load, with the front-panel green LED confirming healthy operation at a glance. More importantly, the built-in overload and short-circuit protection gave the team confidence that a downstream field-wiring fault on one I/O card wouldn’t cascade to a total rack power loss. Since the swap, the plant has gone through two summer peaks with zero DC-power-related trips. The lead technician remarked that the 1MRK002238-DA​ “restored margin we didn’t know we’d lost—now the DC bus is boring again, which is exactly what we want.”h2

Parameter:

h2 Technical Principles and Innovative Values:

• Innovation Point 1 — Universal AC Input with Active Power Factor Correction (select models).​ The 1MRK002238-DA​ is designed to operate globally without voltage selector switches, accepting 85–264 V AC single-phase. This eliminates the common mistake of mis-setting a 115/230 V selector when relocating or replacing a PSU. High-frequency switch-mode topology with PFC (where fitted) minimizes input current draw and reduces heating in upstream UPS/transformer windings.
• Innovation Point 2 — True Short-Circuit Proof & Hiccup-Mode Auto-Recovery.​ Unlike fused linear supplies that require manual reset after a fault, the 1MRK002238-DA​ enters a low-power “hiccup” state on output short or severe overload, periodically testing for fault clearance. Once the short is removed (e.g., a bad I/O card is pulled), the unit automatically resumes regulation—no breaker to flip, no technician dispatched for a simple wiring fault. This self-recovering behavior is critical in remote or unmanned substations.
• Innovation Point 3 — Redundancy-Ready Design with Diode-OR Capability.​ The module’s output stage is stable when paralleled with an identical unit through external OR-ing diodes (or ABB redundancy module), enabling N+1 redundant architectures for critical DCS/IED power feeds. The 1MRK002238-DA‘s tight output regulation and low drift ensure balanced load sharing, extending the life of both units versus cycling a single oversized supply near its thermal limit.

Description:

The ABB 1MRK002133-ABR02​ (revision ABr02) is a Binary Output Module implemented as a printed circuit board (PCB) within ABB’s 1MRK I/O family, designed for use in ABB RELION® 650/670-series protection and control IEDs, bay controllers, and compatible substation automation racks. It translates digital commands from the protection processor or station bus into eight independent, galvanically isolated electromechanical relay contact closures (typically SPDT Form C), used to drive circuit-breaker trip/closing coils, interposing relays, alarm annunciators, and control-room indications in MV/HV switchyards.

Application Scenarios:

Imagine a 220 kV substation where the afternoon relay self-test logs a “Binary Output Channel 3 — Contact Weld Detected” alarm on the aging output card controlling the line-breaker trip and local horn. The protection engineer confirms the 1MRK002133-ABR02​ as the source. During a planned 10-minute outage, the faulty board is released from its DIN-clip or extender-slot latch, field wires (including the common trip-circuit supervision pair) are transferred to the new unit’s screw terminals, and a fresh 1MRK002133-ABR02​ is installed. On restoration of 24 V DC auxiliary, the IED recognizes the module, passes its power-on self-test, and a manual close/trip test from the control room verifies correct operation of all eight outputs. Thanks to the 1MRK002133-ABR02‘s optical isolation between the 5 V logic backplane and the 110–220 V DC field contacts, ground-loop-induced spurious operations are prevented even in EMI-heavy GIS enclosures. The key pain point solved: a direct-form-fit PCB swap that restores certified binary-output functionality—complete with contact-weld and open-load diagnostics—without disturbing CT/VT wiring, protection settings, or the IED main unit, getting the bay back to full compliance in minutes.

Parameter:

Technical Principles and Innovative Values:

The 1MRK002133-ABR02​ is the final hardened interface between a protection-algorithm decision and the physical actuation of primary plant equipment, incorporating substation-specific safeguards absent from generic PLC output cards.

• Innovation Point 1: Continuous Contact-Weld & Open-Load Supervision.​ The 1MRK002133-ABR02​ actively compares each relay’s expected vs. actual contact state after a command and during idle periods (via brief test pulses in non-safety states). If a trip-contactor contact welds after clearing a fault, or a broken wire prevents the field device from seeing the command, the module raises a specific diagnostic code to the IED—alerting operations before a real fault goes uncleared. This is a cornerstone of dependable protection schemes.
• Innovation Point 2: Substation-Grade EMI Immunity via Dual-Stage Isolation.​ Each output group is separated from the microprocessor backplane by high-withstand optocouplers and from other groups by the relay coil/magnetic circuit. This blocks common-mode transients from disconnector switching (often >2–3 kV) and prevents latch-up of the protection processor—a failure mode generic solid-state outputs cannot tolerate in HV environments.
• Innovation Point 3: Protection-Class Deterministic Timing with Minimal Jitter.​ The 1MRK002133-ABR02​ is timed to execute a trip command from the IED’s protection algorithm to physical contact closure in under 20 ms with negligible jitter. This deterministic behavior preserves fault-clearing-time coordination in grading studies and is fundamentally different from scan-based remote I/O blocks that may add 50–100 ms variability.

Description

The ABB 1MRK001370-DAR01​ (commonly called the DAR01 board) is an internal rear-panel system and communication interface module designed for ABB REx670 V2.x series protection and control IEDs (REG670, REL670, RET670, REC670). It provides the physical layer and protocol handling for station-level communication—supporting IEC 61850 (GOOSE / MMS via optical fiber or RJ-45), ABB SPA bus, and Modbus RTU/TCP—as well as the local service port (USB / RS-232) and time-synchronization inputs (IRIG-B / SNTP / PPS). The board plugs into the rear of the relay / bay unit housing and interfaces with the main CPU board via the internal backplane.h2 Application ScenariosPicture a 400 kV substation where an ABB REG670 line-protection IED suddenly drops off the IEC 61850 station bus while the protection functions themselves continue to operate—a classic symptom of a failed communication board. The relay’s GOOSE subscriptions time out, alarming the SCADA, and the engineer can no longer download settings remotely. Rather than replace the entire IED (which would require reloading the SCL file, re-mapping GOOSE, and scheduling a protection outage), the team sources a version-matched ABB 1MRK001370-DAR01 (DAR01 revision). With the DC supply isolated, the rear cover is removed, the old PCB is extracted from its guide slots, and the new 1MRK001370-DAR01​ is seated on the rear-frame connectors. On power-up, the board is auto-recognized; the existing MAC / IP / VLAN configuration stored in the CPU’s non-volatile memory is applied automatically, and GOOSE traffic resumes within seconds. This scenario highlights the 1MRK001370-DAR01‘s strategic value: it is the targeted, low-cost spare that restores full station-communication capability without disturbing the commissioned protection logic.h2

Parameter

*Note: Exact port count (LC vs ST fiber, number of RJ-45s), protocol license enablement, and rear-faceplate cutout must be confirmed by comparing the removed board photo and host device nameplate before ordering.h2 Technical Principles and Innovative ValuesThe 1MRK001370-DAR01​ is a protocol-acceleration and physical-interface board, offloading real-time messaging from the main protection CPU.

• Innovation Point 1 – Dual-Port Ethernet with IEC 61850 Redundancy: The 1MRK001370-DAR01​ supports two independent 100 Mbps Ethernet ports (optical and/or copper) enabling station-bus redundancy (RSTP / PRP/HSR in later firmware). GOOSE multicast frames are hardware-timestamped at the MAC layer, ensuring μs-level precision for breaker-tripping and interlocking messages—far superior to software-stack timestamping.
• Innovation Point 2 – Multi-Protocol Coexistence on a Single Board: The same board concurrently handles IEC 61850 MMS for SCADA/engineering, GOOSE for peer-to-peer protection signalling, legacy ABB SPA telegrams for backward-compatible bay-level communication, and Modbus for third-party HMI/RTU links. This eliminates the need for external protocol gateways in mixed-vintage substations and simplifies cabling.
• Innovation Point 3 – Transparent Swap Preserves All Network Settings: All communication parameters (IP, subnet, VLAN ID, GOOSE APPID, SCL configuration reference) are stored in the relay’s main CPU non-volatile memory—not on the 1MRK001370-DAR01. Swapping the board requires no re-entry of network settings; the replacement board is enumerated on the backplane at boot and inherits the existing configuration, minimizing commissioning risk and MTTR.

Description:

The ABB 1MRK000614-ABR00​ is a TRM (Terminal / Interface) Module / Binary Output Board developed by ABB for use in protection relay units, substation control cubicles, and distributed control system (DCS) I/O stations. It provides multiple independently isolated electromechanical relay output contacts—typically 8 SPST-NO (Form A) channels rated up to 5 A / 250 V AC—to translate low-level control logic or protection trip commands into robust, high-voltage switching signals for breakers, annunciators, and interposing relays.

Application Scenarios:

A 220 kV substation using ABB RET/REF series protection relays and a bay-level control unit lost the ability to issue “Close” and “Trip” commands to the line breaker from the local control switch and SCADA. Diagnosis revealed that the internal binary output / TRM board — the ABB 1MRK000614-ABR00​ — had suffered contact fatigue after 15 years of service, with several relay channels failing to close. The protection engineer de-energized the panel, withdrew the faulty PWA, inserted a verified replacement 1MRK000614-ABR00, and restored power. All eight binary output channels tested OK within minutes — no firmware download, no I/O address changes, no rewiring. The station’s remote tripping and closing capability was fully restored ahead of the next shift. This scenario underscores the 1MRK000614-ABR00‘s role as a mission-critical, field-replaceable interface that bridges DCS/protection logic with real-world high-power switching — and why keeping a tested spare on the shelf is sound asset management.

Parameter:

Technical Principles and Innovative Values:

• Innovation Point 1 — Heavy-Duty Electromechanical Relay Outputs with Optical Drive.​ The ABB 1MRK000614-ABR00​ uses opto-coupled drivers to activate its Form-A relay contacts, completely isolating the sensitive control/logic bus from the switched field voltage. This protects the host controller from inductive kickback, ground faults, and transient over-voltages that commonly occur when switching breaker trip coils or audible alarms.
• Innovation Point 2 — Host-Bus Auto-Recognition & Non-Volatile Configuration.​ When installed in a compatible ABB rack (protection or 500-series controller), the 1MRK000614-ABR00​ is automatically enumerated; its output map corresponds to predefined addresses in the application database. The board retains its operational identity in non-volatile memory, so a replacement unit with matching part number requires no reconfiguration — a true “plug, seat, and go” spare part.
• Innovation Point 3 — Per-Channel LED Diagnostics & Contact Monitoring.​ Each relay channel has a dedicated front-facing LED that illuminates when the coil is energized, giving maintenance staff instant visual confirmation of output state without accessing the controller HMI. Some versions also support contact-monitoring feedback to the host for broken-wire or welded-contact detection, further enhancing system safety integrity.

Description:The ABB 1MRK000614-AAR01, also designated as the AAR01 Advanced Conversion Module, is a compact signal and protocol conversion interface manufactured by ABB for industrial automation and control system integration. It is designed to bridge dissimilar signal standards (digital / analog) and communication protocols—most commonly converting hard-wired binary or analog field signals into Modbus RTU frames over RS-485, or vice versa—allowing legacy equipment, stand-alone instruments, and third-party devices to communicate with ABB DCS, PLC, or SCADA systems without costly full-scale modernization.h2 Application Scenarios:A petrochemical blending skid originally built with standalone local controllers had four critical tank-high-level dry-contact switches and two 4–20 mA temperature transmitters that the main ABB System 800xA DCS could not directly read—the DCS had no spare local DI/AI points, and homerunning new multi-core cables back to the main MCC was impractical. The integrator installed the ABB 1MRK000614-AAR01​ in the local junction box, powered it from the existing 24 V DC supply, and wired the four dry contacts and two analog loops into its configurable I/O channels. The module serialized the data onto the plant’s RS-485 Modbus RTU network, making all six field values available to the DCS as standard holding/input registers. The 1MRK000614-AAR01​ solved the core pain point—no new I/O rack, no recabling, no DCS hardware expansion—while delivering real-time field status to the control room within a single shift. This demonstrates the 1MRK000614-AAR01‘s strategic role in brownfield integration, legacy-equipment “lifeline” projects, and phased modernization.h2

Parameter:

h2 Technical Principles and Innovative Values:

• Dual-Role Signal & Protocol Bridging:​ The 1MRK000614-AAR01​ does more than simple galvanic isolation—it actively digitizes analog or binary field inputs, maps them to Modbus register addresses, and transmits them over RS-485, or conversely interprets Modbus commands to drive local outputs. This dual-function architecture eliminates the need for separate signal isolators, A/D converters, and protocol gateways in small-point-count applications.
• Configurable I/O Mapping Without Programming:​ Through onboard DIP switches or a simple PC configuration tool (where applicable), channel types, Modbus slave address, and register offsets can be assigned without writing ladder logic or modifying the host DCS database structure—greatly accelerating commissioning on retrofit jobs.
• Legacy System Life Extension:​ By allowing non-networked field devices—old relay panels, standalone temperature controllers, pneumatic positioners with 4–20 mA—to be read by modern Ethernet/IP or Modbus TCP networks (via an upstream gateway), the ABB 1MRK000614-AAR01​ postpones capital-intensive full-replacement projects and preserves proven field instrumentation.

h2 Application Cases and Industry Value:Case 1 – Power Plant Auxiliary Boiler Legacy Integration:An older auxiliary boiler package had its own local panel with high/low flame-failure switches and drum-level floats wired only to local pilot lights. The plant wanted these statuses visible in the new ABB 800xA DCS. Rather than pull new homeruns 200 m back to the main I/O room, they installed a ABB 1MRK000614-AAR01​ inside the boiler local panel, mapped the six dry contacts to Modbus registers, and daisy-chained it onto the plant’s existing RS-485 network. Within hours the DCS displayed all boiler interlock statuses with < 100 ms update time. The plant avoided both cabling cost and a boiler-control-system replacement.

Description

The 1MRK000508-CDR03​ (also cross-referenced as 1MRK000007-7) is an ABB Relion® 670 Series Digital Input (DI) Expansion PC Board / Control Board Assembly, manufactured by ABB Power Grids for use inside ABB REx670 V1.1 protection and control IEDs (Intelligent Electronic Devices), including RET670, REC670, RED670, and REB670. This plug-in printed circuit board adds supplementary binary input channels — typically monitoring 110–250 V DC contact closures from circuit breakers, disconnectors, lockout relays, and auxiliary plant equipment — and communicates acquired status data to the relay’s main CPU via the internal backplane bus. The 1MRK000508-CDR03​ is a passive/expansion interface board (not a standalone DCS module), designed for tool-free insertion into the designated I/O slot of a Relion 670 IED chassis, enabling flexible expansion of protection-scheme monitoring points without external marshalling.

h2 Application Scenarios

Consider a 132 kV substation where a RET670 transformer differential relay already monitors the high-voltage side breaker position and tap-changer limit contacts, but the protection scheme also requires supervision of the LV-side disconnector position, Buchholz relay alarm, winding-temperature high-alarm, and an external “protection-block” pushbutton from the local control panel. With only the base-unit binary inputs exhausted, the utility adds a 1MRK000508-CDR03​ DI expansion board into the IED’s spare I/O slot. The extra channels are wired to the additional 110 V DC auxiliary contacts; the relay auto-detects the board on next power-up via PCM600. When a Buchholz alarm contact closes, the 1MRK000508-CDR03​ captures the event with < 1 ms resolution and passes it to the IED for SOE logging and annunciation — no external DI marshalling cabinet needed. This directly solves the pain point of I/O exhaustion in compact relay panels and avoids costly panel rewiring or relay-model upsizing. Each occurrence of the model number in narrative text is shown in bold as 1MRK000508-CDR03.

h2 Parameter

h2 Technical Principles and Innovative Values

• Innovation Point 1 — Seamless Auto-Enumeration Within the Relion Ecosystem:​ When the 1MRK000508-CDR03​ is inserted into a supported REx670 IED, the main CPU reads its hardware ID via the backplane and automatically makes the additional binary input points available in PCM600 — no firmware patch or manual I/O mapping is required. This plug-and-play behavior eliminates configuration errors and shortens commissioning time versus generic add-on DI modules.
• Innovation Point 2 — Substation-Grade Input Thresholding & Noise Rejection on Expansion Points:​ The added DI channels on the 1MRK000508-CDR03​ share the same proven 110–250 V DC threshold discrimination and programmable debounce filtering as the base-unit inputs, rejecting induced AC/DC noise on long cable runs in EHV switchyards — a critical requirement for undistorted breaker-status SOE recording.
• Innovation Point 3 — Space-Efficient Internal Expansion Preserving Panel Real Estate:​ Rather than requiring an external DI marshalling unit or a larger relay model, the 1MRK000508-CDR03​ occupies an existing spare slot inside the IED casing, keeping the control panel footprint unchanged while increasing monitored points — an economical solution for brownfield protection upgrades.

Description:

The ABB 1MRK000508-BDR02​ (order/spare reference 1MRK000007-7) is a Binary / Digital I/O PC board — also called a BDR (Binary Digital Relay) interface card — designed for internal mounting in ABB protection and control IEDs such as the RET670 transformer differential, REG670 line protection, REB103 busbar protection, and related Relion® / RADSS chassis. It is not a standalone field I/O module but a sub-assembly that interfaces the relay’s main processing board (GD-type card) with the physical binary input contacts (e.g., protection enable/disable, CB position, external interlocks) and binary output contacts (trip, close, alarm, LED drive). All I/O channels are opto-isolated from the logic section, and the board communicates with the CPU via the internal GD-backplane bus.

Application Scenarios:

A 132 kV gas-insulated substation using ABB RET670 IEDs logged a persistent “Binary Input Channel 5 Failure / Open Circuit” self-diagnostic despite the external contact being healthy and correctly wired. Resistance checks on the field side were normal. After ruling out the marshalling-terminal wiring, technicians removed the ABB 1MRK000508-BDR02 (1MRK000007-7)​ board from the relay’s internal card cage and observed a cracked solder joint on the optocoupler array servicing the affected channel — a symptom of long-term thermal cycling in an unconditioned outdoor kiosk. The board was swapped with a verified spare, the IED re-seated the card, passed POST, and the binary input functioned correctly. The 1MRK000508-BDR02​ directly solved the pain point of an otherwise untraceable “phantom” I/O fault inside a protection relay — when this board degrades, individual DI/DO channels drop out while the rest of the relay appears functional. Having the correct spare on the critical-list prevented a false trip investigation that could have delayed bay return-to-service by days.

Parameter:

Technical Principles and Innovative Values:

The ABB 1MRK000508-BDR02 (1MRK000007-7)​ is purpose-built for the high-integrity demands of protection-relay I/O, not generic digital interfacing.

• Innovation Point 1 — Independent Per-Channel Opto-Isolation with Debounce Filtering:​ Each binary input channel has its own optocoupler and RC debounce network, tuned to reject contact bounce and substation switching transients. This ensures that protection-enable or CB-position contacts are interpreted cleanly by the protection algorithm without false triggering — a key differentiator from low-cost PLC DI cards.
• Innovation Point 2 — Fail-Safe & Watchdog-Monitored Output Stage:​ Binary outputs (trip/close/alarm) are continuously monitored by the main CPU via return-status bits on the GD-bus. If the 1MRK000508-BDR02​ detects a stuck relay contact or loss of supply to the output drivers, it reports a hardware fault to the IED, forcing the relay into a defined safe state — supporting compliance with IEC 60255fail-safe principles.
• Innovation Point 3 — Hot-Swap Awareness in Multi-Board IED Architectures:​ In IEDs with multiple BDR boards (e.g., BDR01 + BDR02 for expanded I/O), the backplane enumerates each card at boot. The 1MRK000508-BDR02​ stores a board-ID EEPROM that lets the CPU detect correct insertion and I/O mapping — mismatched boards will cause a self-test error rather than silent mis-operation, protecting against mis-wired replacement errors.

Description

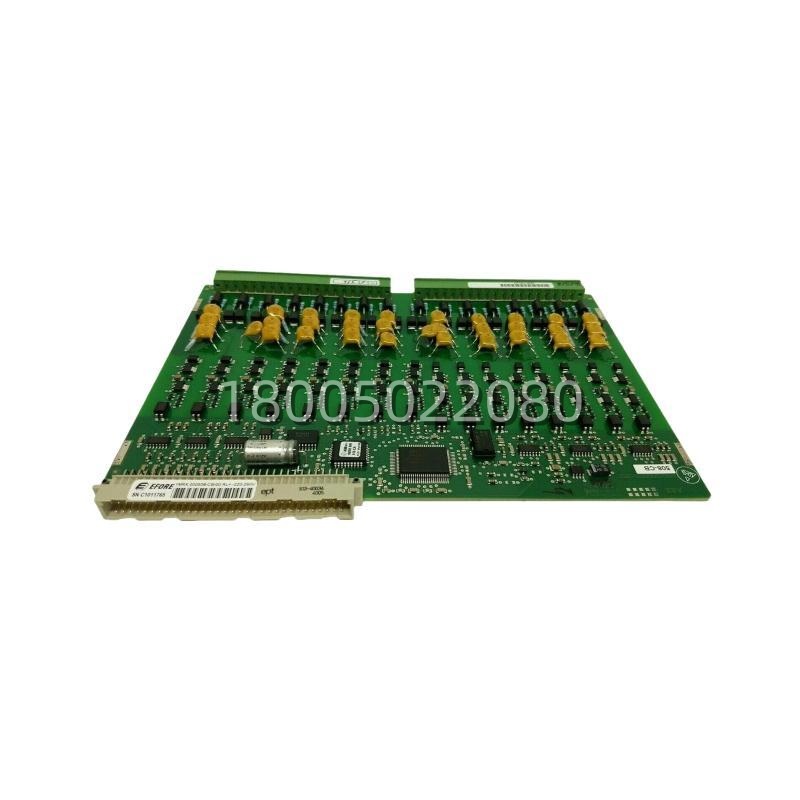

The 1MRK000508-BBR00​ (also referenced as 508BBRL, with configuration/index code 1MRK000005-392) is a Binary / Discrete Input Circuit Board (I/O card) manufactured by ABB, designed as an internal core board for ABB protection relays and measurement & control devices such as the REF615, RET670, REL series, and compatible DCS extension stations. It acquires 16 channels of 24 V DC switch / dry-contact signals—breaker positions, isolator status, pushbutton commands—and transfers them to the host IED’s processing unit via the internal backplane bus, with optical isolation between the field side and the logic side.

Application Scenarios

Picture a 132 kV substation where an ABB REF615 feeder-protection relay begins reporting “I/O Board Failure” and one bay’s circuit-breaker position telemetry freezes on the SCADA. The protection element itself is healthy, but the internal binary-input card has failed after 18 years of continuous service. Replacing the entire IED would mean re-terminating CT/VT secondaries, reloading settings, and a multi-hour outage. Instead, the protection technician powers down the bay, slides the cover, extracts the faulty PCB, and installs a verified 1MRK000508-BBR00​ matching the BBR00 hardware revision and index 1MRK000005-392. On power-up the IED passes self-test, the CB position reappears on the mimic, and the bay is re-armed within 30 minutes. The 1MRK000508-BBR00​ directly solves the legacy-spares gap for utilities and process plants needing to keep certified ABB protection assets online—turning a potential bay outage into a simple board-level swap.

Parameter

Technical Principles and Innovative Values

• Innovation Point 1 — Opto-Isolated Per-Channel Conditioning:​ Each digital input on the 1MRK000508-BBR00​ passes through an individual optocoupler with RC debounce filtering. This rejects contact bounce and induced transients from switching surges in high-voltage switchyards, ensuring clean, glitch-free status reporting to the protection processor—a critical requirement for correct breaker-position supervision and interlock logic.
• Innovation Point 2 — Backplane Auto-Enumeration & Plug-Compatibility:​ The board carries an EEPROM storing its hardware revision (BBR00) and channel map. When inserted, the host IED auto-detects the card type and assigns the correct memory-mapped addresses—no DIP-switch setting or manual reconfiguration is needed, provided the IED firmware supports the BBR00 variant. This makes the 1MRK000508-BBR00​ a true “remove-and-replace” spare.
• Innovation Point 3 — Co-Designed for IEC 61850IED Architecture:​ Unlike generic digital-input cards, the 1MRK000508-BBR00​ is optimized to feed binary status directly into the IEC 61850 GOOSE / MMS data model of REF615-class devices. Status changes are time-stamped at the IED level for precise SOE recording, supporting sub-cycle disturbance analysis and sequence-of-event forensics in digital substations.

Application Cases and Industry Value

A Middle Eastern utility operating thirty ABB REF615 feeders in a 33/11 kV distribution substation noticed one bay’s SCADA mimic showed “CB Position Unknown” and the relay front panel logged an intermittent I/O error. A spare was not stocked originally. Rather than schedule a full IED change-out, the utility procured a tested ABB 1MRK000508-BBR00 (1MRK000005-392).During the next planned bay outage the old board was withdrawn, the new 1MRK000508-BBR00​ seated into the REF615 backplane, and 24 V DC restored. The IED passed all self-tests, the CB position re-synchronised, and the I/O error cleared. The protection engineer stated: “The 1MRK000508-BBR00​ dropped straight in—no settings reload, no wiring touched. We had the bay back in service in 25 minutes. This is exactly why we maintain a stock of these internal boards.”The intervention deferred a full relay replacement (estimated USD $8 K+) and preserved the existing CT/VT wiring, settings file, and arc-flash study documentation.
