The ABB ABRC-65C​ is a versatile, universal inverter communication board designed for ABB’s industrial AC drives, such as the ACS 600, 800, and ACH series. It functions as a programmable gateway, providing a configurable slot for various plug-in fieldbus adapters, enabling the drive to communicate seamlessly with PLCs, DCS, and SCADA systems over a wide range of industrial networks.

In a modern bottling plant, a central PLC controls dozens of conveyor motors, each driven by an ACS 800 variable frequency drive. The plant engineer needs to monitor each drive’s status (speed, current, fault codes) and send precise speed setpoints in real-time. Instead of complex analog wiring and discrete I/O points, they install an ABB ABRC-65C​ communication board in each drive. Into the slot on the ABRC-65C, they plug a specific fieldbus adapter module—for example, a PROFIBUS DP​ slave module. Each drive is then given a unique address and connected to the plant’s high-speed PROFIBUS network. The PLC can now read hundreds of parameters from and write commands to each drive over a single cable. The ABRC-65C​ solves the challenge of scalable, deterministic, and data-rich communication, replacing dozens of wires with a single network cable, reducing installation cost, cabinet space, and potential points of failure, while enabling advanced condition monitoring and control strategies.

The ABB ZMU-02​ is a dedicated, non-volatile memory card designed for use with ABB’s AC drives, particularly within the ACS550, ACS580, and related series. It serves as a portable storage medium for securely backing up, transferring, and restoring drive parameters, configurations, and firmware. This card is an essential tool for drive commissioning, maintenance, and fleet management, enabling quick setup of multiple drives, reliable recovery from faults, and safe firmware upgrades.

In a large water treatment plant with 50 identical pump drives, a technician needs to commission a replacement ACS580 drive after a failure. Instead of manually entering hundreds of parameters from a paper manual—a slow and error-prone process—the technician uses the ABB ZMU-02​ memory card. A backup of the original drive’s configuration was previously saved onto this card. The technician inserts the ZMU-02​ into the slot on the new drive, selects “Restore Parameters” from the drive’s control panel, and within seconds, the new drive is fully configured with all application-specific settings: motor data, PID loop parameters, fault management settings, and communication macros. The ZMU-02​ solves the critical pain points of reducing commissioning time from hours to minutes, eliminating parameter entry errors, and ensuring consistency across a fleet of drives, directly reducing downtime and operational risk.

The ABB ZMAC-551​ is a sophisticated inverter driver board designed for high-performance AC drive systems, serving as the critical interface between the drive’s control logic and the power switching stage. This intelligent board generates precise gate drive signals, implements advanced protection functions, and provides comprehensive monitoring for Insulated-Gate Bipolar Transistors (IGBTs) in variable frequency drives. It plays a vital role in ensuring efficient power conversion, reliable switching, and safe operation of industrial motor control systems.

In a high-speed centrifuge system for pharmaceutical production, the motor must accelerate to 15,000 RPM with absolute smoothness and maintain precise speed control despite varying load conditions. The ABB ZMAC-551​ inverter driver board is the critical component enabling this performance. It receives PWM signals from the main controller and generates optimized gate drive voltages for the IGBTs in the inverter stage. Its advanced dead-time management prevents shoot-through currents, while its active clamping circuits protect against voltage spikes during switching. The board’s real-time monitoring detects minute changes in IGBT switching characteristics, providing early warning of potential failures. This application demonstrates the board’s crucial role in achieving smooth, efficient, and reliable variable frequency operation, directly addressing pain points related to motor control precision, system reliability, and equipment protection in critical processes.

The ABB ZINT-792 is a critical Inverter Driver Board, also known as a Gate Drive Board, designed for high-power industrial AC drives and inverters. This board serves as the intelligent interface between the low-voltage control signals from the drive’s main computer and the high-power Insulated Gate Bipolar Transistor (IGBT) modules. Its primary function is to amplify and condition PWM (Pulse Width Modulation) control signals to precisely and safely switch the IGBTs on and off, thereby generating the variable voltage and frequency output that controls the motor.

In a metals processing plant, a reversing cold mill uses multiple multi-megawatt synchronous motors driven by high-power inverters. The precise timing of the IGBT switching directly determines the quality of the steel output; a mistimed or weak gate signal can cause excessive heating, voltage spikes, or even catastrophic failure of a $100,000 IGBT module. The ABB ZINT-792​ driver board is mounted directly onto or adjacent to each IGBT power stack. It receives the low-power PWM commands from the main control board. Its sophisticated circuitry then generates the high-current (amps), precisely timed voltage pulses (typically ±15V) required to charge and discharge the IGBT’s gate capacitance optimally. It monitors the IGBT’s status in real-time, providing essential protections. If it detects a short-circuit condition in the motor, the ZINT-792​ can shut off its IGBT within microseconds—faster than the main CPU can react—preventing a destructive failure. This application underscores the board’s role in solving the paramount pain points of power stage reliability, switching efficiency, and active protection of high-value power components.

The ABB ZINT-592​ is a versatile and robust interface board manufactured by ABB, designed to serve as a critical signal conditioning and interfacing component within various industrial control and automation systems. This board typically functions as a universal I/O interface, providing isolation, conversion, and signal processing between field devices and the central control system, ensuring reliable data acquisition and command execution in demanding industrial environments.

In a large chemical processing facility, critical temperature and pressure transmitters scattered throughout the plant send 4-20mA signals to the central control room. The raw field signals are susceptible to electrical noise from high-power equipment. The ABB ZINT-592​ Interface Board, installed in a remote I/O cabinet near the process units, acts as the first line of defense. It receives these analog signals, provides galvanic isolation to break ground loops, filters out high-frequency noise, and converts them into clean, standardized signals for transmission to the Distributed Control System (DCS). When a reactor’s temperature reading suddenly becomes erratic, the diagnostic capabilities of the ZINT-592​ can help determine if the issue is a failing transmitter, a wiring problem, or internal board failure, enabling rapid troubleshooting and preventing potential process safety incidents.

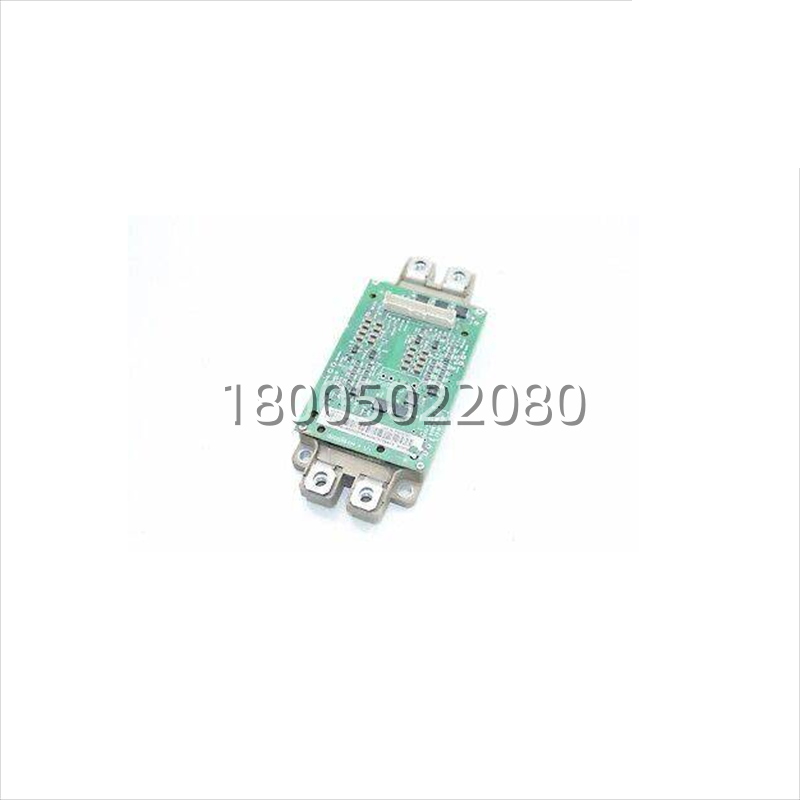

The ABB ZGAD-582​ is a critical Drive Control Logic Board manufactured by ABB, designed as the central intelligence unit for specific series of industrial AC variable frequency drives (VFDs). It serves as the main printed circuit board (PCB) that houses the microprocessor, memory, and core control circuitry. This board is responsible for executing the drive’s firmware, processing user commands and feedback, calculating motor control algorithms, and managing all communication and I/O functions, acting as the “brain” of the drive.

In a large HVAC system for a commercial high-rise, multiple ABB drives control the speed of chilled water pumps. One drive begins to exhibit erratic behavior: the display shows garbled text, it fails to respond to start/stop commands from the building management system, and eventually faults with a “CPU Error” or “Watchdog” alarm. The maintenance team isolates the drive and powers it down. Diagnostic LEDs on the internal boards are dark or flashing an error pattern. The issue is traced to the core processing unit. The technician replaces the ABB ZGAD-582​ drive board, which hosts the main processor and system memory. After installation and carefully reloading the drive’s specific application parameters (pump curve settings, PID values) from a backup, the drive powers up normally. The display is clear, communication is restored, and the pump returns to efficient variable speed operation. This scenario highlights the ZGAD-582‘s role as the central controller; its failure causes a total loss of drive intelligence, and its replacement is a targeted repair that restores full functionality without replacing the entire power chassis.

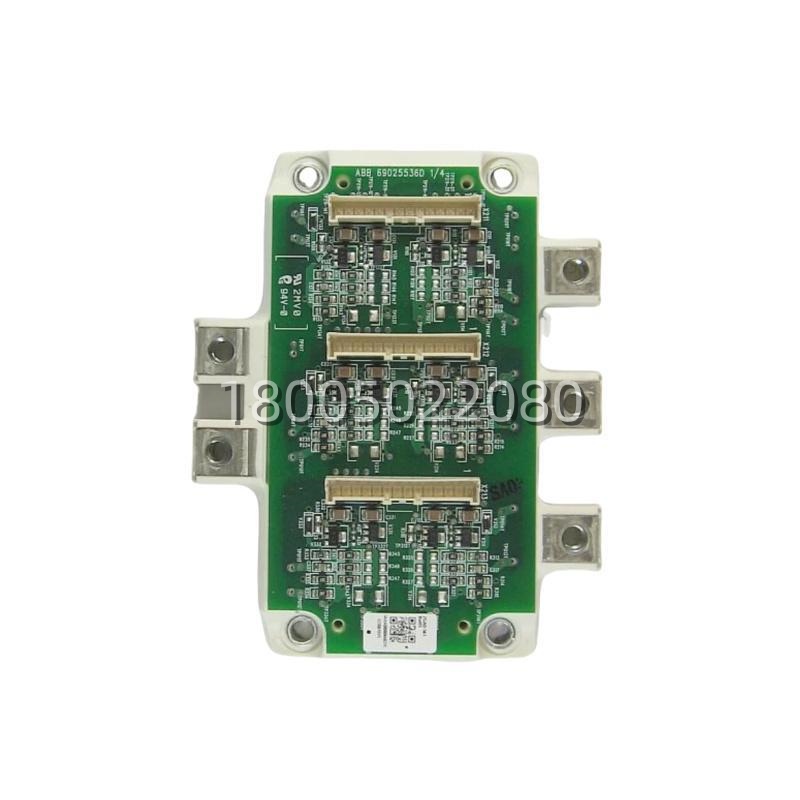

The ABB ZGAD-561​ is a specialized gate driver board manufactured by ABB, designed specifically to control and protect the FS200R12PT4​ IGBT (Insulated Gate Bipolar Transistor) power modules in high-power inverter applications. This critical component serves as the intelligent interface between the low-voltage control signals from the main processor and the high-power switching of the IGBTs, ensuring precise, efficient, and safe operation of motor drives and power conversion systems.

In a large mining excavator’s electric drive system, the main traction motors require precise torque control under rapidly changing loads as the bucket digs into dense material. The system utilizes multiple FS200R12PT4​ IGBT modules arranged in a three-phase inverter configuration, each controlled by an ABB ZGAD-561​ driver board. During an aggressive digging cycle, one phase experiences a sudden current spike that approaches the IGBT’s safe operating limit. The ABB ZGAD-561‘s advanced desaturation detection circuitry responds within microseconds, comparing the collector-emitter voltage against a dynamic threshold. It immediately initiates a soft shut-down of that specific IGBT, protecting it from thermal runaway, while simultaneously signaling the main controller to adjust the pulse pattern. This sub-microsecond protection, executed by the ABB ZGAD-561, directly prevents a catastrophic $50,000 power module failure and subsequent excavator downtime, addressing the critical pain points of equipment reliability, maintenance cost, and operational safety in heavy industry.

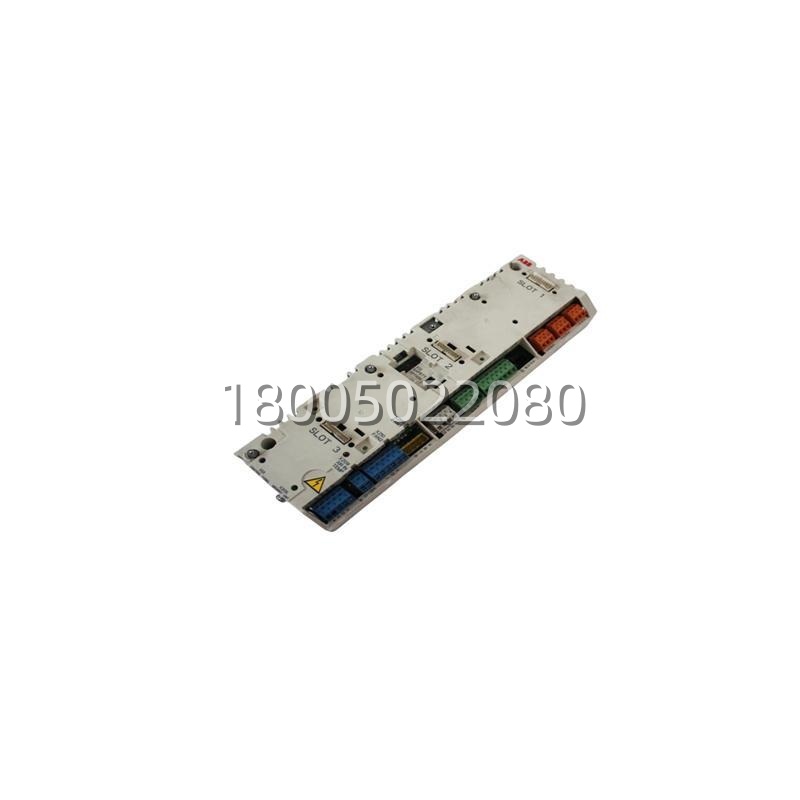

The ABB ZCU-14 3AXD50000005164​ is a sophisticated zone control and logic unit designed for medium-voltage switchgear protection systems. Operating as the central intelligence in complex protection schemes, it receives trip signals from multiple protection relays, processes them according to configurable logic, and issues coordinated commands to circuit breakers to isolate faults with maximum selectivity and minimum system disturbance. This unit is critical for implementing busbar protection, breaker failure protection, and automated switching sequences in electrical substations and industrial power networks.

In a large industrial plant’s 10kV main distribution switchboard, a cable fault on one outgoing feeder should only trip that feeder’s breaker, leaving the main bus and other feeders energized. However, if that feeder breaker fails to open (a “breaker failure” condition), the fault must be cleared by the upstream main breaker to protect the entire switchboard. Implementing this with discrete wiring and auxiliary relays is complex and inflexible. The ABB ZCU-14 Control Unit​ provides the elegant solution. It is wired to receive the trip signal from the feeder’s protection relay and a “breaker not open” status signal. Its programmable logic continuously monitors: if a trip signal is present but the breaker remains closed after a set time delay (e.g., 100ms), the ZCU-14 logically determines a breaker failure and issues a backup trip command to the mainincoming breaker. This ensures fault isolation while maintaining power to healthy sections. It directly addresses the critical need for fail-safe, selective protection coordination in meshed electrical networks.

The ABB ZCU-14 (3AXD5000005164)​ is a sophisticated drive control module manufactured by ABB, designed to serve as the intelligent control interface for its advanced drive systems. This module functions as the central processing and control unit that manages motor operation, implements control algorithms, and handles communication between the drive system and external automation networks. It represents a critical component in modern drive architectures, enabling precise control of motor speed, torque, and position in demanding industrial applications.

In a large paper mill’s high-speed coating line, a critical section requires precise synchronization between multiple driven rollers to maintain proper web tension and coating thickness. The main drive and several follower drives must maintain speed ratios with accuracy better than 0.01% to prevent web breakage or coating defects. The ABB ZCU-14 3AXD5000005164 Drive Control Module, installed in each drive cabinet, provides the necessary intelligence. The master drive’s ZCU-14​ calculates the speed reference and distributes it via high-speed fiber-optic link (DRIVEBus) to the follower drives’ ZCU-14​ modules. Each module executes local PID control loops, adjusting its motor’s torque output 16,000 times per second to maintain exact speed synchronization despite load variations from coating viscosity changes. The ZCU-14‘s advanced control algorithms directly solve the critical pain points of synchronization accuracy and dynamic response, enabling line speeds up to 2000 m/min while reducing web breaks by 40% and improving coating weight consistency by 25% compared to the previous control system.

The ABB ZCU-12, with the part number 3AXD50000183012, is a compact control unit designed by ABB for integration into single drive applications. It serves as the dedicated control and interface module for variable speed drives, likely for lower power ranges or as part of a modular drive system, providing the essential logic, I/O, and user interface for controlling a single AC motor in applications like pumps, fans, or conveyors.

An OEM building a new line of packaged pumping skids for the water industry needs a reliable, compact, and cost-effective motor control solution. They choose to integrate ABB drive technology directly into their control panel. Instead of a standalone drive with its own enclosure, they install the power components (IGBT module, DC bus capacitors) on a heatsink and use the ABB ZCU-12​ control unit as the “brain.” The ZCU-12​ is mounted on a DIN rail inside the panel. It connects to the power stage, a local potentiometer for speed setting, and digital inputs from a pressure switch and a hand/auto selector. The unit’s built-in PID controller is configured to maintain discharge pressure by adjusting the pump speed. The ZCU-12​ solves the OEM’s challenge by providing a high-performance, programmable drive core in a minimal footprint, eliminating the need for a separate drive enclosure and simplifying the bill of materials. It turns a standard AC motor into an intelligent, variable-speed pump controller within the OEM’s own branded system.
