Description

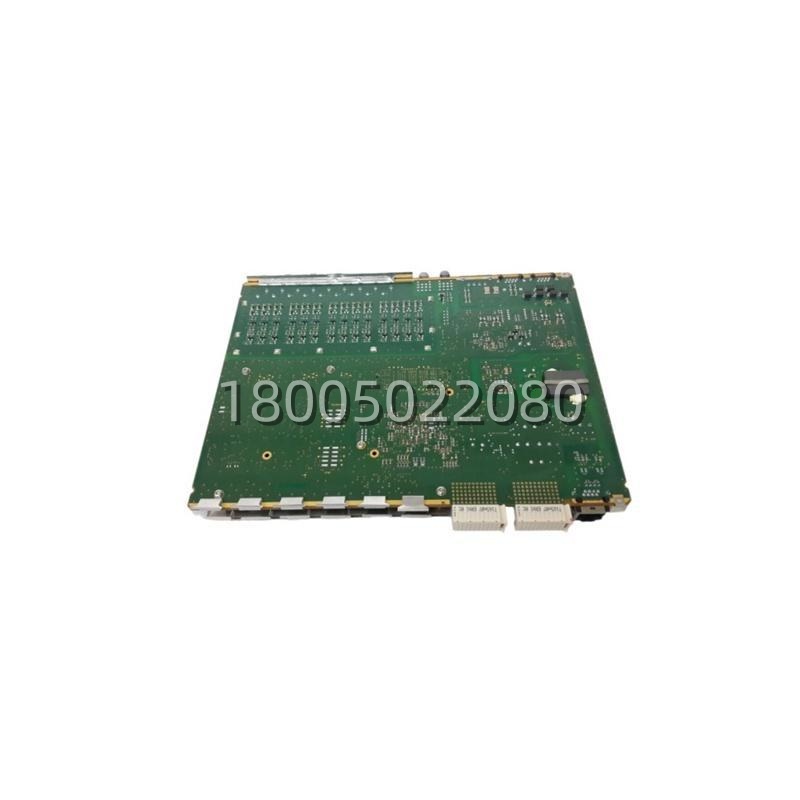

The ABB 1KHL178025R0102P (COM02)​ is a communication interface circuit board / serial port expansion module manufactured by ABB for use in ABB distributed control system (DCS) and PLC racks such as Advant OCS, AC31, and AC 800M / 800xA compatible stations. It provides one or more configurable RS-232 / RS-422 / RS-485 serial ports to enable direct data exchange between the controller and third-party intelligent field devices—such as VFDs, barcode readers, weigh scales, and legacy Modbus instruments—using Modbus RTU/ASCII, ABB CS31, or custom ASCII protocols.

Application Scenarios

A municipal wastewater treatment plant running an ABB Advant-based DCS needed to integrate eight new dissolved oxygen (DO) analyzers and four variable-frequency blower drives—all equipped only with Modbus RTU RS-485 interfaces. Adding hard-wired 4–20 mA signals would have required a new marshalling cabinet and hundreds of additional cable cores. Instead, the plant’s automation engineer installed two ABB 1KHL178025R0102P (COM02)​ boards into spare communication slots in the existing controller rack. Each COM02​ was configured via DIP switches for RS-485 half-duplex at 19.2 kbps, with Modbus master polling enabled in the control logic. Within one shift, all twelve devices were online—delivering not only process values but also device status, fault codes, and run-hours directly to the SCADA screens. Six months later, the COM02‘s built-in optical isolation protected the backplane electronics when a lightning-induced surge traveled down one of the long field cables; the module’s self-diagnostic LED flagged a port fault, and the isolated port recovered after the transient passed—no damage to the controller or other I/O modules.

Parameter

Technical Principles and Innovative Values

The ABB 1KHL178025R0102P (COM02)​ is engineered as a robust, low-overhead serial gateway embedded within the controller’s own backplane:

• Innovation Point 1 — Backplane-Bus Integrated UART Management:​ Unlike external USB-to-serial adapters, the COM02​ connects directly to the controller CPU via the internal system bus. Serial interrupt handling and buffer management are offloaded to dedicated silicon on the board, ensuring deterministic message parsing without impacting the PLC/DCS scan cycle.
• Innovation Point 2 — Multi-Standard Electrical Interface in One Port:​ A single configurable port supports RS-232 (point-to-point, up to ~15 m), RS-422 (full-duplex differential, up to ~1200 m), and RS-485 (half-duplex multi-drop, up to 32 nodes per segment). This flexibility lets the same spare module serve printer connections, HMI panels, or large field instrument networks.
• Innovation Point 3 — Optical Isolation Protects Critical Electronics:​ Each serial port is galvanically isolated from the 5 V backplane logic. The 1KHL178025R0102P​ absorbs common-mode voltage differences and transients (ESD, surge from lightning or switching) that would otherwise propagate into and damage the controller—a frequent failure mode with non-isolated PC-style COM ports.
• Innovation Point 4 — Field-Proven Legacy Protocol Support with Minimal Configuration:​ The module natively handles Modbus RTU framing, CRC generation/checking, and CS31 token passing. Simple DIP-switch settings select baud rate, parity, and echo mode; no custom driver coding is required, making retrofits fast even for technicians unfamiliar with the original system.

Description:

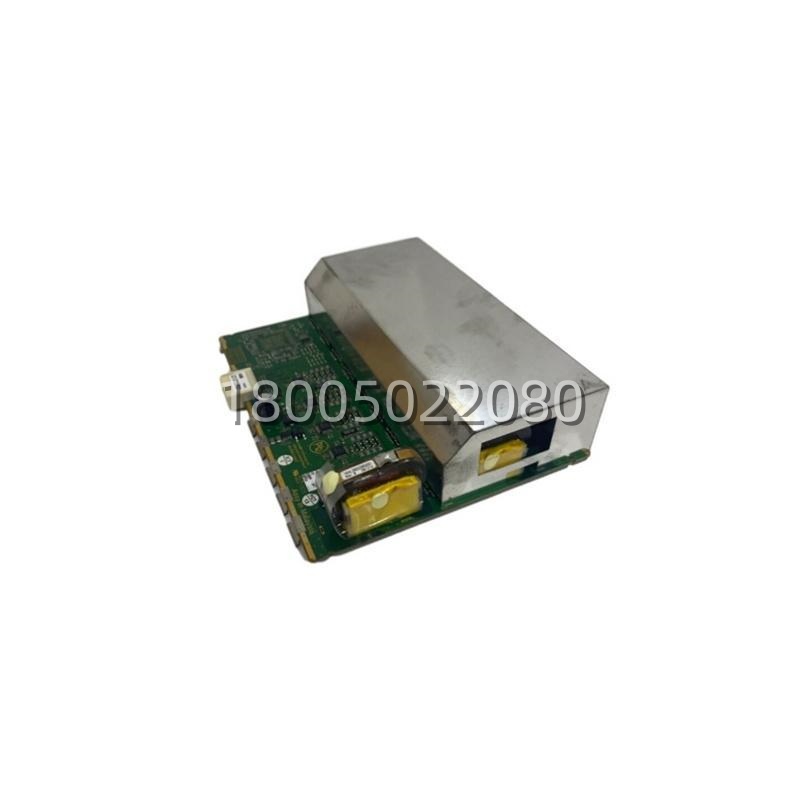

The ABB 1KHL178012R0016A, also designated as TRM01, is a high-reliability switch-mode power supply module manufactured by ABB for industrial automation control cabinets. It accepts a wide-range AC mains input (90–264 V AC) and delivers a tightly regulated 24 V DC output at up to 16 A (384 W nominal). Designed for continuous-duty operation in demanding plant environments, the 1KHL178012R0016A​ supplies stable 24 V DC control power to PLC racks, I/O modules, sensors, relays, and HMIs, and is commonly deployed as the primary or redundant system power source in ABB 800xA, Advant, and Freelance DCS/PLC installations.

Application Scenarios:

Imagine a continuous-process chemical plant where the original 20-year-old linear power supply feeding the ABB control rack begins to drift—output drops to 22.8 V DC under summer peak load, causing intermittent I/O module resets and spurious alarms on the third shift. The instrument engineer specifies the ABB 1KHL178012R0016A​ TRM01 as a direct-form-fit replacement. After a scheduled 15-minute power-down, the old unit is unclipped from the 35 mm DIN rail, input/output terminals are transferred to the new module, and power is restored. The 1KHL178012R0016A​ immediately delivers a rock-steady 24.0 V DC across the full load range, with its green “DC OK” LED confirming healthy operation at a glance through the cabinet window. The plant eliminates nuisance resets, gains >94 % conversion efficiency (reducing cabinet heat load), and benefits from built-in short-circuit and overload protection that auto-recovers once the fault is cleared—no fuse replacement required. The key pain point solved: a drop-in, high-efficiency 24 V DC source that restores system voltage margin and protects downstream electronics in a single, cost-effective upgrade.

Parameter:

Technical Principles and Innovative Values:

The 1KHL178012R0016A​ employs active PFC (Power Factor Correction) and secondary-side synchronous rectification to achieve high efficiency with minimal heat dissipation—a critical advantage in densely populated control cabinets.

• Innovation Point 1: Wide-Range Universal Input with Active PFC.​ The 1KHL178012R0016A​ accepts any single-phase mains from 90 V to 264 V AC without manual voltage selection, making it globally deployable. Active PFC (>0.90 typical) reduces input current harmonics and improves power quality on the plant’s AC distribution—important for sites with sensitive measurement equipment sharing the same mains feeders.
• Innovation Point 2: Power-Fail Signaling & Remote Monitoring Readiness.​ The module’s DC-OK relay contact or open-collector output (model-dependent) can be wired to a PLC digital input or annunciator to alert maintenance before a complete supply collapse. This gives early warning of pre-failure conditions such as overtemperature or input-sag-induced output droop—enabling proactive intervention rather than a surprise cabinet blackout.
• Innovation Point 3: Parallel-Operation Capability for N+1 Redundancy.​ When specified in redundant configurations, multiple 1KHL178012R0016A​ units can be diode-OR’d (using external decoupling diodes or an ABB redundancy module) to provide N+1 fault-tolerant 24 V DC power. This is essential for safety-related or continuously-operating systems where even a brief power interruption is unacceptable.

Description:

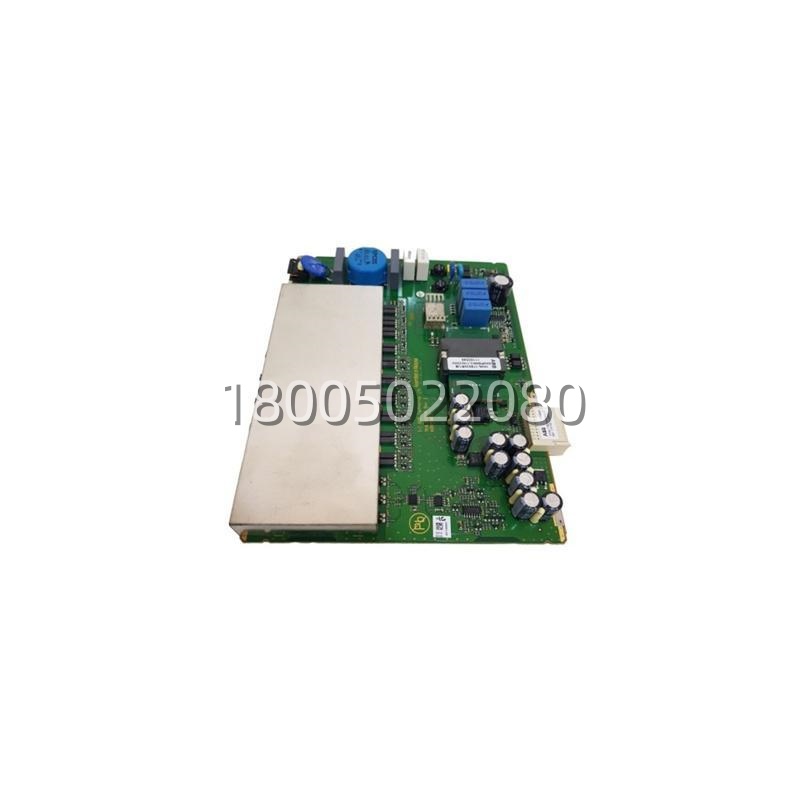

The ABB 1KHL178016R0001F, also designated as PSM03, is a high-efficiency 24 V DC switch-mode power supply module manufactured by ABB for industrial automation systems. Designed for use with ABB AC 800M controllers, S800 I/O stations, and general control cabinet DC distribution, it converts a wide-range AC input (100–240 V AC) into a tightly regulated 24 V DC output at up to 10 A (240 W), with support for N+1 parallel redundant operation to eliminate single points of failure in critical process applications.

Application Scenarios:

In a continuous pharmaceutical water-treatment skid integrated into a plant-wide System 800xA DCS, the local S800 I/O rack and Profibus DP coupler must remain powered even during brief mains sags or a single power-supply failure. Originally equipped with a standalone non-redundant PSU, the panel suffered an unplanned shutdown when the sole supply failed during a weekend. The maintenance team upgraded to a dual ABB 1KHL178016R0001F PSM03​ configuration in N+1 redundant parallel mode. Now, if one unit is taken offline for service or fails, the second seamlessly carries the full 24 V DC load with no interruption to the I/O rack or communication modules. The front-panel DC OK / Fault LEDs give technicians instant visual confirmation of supply health during daily walkthroughs, and the wide-input design accommodates the site’s occasional 208 V AC / 230 V AC swing without adjustment—directly solving the pain point of fragile single-source DC power in validated GMP environments.

Parameter:

Technical Principles and Innovative Values:

• Innovation Point 1: Universal Auto-Ranging AC Input with Active PFC.​ The ABB 1KHL178016R0001F​ accepts 100–240 V AC globally without manual voltage selector—ideal for multinational projects and sites with unstable grid conditions. Active Power Factor Correction (PFC) reduces harmonic distortion and improves energy efficiency versus linear supplies.
• Innovation Point 2: N+1 Parallel Redundancy with Dynamic Current Sharing.​ Unlike basic PSUs that cannot be paralleled safely, the PSM03​ is engineered for parallel operation. Two or more units distribute load proportionally, and the system tolerates the removal or failure of one module without dropping the 24 V DC bus—a cornerstone feature for SIL-rated or continuous-process DCS architectures.
• Innovation Point 3: Low-Ripple Regulated Output & Built-In Diagnostics.​ Output ripple is typically < 50 mV p-p, ensuring clean power for sensitive analog measurement circuits. Integrated LEDs and a dry-contact / logic-ready status output (on some PSM variants) allow the DCS to monitor PSU health remotely, turning a silent failure into an actionable alarm before a process trip occurs.

Application Cases and Industry Value:

Case 1: Oil & Gas Offshore Platform DCS Panel – Middle EastA produced-water injection skid’s local S800 I/O and AC 800M Compact controller were previously fed by a single 24 V DC PSU. After a PSU failure caused a 4-hour shutdown during well-testing, the panel was retrofitted with two ABB 1KHL178016R0001F PSM03​ modules in redundant parallel. Over 24 months post-retrofit, one unit was proactively replaced during a shutdown with zero process interruption. The platform reported zero PSU-related trips since the upgrade and appreciated the simplified DIN-rail mounting versus the previous panel-mount unit.Case 2: Food & Beverage Batch Mixer – EuropeA mixer control cabinet required stable 24 V DC for 6 S800 analog input modules, an HMI, and 12 digital outputs driving solenoid banks. The ABB PSM03​ was selected for its 10 A capacity and >93% efficiency in a warm (45 °C ambient) wash-down-area cabinet with limited ventilation. The supply ran cool and maintained voltage within ±0.3 V under full load. The plant’s maintenance log showed no PSU-related faults in the first 18 months, and the unit’s compact footprint freed space for a future Ethernet switch.

Description:

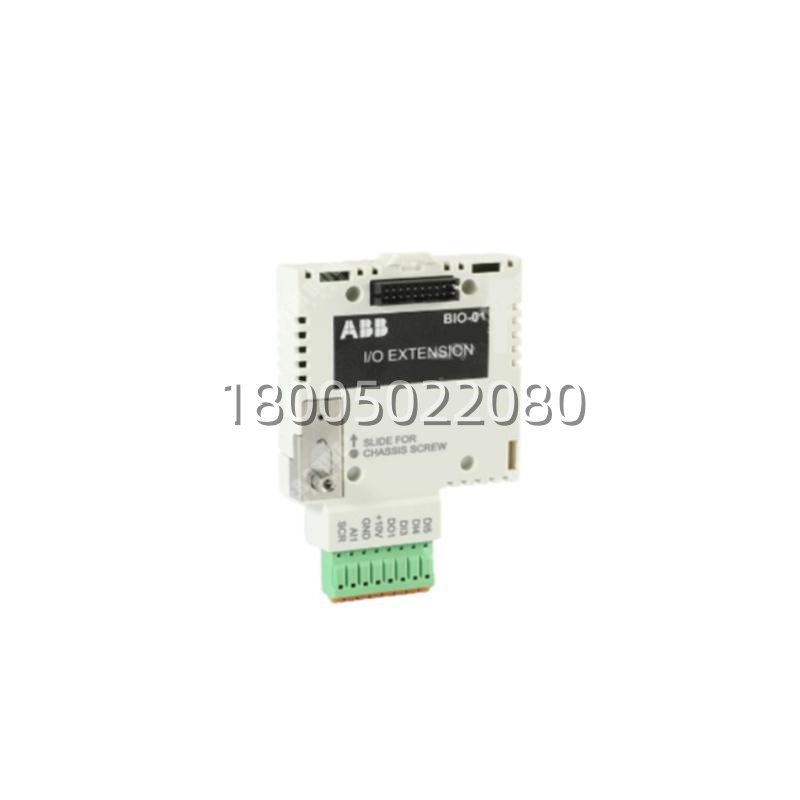

The 1KHL178013R0001M, designated as BIO01, is an ABB Binary I/O Module designed for distributed digital signal acquisition and control in industrial automation systems. It provides 16 binary (digital) inputs and 16 binary outputs operating at 24 V DC, serving as a compact, standalone I/O node that communicates with ABB drives, PLCs, or DCS platforms via industrial Ethernet or fieldbus protocols (Modbus TCP/IP, Profinet, or Profibus DP depending on firmware variant). The module bridges the gap between low-level field devices—such as limit switches, pushbuttons, pilot lights, and solenoid valves—and higher-level control architectures without requiring a full rack-based I/O system.h2 Application Scenarios:Consider a bulk-material handling conveyor network controlled by an ABB AC 800M DCS. The remote transfer tower is 150 meters from the main MCC and only needs to read four belt-sway switches, two zero-speed detectors, and command a stacker-reclaimer hydraulic solenoid and local audible alarm. Running a full multi-pair cable homerun for just six points is cost-prohibitive. Instead, the E&I team installs a 1KHL178013R0001M BIO01​ module in a small local junction box at the tower, powered by a 24 V DC supply fed from the MCC. The module connects to the plant network via a single Ethernet cable and appears as a slave device on Modbus TCP. Limit switch closures are read directly into the DCS as binary inputs; solenoid and alarm commands are written to the module’s binary outputs. When a belt-sway trips, the BIO01​ reports the event with < 2 ms latency, and the DCS initiates an emergency stop. The project saved significant copper cost, reduced cabinet space in the central room, and gave technicians local LED diagnostics at the tower—”one glance tells us if the sensor is live,” noted the site electrician. This decentralized approach exemplifies how the 1KHL178013R0001M​ solves the classic remote-I/O vs. cost dilemma.h2

Parameter:

h2 Technical Principles and Innovative Values:

• Innovation Point 1 — True Distributed Architecture with Bus-Powered Flexibility.​ The 1KHL178013R0001M​ is not bound to a proprietary rack backplane. It operates as an autonomous I/O node on standard industrial networks (Ethernet-based Modbus TCP or Profinet), allowing engineers to place discrete I/O exactly where the signals originate. This reduces wiring runs, minimizes voltage drop concerns on long sensor cables, and enables incremental system expansion—add another BIO01 anywhere on the network without reconfiguring the main I/O rack.
• Innovation Point 2 — Group-Configurable Sink/Source Inputs with Hardware Filtering.​ Each 8-input group on the BIO01​ can be independently jumper-configured for sinking (NPN) or sourcing (PNP) field devices. Combined with software-selectable debounce filtering (1 / 3 / 10 ms), this accommodates both clean dry-contact signals (e.g., mechanical limit switches) and noisy semiconductor sensor outputs, rejecting contact bounce and electrical noise typical near VFDs or contactors.
• Innovation Point 3 — Per-Point LED Diagnostics & Watchdog Supervision.​ Unlike basic remote I/O blocks that only show a “link” light, the 1KHL178013R0001M​ has individual green LEDs per DI and DO channel plus a red ERR LED and yellow COM activity indicator. During commissioning, technicians can verify sensor activation and output command state locally without a laptop. An internal watchdog monitors communication health and can force outputs to a safe (off or last-state) condition on loss of telegram, supporting fail-safe design principles.

h2 Application Cases and Industry Value:Case — Cement Plant Tertiary Crusher Local I/O Decentralization:​ A brownfield cement plant was upgrading its tertiary crusher lube-skid monitoring. Original design required running 28 individual pairs from proximity switches, oil-level floats, high-temp contacts, and local alarm horns back to the main control room—a 200 m cable run through a congested cable tray. The retrofit installed a ABB 1KHL178013R0001M BIO01​ inside the lube-skid local panel, connected via a pre-existing fiber-media-converted Ethernet link to the plant’s System 800xA. All 12 DI points (vibration, temperature, flow, level switches) and 4 DO points (lube pump start permit, alarm horn, beacon) were wired within 3 meters of the skid. Post-commissioning, the plant reported zero signal integrity issues, a 60 % reduction in installed cable cost for the skid, and faster troubleshooting—maintenance could now confirm a failed float switch by simply opening the local panel and checking the BIO01’s input LEDs. The project paid for itself in material savings alone.

DescriptionThe ABB A0810V2​ (commonly referenced as the AO810V2, order code 3BSE038415R1) is an 8-channel analog current output module belonging to ABB’s S800 I/O series, designed for use with AC 800M controllers and ABB Freelance systems. It converts digital control values from the controller into precise 0–20 mA or 4–20 mA analog current signals to drive field devices such as control valves, variable frequency drives, and indicating meters, with group-wise galvanic isolation and comprehensive onboard diagnostics.h2 Application ScenariosPicture a continuous pharmaceutical blending process where three jacketed reactors require tight modulation of steam-control valves and cooling-water throttling valves via 4–20 mA signals. The plant’s AC 800M DCS originally used an S800 I/O rack with an ABB A0810V2 (AO810V2)​ driving all eight analog loops. After 12 years, one channel begins to drift and fails the open-circuit self-test, flagging a channel error on the control room HMI. Rather than re-engineering the I/O layout, the maintenance team sources a functionally tested A0810V2, powers down the MTU, extracts the old module, and inserts the replacement. The DCS automatically recognizes the module via the ModuleBus; no download or re-addressing is required. Within minutes, all eight valve loops resume accurate positioning with the module’s Override Set Point (OSP) and open-circuit detection actively monitoring loop integrity—eliminating spurious valve drops during brief communications interruptions. This scenario highlights the A0810V2‘s practical value: it keeps mature S800 I/O architectures running with minimal MTTR and zero disruption to the control strategy.h2

Parameter

h2 Technical Principles and Innovative ValuesThe A0810V2​ is engineered for high-integrity analog signal generation in distributed control environments.

• Innovation Point 1 – 14-Bit High-Resolution D/A with Read-Back Verification: The A0810V2​ uses a precision 14-bit digital-to-analog converter per channel group and performs serial read-back of D/A register data every cycle. This verifies that the commanded value was correctly latched into the converter, catching communication errors before they can affect field devices.
• Innovation Point 2 – Active Open-Circuit & Process Power Supervision: Each channel continuously monitors the loop current. If the output is commanded above 1 mA but the measured current falls below a threshold (indicating a broken wire or disconnected transmitter/actuator), the module reports a channel error. Process power supply to the output stage is also supervised—any under-voltage is flagged as a module fault, enabling proactive maintenance.
• Innovation Point 3 – Override Set Point (OSP) on Communication Loss: The A0810V2​ supports configurable OSP—upon detection of ModuleBus communication failure, outputs can freeze, go to a predefined safe value, or follow a last-good-value hold. This prevents uncontrolled valve movement during controller or network faults, a critical safety and continuity feature in continuous-process applications.

Description:

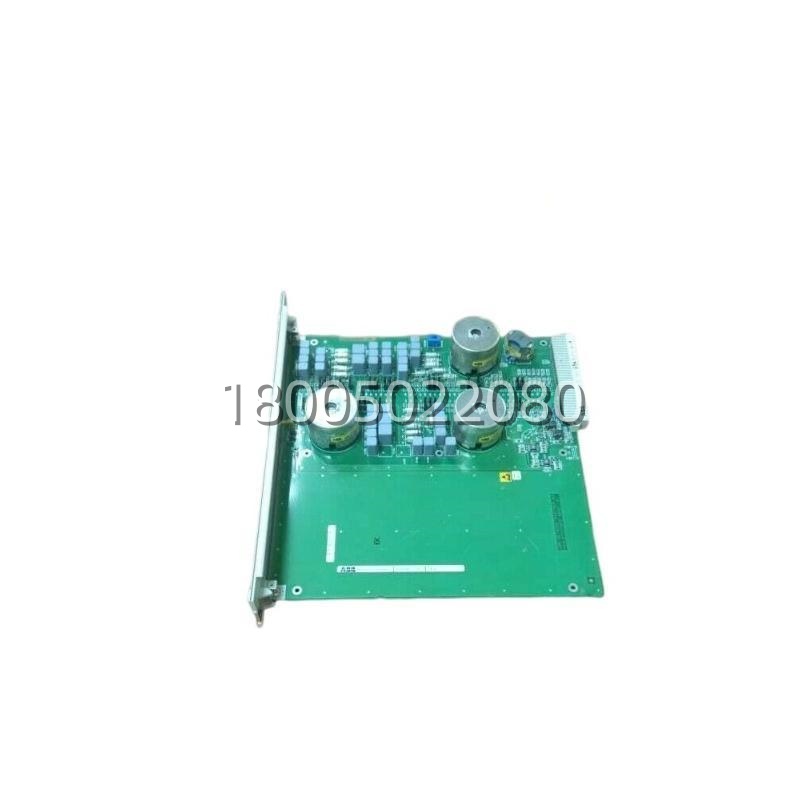

The ABB 1KHL045107R1, also identified as the P4LR Board, is an industrial control and communication interface module / control board manufactured by ABB for use in distributed control system (DCS) I/O stations, process automation racks, and compatible ABB drive cabinets. It processes control signals, handles local relay or logic-level outputs, and communicates with the host controller via serial bus (typically RS-485 / Modbus RTU), acting as the vital link between the DCS application logic and field-mounted actuators or annunciators.

Application Scenarios:

A petrochemical plant running an ABB Symphony Plus–based DCS noticed that one remote I/O station’s local alarm horn and trip-contactor commands had stopped responding, although the analog measurements from the same station were still updating normally. Diagnostics showed the communication link was healthy but the local output board had failed — the ABB 1KHL045107R1 (P4LR Board). The maintenance electrician powered down the rack, extracted the faulty PWA, inserted a verified replacement 1KHL045107R1, reseated the backplane connector, and restored power. Within minutes the alarm and trip outputs were functioning again — no point-table changes, no controller download required. This case illustrates the core value of the ABB 1KHL045107R1: it is a system-addressed, plug-and-play interface board whose correct operation is essential for translating DCS logic into real-world action, and whose straightforward replacement minimizes costly unplanned downtime.

Parameter:

Technical Principles and Innovative Values:

• Innovation Point 1 — System-Native Addressing & Hot-Swap Awareness.​ The ABB 1KHL045107R1​ is recognized automatically by the host DCS rack firmware upon insertion. Its I/O points map to predefined addresses in the control application database, so replacement requires no reprogramming — the new board inherits the configuration from the controller or backplane EEPROM, enabling true “swap-and-go” maintenance.
• Innovation Point 2 — Optically Isolated Local Output Driving.​ The P4LR board incorporates opto-isolated driver stages for its relay or solid-state output channels, protecting the sensitive backplane bus from inductive load transients when switching contactors, solenoids, or panel alarms — a frequent failure mode in unprotected designs.
• Innovation Point 3 — Dual-Role Signal Processing & Diagnostics.​ Beyond simple output latching, the 1KHL045107R1​ continuously monitors its own supply rail, communication integrity, and output channel health (open-load / short-circuit detection on supported versions). Front-panel LEDs give instant go/no-go indication, drastically reducing mean time to diagnose (MTTD) during troubleshooting.

Application Cases and Industry Value:

Case – Combined-Cycle Power Plant Auxiliary System Upgrade:​ A 400 MW combined-cycle plant was performing a phased reliability upgrade on its Balance-of-Plant (BOP) auxiliary control panels, which used ABB Advant / Symphony Plus remote I/O racks. Several original P4LR boards showed signs of aged electrolytic capacitors and intermittent output drop-out under summer ambient heat. The plant proactively replaced all six ABB 1KHL045107R1​ boards during a weekend outage. Post-replacement verification confirmed correct operation of all cooling-tower fan start/stop commands, lube-oil pump interlocks, and local alarm annunciation. Plant engineers reported that using the exact-match 1KHL045107R1 (P4LR)​ preserved the original I/O addressing and cabinet wiring, avoided any control logic changes, and extended the usable life of the BOP control system by an estimated 8–10 years at a fraction of a full-retrofit cost.

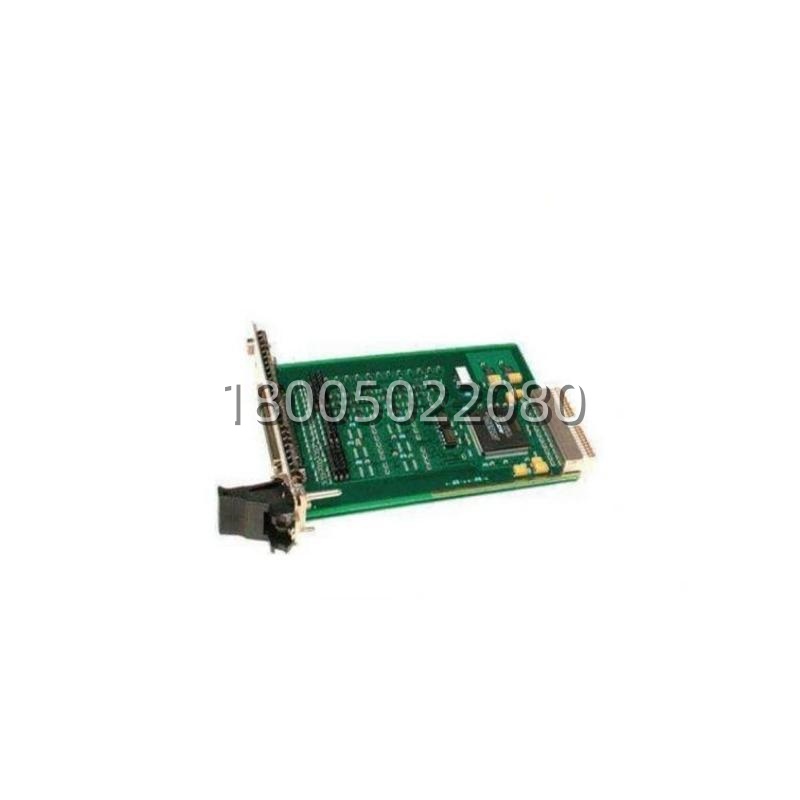

Description:The ABB 1KHL015545R0001​ (O4LE Series) is a digital I/O Cradle / Base Module manufactured by ABB for use in ABB Industrial IT, Advant OCS, and compatible distributed control or PLC systems. It provides the physical interface between the system backplane and field wiring, offering 8 digital inputs and 8 digital outputs at 24 V DC, with spring-cage terminal blocks for secure, vibration-resistant field connections. The 1KHL015545R0001​ is the foundation onto which the electronic I/O plug-in module seats, distributing both signal paths and system power to the active electronics.h2 Application Scenarios:In a combined-cycle power plant’s balance-of-plant (BOP) auxiliary control system built on ABB hardware, the condensate pump local start/stop pushbuttons and limit-switch feedbacks are wired into an O4LE I/O cradle in the marshalling cabinet. During a routine cabinet cleaning, a technician noticed one cradle’s spring terminals had fatigued, causing intermittent DI signal dropouts that occasionally triggered spurious pump alarms. The maintenance team replaced the faulty unit with the ABB 1KHL015545R0001. Because the 1KHL015545R0001​ is a direct plug-in cradle—the electronic I/O module simply transfers to the new base—the swap took less than five minutes with no re-wiring of the 16 field conductors. Signal stability was immediately restored, and the plant avoided a forced re-termination of dozens of wires that would have required a controlled shutdown. This illustrates the 1KHL015545R0001‘s practical value: it is the first point of failure in field-wiring stress and the fastest, lowest-risk component to replace in keeping legacy I/O systems online.h2

Parameter:

h2 Technical Principles and Innovative Values:

• Field-Wiring Preservation via Separate Cradle & Electronics:​ The 1KHL015545R0001​ decouples the field-termination base (cradle) from the intelligent I/O electronics module. This means the cradle can be replaced for mechanical wear or terminal fatigue without disturbing any field wires—only the plug-in electronics are transferred—dramatically reducing MTTR compared to integrated I/O blocks.
• Vibration-Resistant Spring-Clamp Terminals:​ Unlike screw terminals that loosen under sustained cabinet vibration (common near large rotating equipment), the ABB 1KHL015545R0001​ uses spring-pressure clamp technology that maintains constant contact force on stripped wire ends, minimizing connection-related DI/DO faults in heavy-industry environments.
• Backplane Bus Compatibility with ABB Ecosystem:​ The cradle’s gold-finger backplane connector is mechanically keyed and electrically matched to ABB O4L-series I/O plug-ins and Advant / AC 800M-family racks, ensuring signal integrity and hot-swap compatibility (where system permits) without jumpers or DIP-switch addressing—plug, seat, and the system auto-enumerates.

Description

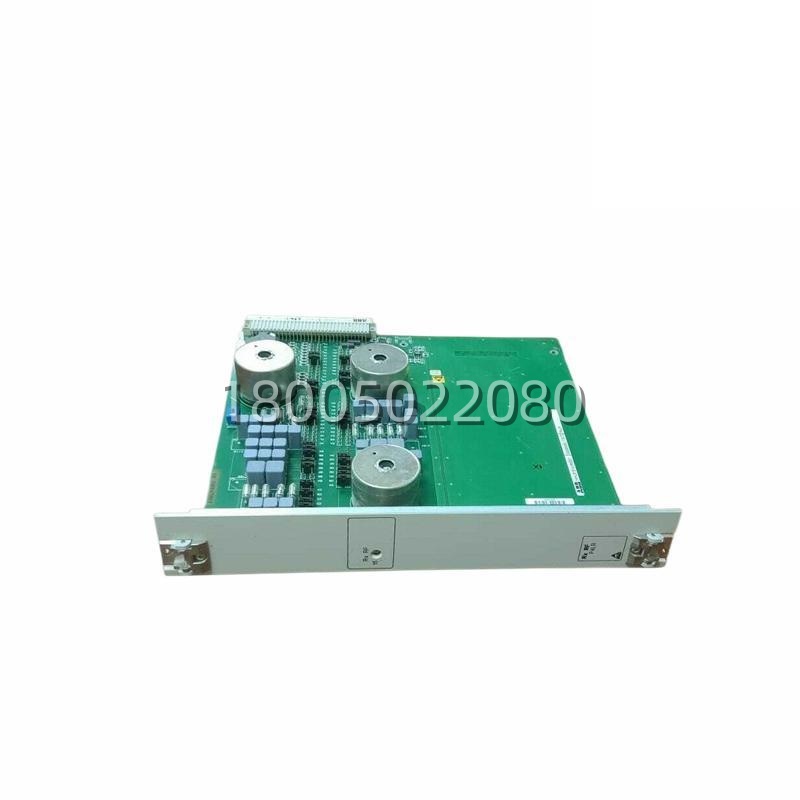

The 1KHL015107R0001​ (commonly referenced as P4LR) is an ABB Symphony Plus DCS Main Controller Board — a high-reliability redundant processor module that serves as the “brain” of ABB’s P4-series distributed control system. Manufactured by ABB Process Automation, this control board is built on a PowerPC architecture and supports true 1:1 hot-standby redundancy with bumpless switchover in under 200 ms. It executes continuous and discrete control strategies, communicates with I/O subsystems via the high-speed backplane bus and redundant Ethernet, and is configured/programmed through ABB Control Builder M engineering software. The 1KHL015107R0001​ is the definitive mission-critical spare for power generation, oil & gas, and large-scale process plants running Symphony Plus DCS.

h2 Application Scenarios

Consider a 600 MW coal-fired power plant where the boiler-turbine coordinator control system (CCS) and furnace safeguard supervisory system (FSSS) are executed by a pair of redundant P4LR controllers in the unit’s DCS cabinet. During a routine annual maintenance test, the active 1KHL015107R0001​ is deliberately powered down to verify redundancy — the standby card assumes control in 150 ms with zero disturbance to valve positions, burner management logic, or operator displays. Months later, a surprise capacitor aging failure causes the active controller to fault; again the standby 1KHL015107R0001​ transparently takes over, preventing a unit trip and keeping steam pressure regulated within setpoints. This scenario demonstrates how the module resolves the core pain point of process continuity — no single-point controller failure can interrupt critical plant operations when properly deployed in a redundant pair.

h2 Parameter

h2 Technical Principles and Innovative Values

• Innovation Point 1 — True 1:1 Hot-Standby with Microsecond-Level State Synchronization:​ The 1KHL015107R0001​ maintains a continuous mirror of process image, I/O scan buffers, timer accumulators, and user-defined variables with its paired standby controller via a dedicated high-speed synchronization link. On primary failure the standby assumes control in < 200 ms — faster than any field device can react — achieving genuinely bumpless transfer that prevents valve hunting or process upset.
• Innovation Point 2 — PowerPC Architecture Optimized for Large-Scale Loop & Batch Control:​ Unlike generic PLC CPUs, the P4LR processor in the 1KHL015107R0001​ is tuned for the scan-heavy, multi-loop regulatory control typical of power and process plants. It handles PID cascade loops, sequence/state logic, and batch recipes in a single deterministic scan cycle, scaling comfortably to thousands of I/O tags per controller pair.
• Innovation Point 3 — Integrated Diagnostics & SOE with Engineering Software Alignment:​ Front-panel LEDs map directly to internal health bits readable from Control Builder M and the plant HMI. The module participates in the system’s Sequence of Events (SOE) recording with 1 ms timestamp resolution, allowing engineers to correlate a controller state change with field I/O transitions during post-incident analysis — a capability rarely found in entry-level controllers.

Description:

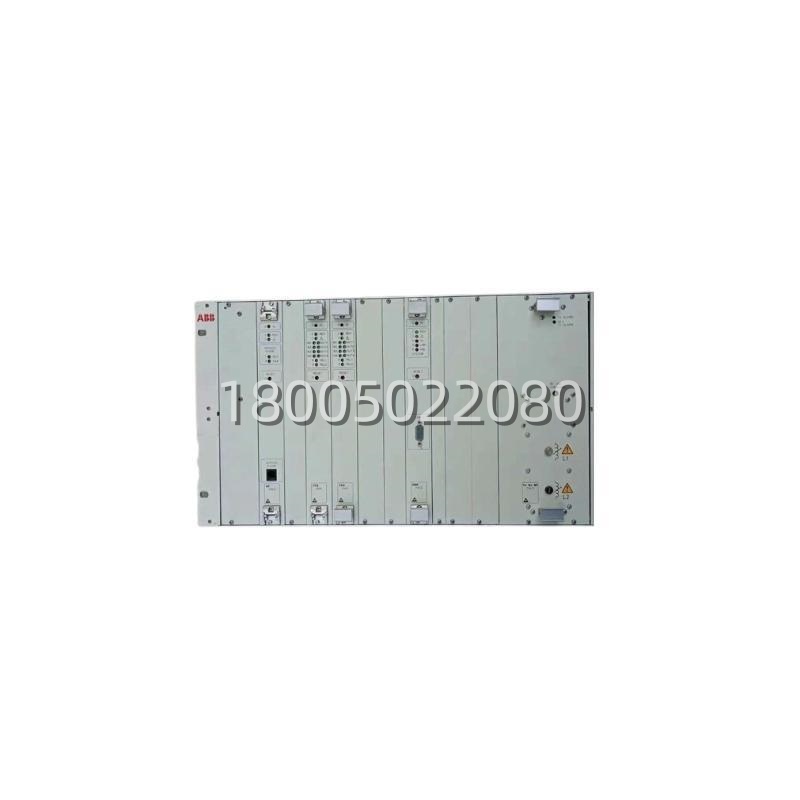

The ABB 1KHL015000R0001​ is a dedicated control system chassis (rack/base unit) designed for ABB’s P7LC (Procontrol 7 / P7 series) distributed control and automation systems. It serves as the physical and electrical backbone of a P7LC node—providing precision-aligned module guide rails, a multi-slot printed backplane (backplane bus) for inter-module communication and power distribution, and integral cable-management features. The chassis itself contains no control logic; it houses the processor module, I/O modules (analog, digital, pulse, temperature), communication interface cards, and power supply units, binding them into a functional control station for power-generation, oil & gas, and continuous-process applications.

Application Scenarios:

A 300 MW coal-fired power plant undergoing a partial retrofit of its Balance-of-Plant (BOP) controls still relies on ABB P7LC stations for coal-feeder sequencing and auxiliary pump interlocking. During a scheduled cabinet refurbishment, technicians discovered that the original 1990s-era chassis backplane had oxidized slot fingers—causing intermittent communication drops between the P7 processor and remote DI/DO modules. Rather than rewire an entire new DCS segment, the maintenance team performed a like-for-like swap of the ABB 1KHL015000R0001​ chassis. The new rack accepted all existing P7 modules without modification; the backplane re-established clean bus contact, and the intermittent fault vanished immediately. The 1KHL015000R0001​ solved the critical pain point of unreliable legacy rack hardware—restoring system stability at a fraction of the cost and downtime of a full DCS migration. In plants where P7LC systems remain in daily operation, this chassis is a strategically important life-extension spare.

Parameter:

Technical Principles and Innovative Values:

The ABB 1KHL015000R0001​ is engineered as the mechanical and electrical foundation of a P7LC node, not a generic card cage.

• Innovation Point 1 — Precision-Engineered Backplane with Controlled Impedance Traces:​ The soldered backplane PCB distributes logic supply rails (+5 V, ±12 V/±15 V) and the P7 parallel bus with carefully controlled trace impedance and decoupling capacitors at each slot. This ensures reliable high-speed data exchange between the CPU and peripheral I/O cards even after decades in service—unlike generic Eurocard cages that lack bus-termination design.
• Innovation Point 2 — Rigid Module Alignment & Positive-Lock Insertion:​ Hardened guide rails and indexed slot stops guarantee that each P7 module’s edge-connector mates squarely with the backplane fingers, preventing partial insertion (a common cause of “module not recognized” faults). The chassis mechanical stiffness resists deformation from repeated card swaps or transport vibration—critical in seismic-zone plants.
• Innovation Point 3 — EMI Shielding & Cable Separation by Design:​ The metal enclosure and optional partitioned wiring channels segregate low-level analog-signal wires from high-current power or digital-comms cabling, reducing cross-talk and improving measurement stability in noisy switchgear rooms—a key advantage over open-frame racks.

Description

The 1KHJ044010R0001, commonly referenced as the P4LG Carrier Board, is an industrial-grade submodule carrier / motherboard manufactured by ABB for use in ABB distributed control system (DCS) cabinets such as Advant OCS and Procontrol P-series stations. It provides the mechanical mounting platform and electrical backplane bus connection for plug-in I/O, communication, or processing submodules, forming the foundation of a modular DCS rack architecture.

Application Scenarios

Imagine a petrochemical plant running an ABB Advant OCS with a 20-year-old control cabinet. Over decades of thermal cycling and minor vibration, the original carrier board in one rack develops oxidized backplane pins—causing intermittent contact faults on a critical analog input submodule and triggering nuisance alarms that are difficult to trace. Rather than rewiring the entire panel or replacing the full rack assembly, the maintenance team simply swaps the degraded board for a new 1KHJ044010R0001 (P4LG). The new carrier’s gold-plated edge contacts and rigid FR-4 substrate restore solid bus continuity, the submodule clicks in securely, and the intermittent fault vanishes—all in under 15 minutes with zero field-wire disturbance. The 1KHJ044010R0001​ solves the hidden pain point of worn DCS backplane contacts in legacy installations, keeping proven control systems online without capital-intensive upgrades.

Parameter

Technical Principles and Innovative Values

• Innovation Point 1 — Passive High-Integrity Bus Distribution:​ The 1KHJ044010R0001​ is a passive, multilayer carrier that routes address, data, power, and timing lines from the DCS rack backplane to each submodule slot with controlled impedance and minimal crosstalk. This preserves signal integrity across all plugged-in submodules without adding active logic that could introduce failure modes.
• Innovation Point 2 — Gold-Plated Contact Longevity:​ Unlike economy-grade backplanes, the P4LG carrier uses gold-flashed pins on both the rack interface and submodule sockets. This resists oxidation in humid coastal or corrosive process environments, extending the service interval for contact-related faults by years compared to bare tin/lead finishes.
• Innovation Point 3 — Form-Factor & Keying Compatibility:​ The 1KHJ044010R0001​ is mechanically keyed and dimensioned to drop precisely into the original ABB rack cutouts. No drilling, filing, or adapter plates are needed—making it a true “remove-and-replace” spare that any competent technician can install during a brief maintenance window.

Application Cases and Industry Value

A European waste-to-energy plant operating ABB Advant OCS controllers noticed recurring communication dropouts on one process station. Loop checks confirmed field wiring and submodule health were good; the root cause was traced to carbon-tracked and pitted contacts on the original 1990s-vintage carrier board. The plant procured and installed the ABB 1KHJ044010R0001 (P4LG)​ as a direct replacement during a scheduled boiler purge.After installation, all submodules seated firmly, backplane resistance readings normalized, and the station’s communication error count dropped to zero. The plant’s automation engineer commented: “Replacing the whole rack would have meant re-terminating 120+ wires and a 12-hour shutdown. Swapping in the 1KHJ044010R0001​ P4LG carrier took one man 20 minutes and solved the problem completely.”The intervention preserved the existing DCS investment, eliminated a chronic fault, and deferred a rack-modernization project by an estimated 5–8 years.
