Description

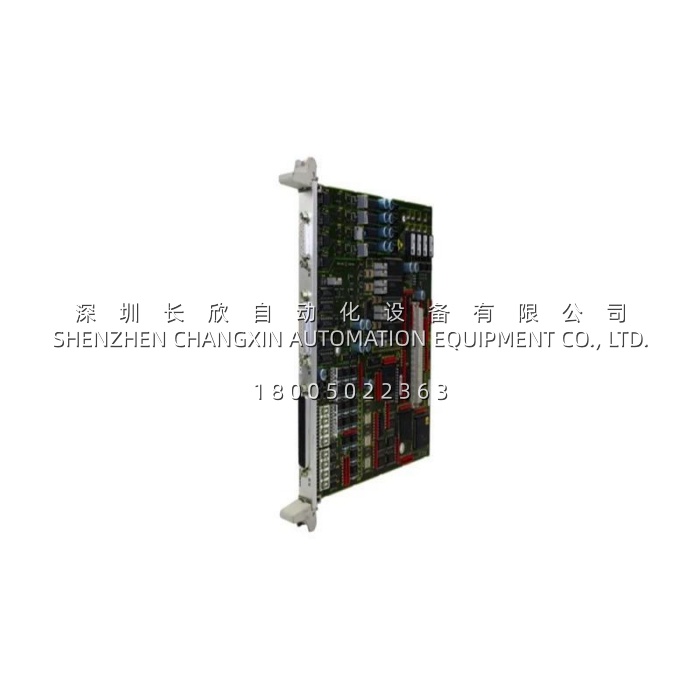

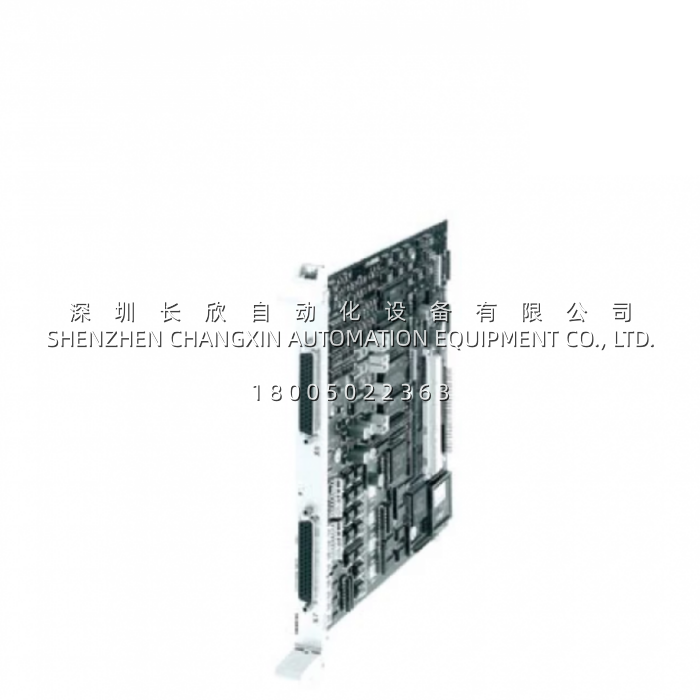

The 6DD1606-4AB0​ is Siemens’ SIMADYN D IT42 I/O submodule​ — not a standalone PLC, but a plug-on expansion card seating on the CPU baseboards PM4, PM5, or PM6​ of the SIMADYN D drive-control family. Each 6DD1606-4AB0​ delivers 16 binary inputs, 16 binary outputs, 4 analog inputs (A/D, 12-bit), 4 integrating analog inputs (V/F — voltage-to-frequency for tacho/encoder), and 4 analog outputs, all funneled to the PM CPU through the local expansion bus and dual-port RAM at sub-µs latency — far tighter than any ET 200 remote-I/O rack over PROFIBUS could manage.What the datasheet doesn’t spell out — and what gets BOMs into trouble — is that the 6DD1606-4AB0​ itself carries zero field terminals. All 96 signals split across three 96-pin DIN headers (X6 = V/F AIN, X7 = A/D + AOUT, X8 = BI/BO) and land on SB/SU/SC interface modules​ mounted on the SIMADYN D rack’s wiring channel. Cloning a 6DD1606-4AB0​ into an old cabinet means matching the SB/SU/SC fit-out, not just the IT42. Siemens marked the 6DD1606-4AB0​ PM500 “deleted without replacement” from Oct 1, 2017 — today it lives purely as a brownfield spare SKU.

Application Scenarios

A cement-mill retrofit team in Southern Europe learned the SB/SU lesson the hard way. They’d sourced a 6DD1606-4AB0​ to replace a flaky IT42 on a PM5 rack driving a 4.8 MW cycloconverter-fed sync motor. The IT42 swapped in fine — 5 mins, PM5 recognized it, local-bus came up. But when they reconnected the three 96-pin DIN headers to the existing interface modules, the #3 A/D channel (one of the 4 × A/D, wired to a stator-current CT isolator on SC51) read -32767 full-scale. Turned out the original cabinet had used SC51-A​ (pin 27 = A/D ch3+, pin 28 = A/D ch3-) and the replacement 6DD1606-4AB0​ batch they’d received had left the factory tested against SC51-B​ — same 96-pin footprint, different pin-roll on the A/D bank. The fix was a 15-minute SC51 re-termination, but the “IT42 is just a spare” assumption cost them a 4-hour unplanned stop on the mill. The takeaway: the 6DD1606-4AB0​ is half the story; the SB/SU/SC interface modules are the other half, and a spare strategy that doesn’t cross-check both is incomplete.

Parameters

Description

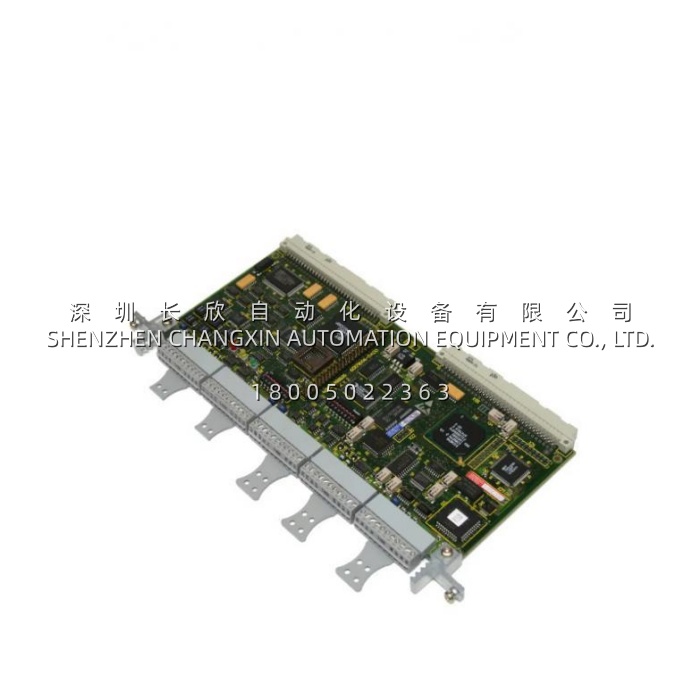

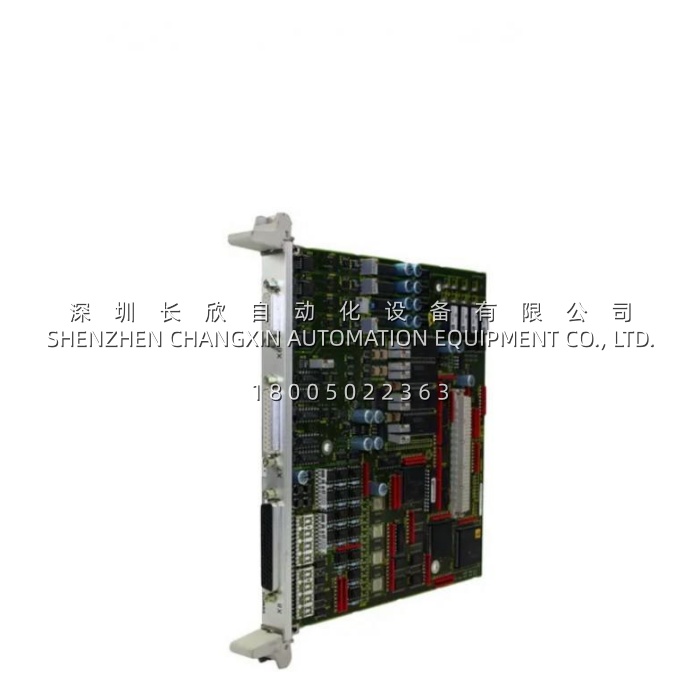

The Siemens 6DD1606-2AC0, designated as the SIMADYN D PT20G processor module, is a high-performance 16-bit control engine that served as a central computational unit within the legendary SIMADYN D drive and motion control platform. Built around an 80C186 microprocessor operating at 20 MHz, this module executes real-time closed-loop control algorithms, complex arithmetic tasks, and drive-related functions including torque control and line-commutated converter pulse generation .

The 6DD1606-2AC0 is characterized by its integrated SITOR interface for high-speed data exchange, robust EMC shielding for hostile industrial environments, and support for plug-in MS4x program memory modules that store both the system firmware and user applications . As the undisputed “brain” of legacy SIMADYN D systems, the Siemens PT20G remains an indispensable component for maintaining critical heavy-industry automation assets worldwide.

Application Scenarios

In a large-scale steel hot rolling mill, a catastrophic failure of the aging processor module brought the entire finishing stand to a halt. The mill’s legacy drive control system, responsible for the precise coordination of multiple high-power DC drives, relied entirely on the SIMADYN D architecture. With a replacement lead time of weeks from traditional channels, the plant risked millions in lost production. By sourcing a tested Siemens 6DD1606-2AC0 as a direct drop-in replacement, the engineering team restored full control functionality within hours. The PT20G module’s pre-programmed MS4x memory card preserved all the complex winding and tension control algorithms, enabling an immediate return to operation without costly reprogramming.

This case highlights the indispensable value of the 6DD1606-2AC0: it is the irreplaceable computational core that keeps legacy drive systems running . Whether deployed in steel rolling, paper machine drives, turbine control systems, or mine hoists, the Siemens PT20G module addresses the critical pain point of processor obsolescence in mission-critical installations, ensuring production continuity when no alternative exists.

Parameters

Description

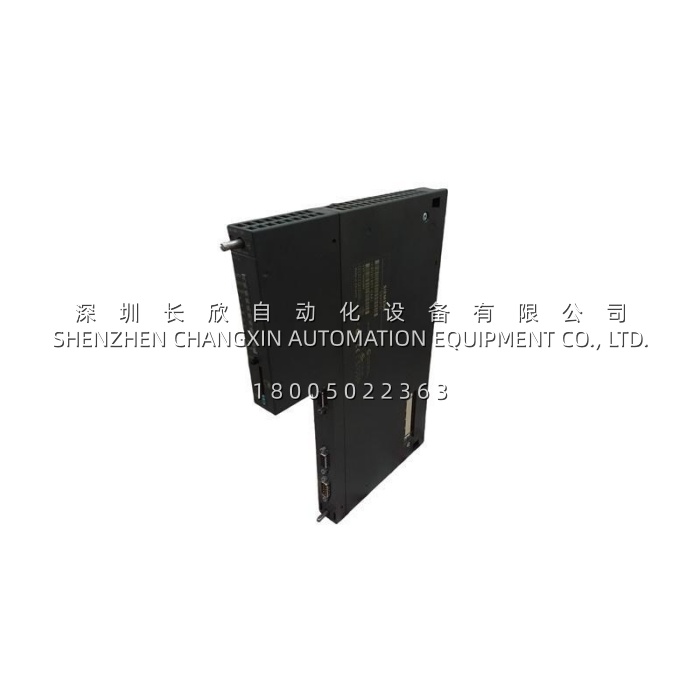

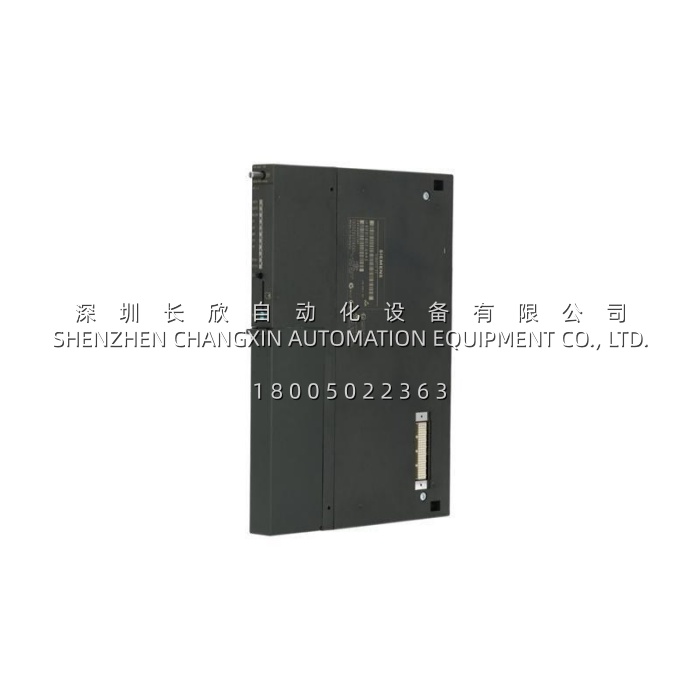

The 6DD1607-0AA2, designated as the Siemens FM 458-1 DP application module, is a high-performance 64-bit RISC-based coprocessor designed for the SIMATIC S7-400 automation system . Engineered specifically for demanding closed-loop control, motion control, and drive-related applications, this module offloads complex mathematical calculations from the main CPU to ensure deterministic, high-speed execution .

Built on a powerful 64-bit floating-point RISC processor architecture, the 6DD1607-0AA2 features substantial memory resources including 64 MB SDRAM and 16 MB DRAM, alongside a PROFIBUS-DP interface for seamless integration with drive systems . This module is configurable using CFC (Continuous Function Chart) and optional SFC (Sequential Function Chart), making it a versatile solution for industries requiring precision and reliability . Please note that this product is a direct, fully compatible replacement for the earlier 6DD1607-0AA0 version and is considered a legacy spare part .

Application Scenarios

In a hot-strip steel rolling mill, the existing S7-400 CPU was overwhelmed by the computational demands of synchronizing six stand drives, managing gauge control loops, and executing camming profiles at full rolling speed. By deploying the Siemens 6DD1607-0AA2 as a dedicated FM 458-1 DP application module, engineers offloaded all motion-critical calculations to the 64-bit RISC processor. The 6DD1607-0AA2 enabled closed-loop torque, speed, and position control for the multi-motor drives, ensuring high dynamic performance and preventing strip breakage during high-speed operation .

A critical pain point the 6DD1607-0AA2 addresses is CPU overload in high-speed continuous processes. Its dedicated coprocessor architecture ensures complex control math executes in deterministic time slices as short as 0.1 ms, independent of the main PLC scan . This eliminates jitter and guarantees loop stability, which is especially valuable in applications like winders, reeling machines, cross-cutters, and hydraulic drives with high dynamic requirements . The 6DD1607-0AA2 directly enables the continuation of operations for these legacy systems, which are often too costly to completely replace.

Parameters

Description

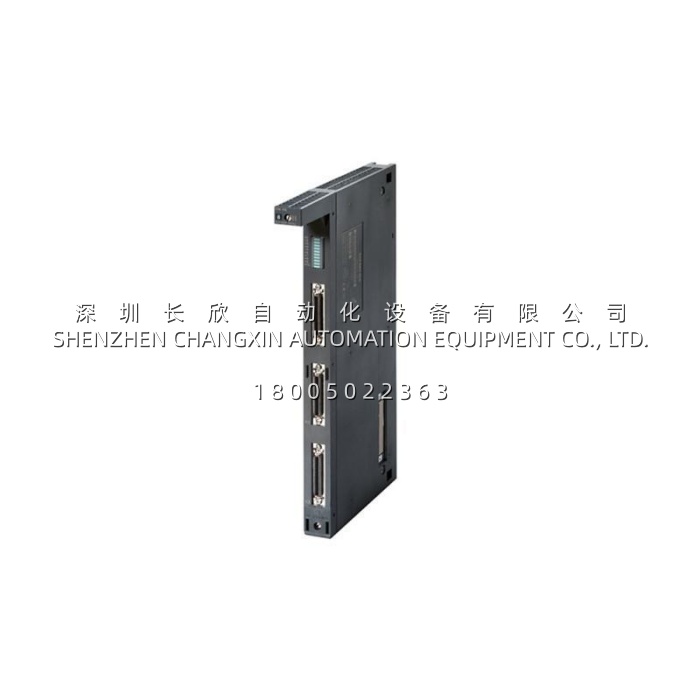

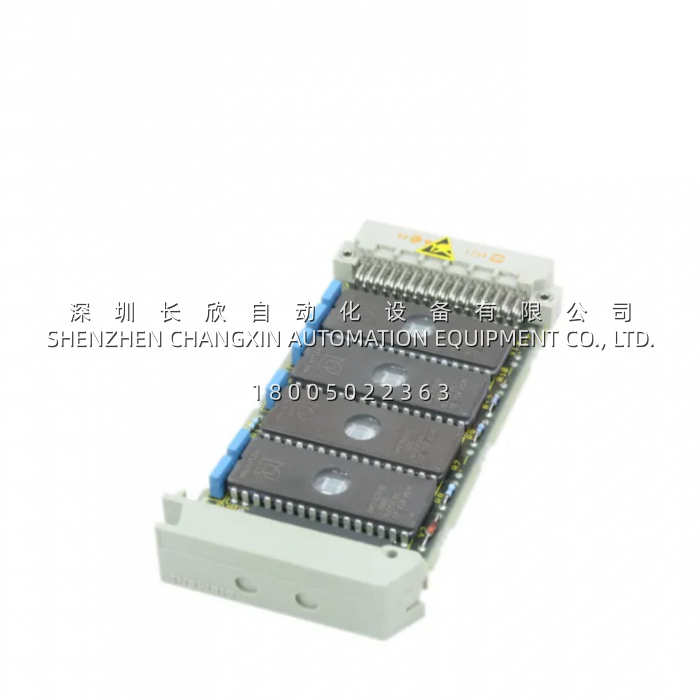

The Siemens 6DD1610-0AG1​ is a SIMADYN D Memory Submodule MS41, a 16-bit plug-in memory carrier designed for the SIMADYN D processor modules (PM3 / PM4 generation) and for standalone deployment inside SIMOVERT P 6SE12 and SIMOREG K 6RA24 drive cabinets where a dedicated program/data storage node is required outside the CPU’s onboard flash. It carries 512 KB EPROM​ for non-volatile program and firmware storage and 2 KB EEPROM​ for parameter sets, fault records, and runtime-calibrated data—splitting “code that never changes” from “values that must survive power loss but be writable online.” The MS41 is the canonical memory submodule for late-1990s to mid-2000s SIMADYN D drive racks powering roughing mills, section mills, large DC hoists, and marine propulsion converters, and it remains in active spare rotation because the EPROM silicon itself doesn’t wear out—only the EEPROM cell endurance and the rack’s backup battery chain eventually force a swap.h2 Application ScenariosOn the roughing-stand drive cubicle of a 4-high blooming mill (commissioned 1997, SIMOVERT P 6SE12 6-pulse DC drives, ~8 kA armature), the Siemens 6DD1610-0AG1​ MS41 sits in the SIMADYN D PM3 rack as the program carrier for the roll-gap auto-control and inter-stand tension observer. The EPROM side holds the D7-SYS application (C-language user blocks for the roll-force observer, compiled ~2003 and never touched since), while the EEPROM side stores the roll-diameter compensation table and the 12 preset “pass schedules” that the roller calls up at each billet size change. One winter, the cubicle’s space heater failed, the ambient dipped to -18°C, and the backup battery on the PM3 rack (a 3.6 V AA lithium chained to the MS41’s EEPROM supply) finally expired after nine years—right at the start of a night shift. The next billet change loaded “Pass Schedule 3” and the EEPROM returned all zeros; the gap-control loop went open-loop, and the first billet came out 18 mm undersize before the roller caught it. The fix: a spare Siemens 6DD1610-0AG1​ (EEPROM pre-loaded from the last good dump the OEM had archived on a 3.5″ floppy, then burned into the submodule via the PG’s EPROM programmer adapter) was plugged into the PM3 slot, the PM3 auto-enumerated the MS41, and the pass schedules came back. The maintenance lead’s note the next morning: “The EPROM saved us—the program was still there, just the EEPROM was drunk. If this had been an all-flash module with no battery separation, we’d have lost the whole D7-SYS project.” The plant now keeps three 6DD1610-0AG1​ on the shelf and has a quarterly “battery + EEPROM dump” PM on all four SIMOVERT P cubicles.h2

Parameter

h2 Technical Principles and Innovative Values

• Innovation Point 1: EPROM/EEPROM Split Architecture.​ The 6DD1610-0AG1​ deliberately separates “write-almost-never” (D7-SYS application code, C-user blocks, firmware patches) onto 512 KB EPROM and “write-often” (pass schedules, diameter comp tables, fault timestamps, auto-tuning constants) onto 2 KB EEPROM. The EPROM is UV-erasable in principle but Siemens ships it window-sealed, so in practice it’s “program once, last forever”—immune to battery death, ESD, and 25 years of thermal cycling. The EEPROM takes the wear (endurance ~10⁵ cycles) and the battery risk, but losing it only means “reload parameters from the OEM backup,” not “recompile the D7-SYS project.” This split is why a 6DD1610-0AG1​ swap after a battery failure is a 20-minute job, not a three-day requalification.
• Innovation Point 2: 16-Bit Bus Matching the PM3/PM4 Era.​ The MS41’s 16-bit data bus is timed for the PM3/PM4 processor’s external memory cycle (~150 ns class), not the 32-bit 60 ns bursts of later PM5/PM6 or TDC. This means the 6DD1610-0AG1​ is not​ backward-compatible with FM458 or TDC racks—those need their own memory submodules (different pinout, different timing). In plants that run mixed generations (PM3 on the roughing stand, FM458 on the finishing stands), the stores clerk must not cross these; the 6DD1610-0AG1​ only belongs in the PM3/PM4 / SIMOVERT P lane.
• Innovation Point 3: Offline EPROM Burn + Hot Plug Into Live Rack.​ Because the MS41 is a submodular plug-in (28-pin + 4×32-pin footprint on the PM3/PM4 carrier), a plant can pull a 6DD1610-0AG1, send it to a service house for EPROM re-burn (new D7-SYS patch, new pass schedules), and plug the returned unit into the spare slot of the same PM3 rack while the original stays live—then swap at the next planned stop. This “burn-offline, swap-fast” workflow is how many rolling mills have kept 1997-vintage SIMADYN D codebases alive through three decades without ever taking the D7-SYS project through a compiler migration.

Description

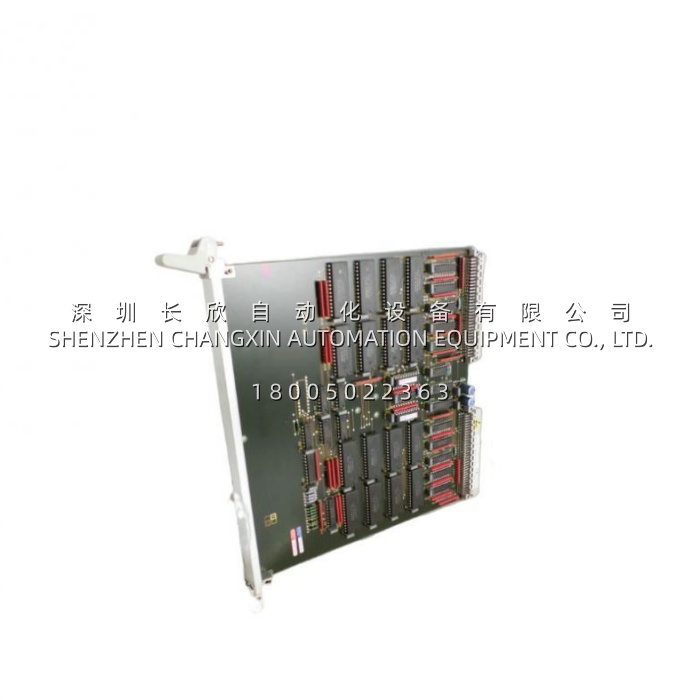

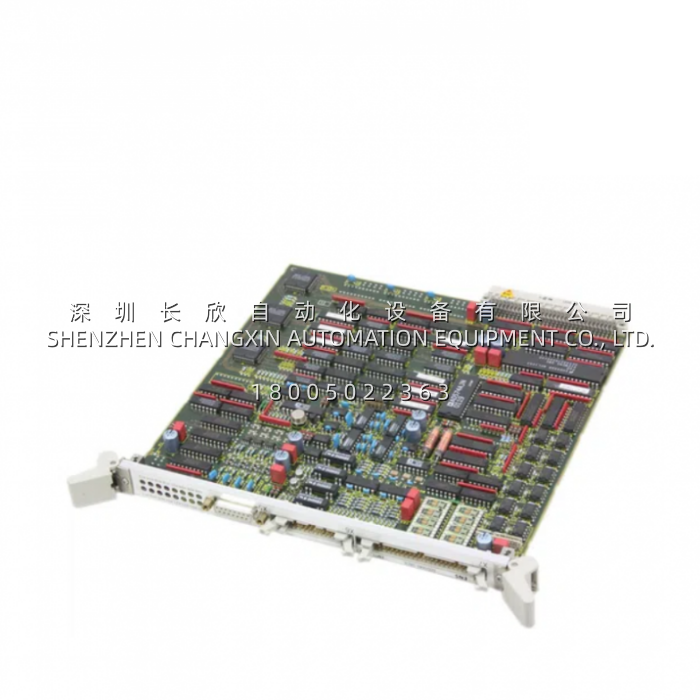

The SIEMENS 6DD1640-0AC0, designated as the EM11 I/O module, is a versatile mixed-signal input/output module engineered for the SIMADYN D high-performance digital control system . This 16-bit module integrates multiple signal types on a single Eurocard, providing a unified interface between the SIMADYN D processor and field devices such as sensors, actuators, and drives .

The SIEMENS 6DD1640-0AC0 combines analog and digital processing capabilities to support complex control loops. It features an architecture that includes analog-to-digital (A/D), voltage-to-frequency (V/F), frequency-to-digital (F/D), and digital-to-analog (D/A) conversion . The SIEMENS 6DD1640-0AC0 is designed for demanding applications requiring precise signal conditioning, high-speed binary inputs (including speed measurement up to 100 kHz), and robust output drivers . As a key component of the legacy SIMADYN D platform—discontinued as of October 1, 2017 —this module remains critical for maintaining existing installations in industries such as power generation, metals processing, and marine propulsion.

Application Scenarios

A major hydroelectric power plant in Scandinavia relied on a SIMADYN D control system for its turbine speed and excitation control. When the EM11 module managing the vital feedback loops for blade positioning and voltage regulation began to show intermittent faults, plant operators faced a critical challenge. A failure would have caused a costly plant shutdown and potentially jeopardized grid stability.

The solution was a direct replacement with the SIEMENS 6DD1640-0AC0. The module’s pre-configured analog inputs read the turbine’s rotational speed and temperature sensors, while its analog outputs precisely controlled the servo-valves for blade pitch. The digital outputs managed the excitation system’s contactors. The replacement SIEMENS 6DD1640-0AC0 restored full functionality, and the plant’s technicians were able to recommission the system using the existing parameter backups. This real-world scenario highlights how the SIEMENS 6DD1640-0AC0 addresses the critical pain point of preserving legacy control systems, enabling rapid recovery and avoiding disruptive, multi-million-dollar system upgrades.

Parameters

Product Overview

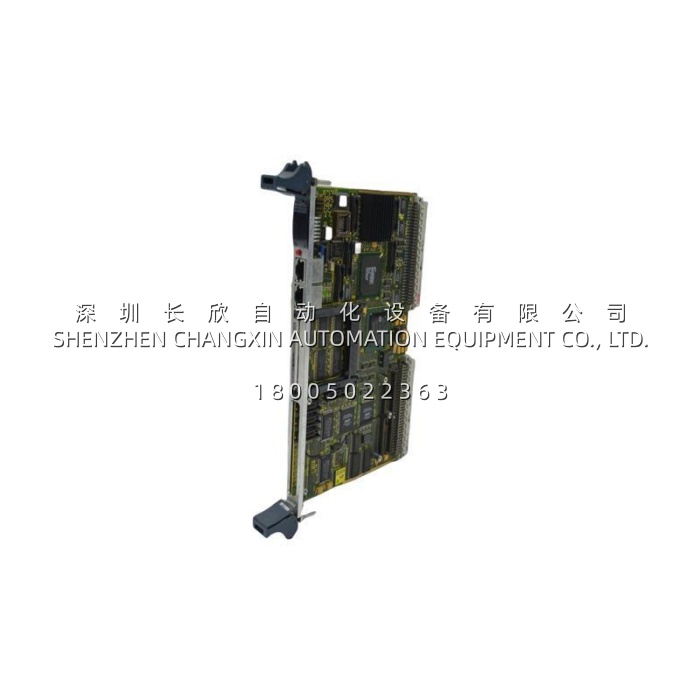

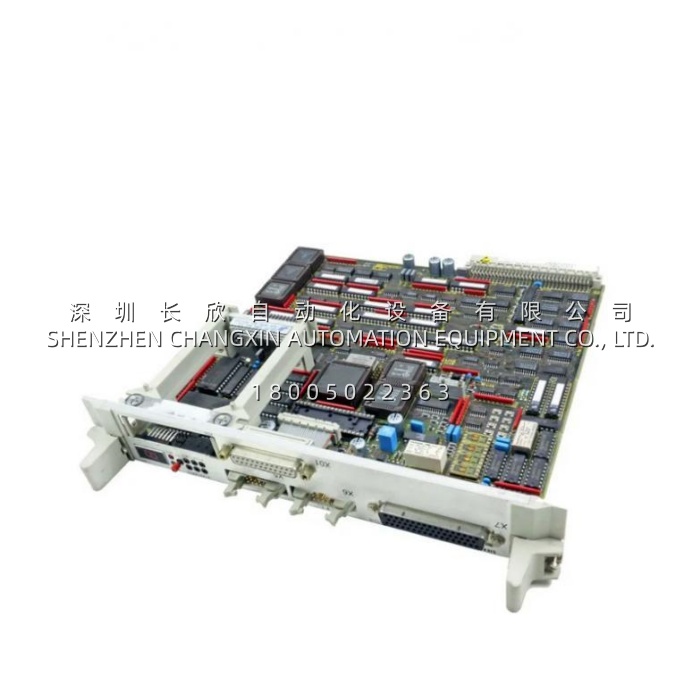

The Siemens 6DD1601-0AE0​ is a SIMADYN D PG16 processor module — the converter-dedicated processor in Siemens’ SIMADYN D high-performance drive-control family, positioned distinctly from the PM5/PM6 general-purpose CPUs (6DD1600-xx) and from the later SIMATIC TDC line (6DD1600-0BAx). The “PG16” designation ties to Prozessor für Gefäßsteuerung (processor for thyristor/converter control) — the Siemens 6DD1601-0AE0​ is engineered specifically to close firing-angle and field-current regulation loops for line-commutated thyristor converters: cycloconverter main drives on old tandem mills, 12-pulse/6-pulse rectifier bridges for generator exciters, HVDC light-type converter stations, and SITOR thyristor stack interfaces. Where a PM6 (6DD1600-0AK0) runs the mechanical-side vector/tension/AGC CFC loop, the Siemens 6DD1601-0AE0​ PG16 sits in the same or adjacent SIMADYN D subrack and owns the converter firing math — alpha-angle calculation, commutation-angle compensation, PSS/AVR outer loop, and the SITOR semiconductor interface that gates the thyristor firing pulses.Architecturally the Siemens 6DD1601-0AE0​ carries a 16-bit processor at 16 MHz — deliberately modest compared to the PM6’s 64-bit RISC, because the converter firing loop is a bounded calculation (alpha = f(Vdc_ref, Vac, Id, comm_drop)) that fits comfortably in 16-bit fixed-point, and the 16 MHz clock paired with <0.5 ms typical cycle is more than adequate for 6-pulse/12-pulse firing at 50/60 Hz line-commutated cadence. Memory is 512 KB program + 256 KB data — enough for the D7-SYS CFC chart that implements the converter regulation (often a standardized Siemens “converter object” CFC shipped with SIMADYN D, customized per stack). I/O is minimal and purpose-built: 4 BE (binary inputs, 24 V DC) + 4 BA (binary outputs) on the front, plus one SITOR interface (the dedicated firing-pulse/status link to Siemens thyristor stacks — SITOR being Siemens’ semiconductor/thyristor product line). Backplane buses are L-Bus (intra-rack) and SLL/SBP (Siemens Link Line / Serial Backplane) for inter-rack communication with PM6 siblings or with an S7-400 cell PLC — the Siemens 6DD1601-0AE0​ can exchange converter telemetry (Idc, Vdc, alpha_actual, fuse-fault, stack-temp) over SLL to a PM6 or directly to a DP/ethernet uplink via a CS8 in the same rack.The Siemens 6DD1601-0AE0​ is manufacturer-EOL, PM500 status since 1 Oct 2017, deleted without replacement — Siemens’ official note says “contact local Siemens office” because the PG16 function rolls into SIMATIC TDC + SINAMICS DCM / S120 active-front-end in new designs, but thousands of SIMADYN D converter racks (gen exciters, cycloconv main drives, HVDC valves) are still live, and the Siemens 6DD1601-0AE0​ remains the only correct like-for-like spare. It is not interchangeable with PM5/PM6 (different slot function, different CFC libraries) and not TDC-compatible (TDC is 6DD1600-0BAx / 6DD1601-0xx-TDC, different backplane).

Technical Specifications

Technical Specifications

Main Features and Advantages

High-Performance 32-bit Processing for Demanding Control Tasks

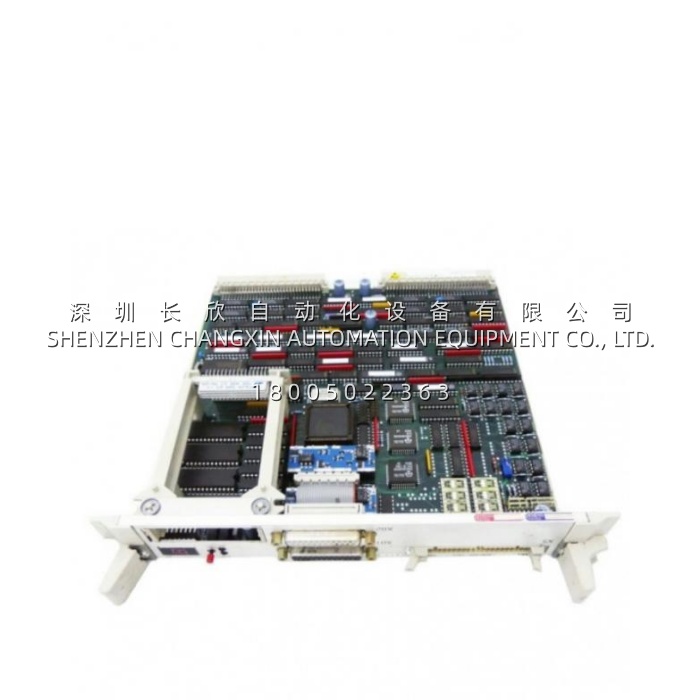

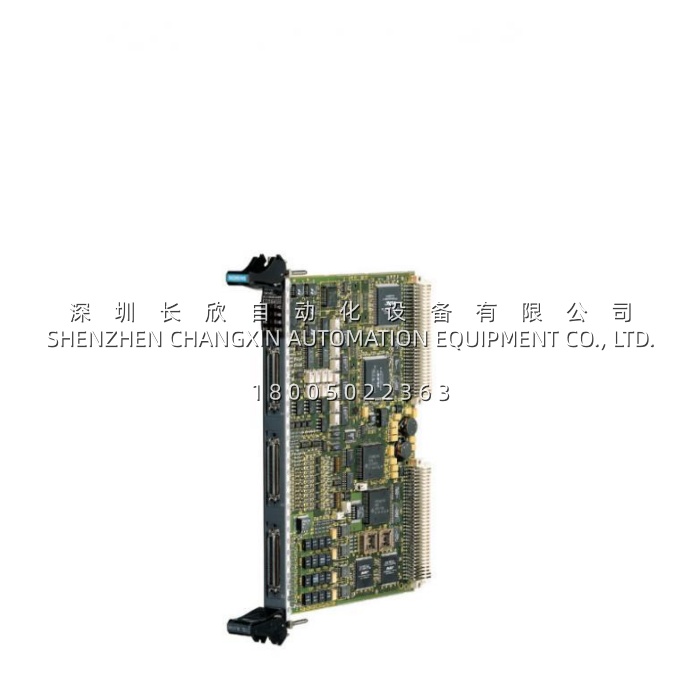

The SIEMENS 6DD1600-0AH0 delivers exceptional computational power for real-time automation applications through its 32-bit RISC processor architecture . With a base clock speed of 32 MHz and the ability to achieve control cycles as fast as 0.1 ms, the SIEMENS 6DD1600-0AH0 can execute complex closed-loop algorithms for current, speed, and position control with exceptional precision . The module’s 4 MB of DRAM provides ample memory for program execution, while the 64 KB of battery-backed SRAM ensures critical process parameters are retained during power interruptions, safeguarding the integrity of control systems .

Comprehensive Onboard I/O and Flexible System Integration

The SIEMENS 6DD1600-0AH0 integrates 4 binary digital inputs (24V DC), up to 4 of which are interrupt-capable for immediate response to time-critical events such as emergency stops or external triggers . Additionally, the module includes 4 analog inputs for direct acquisition of field signals, reducing the need for separate input modules in compact configurations . The SIEMENS 6DD1600-0AH0 communicates via the L-bus and C-bus, supporting both local rack communication and multi-rack system expansion with up to 8 PM4 modules per rack, enabling scalable automation solutions for large-scale industrial processes .

Rugged Industrial Design for Harsh Environments

Engineered for continuous 24/7 operation, the SIEMENS 6DD1600-0AH0 is built to withstand demanding factory floor conditions . The module’s wide operating temperature range of –25°C to +60°C and storage capability from –40°C to +85°C ensure reliable performance across diverse climatic environments . The robust DIN-style connector design ensures stable signal transmission in high-vibration applications common to steel mills and heavy manufacturing facilities . CE and UL certifications further confirm the SIEMENS 6DD1600-0AH0 meets stringent industrial safety and electromagnetic compatibility standards .

Legacy System Sustainment and MRO Value

With its official discontinuation in October 2015, the SIEMENS 6DD1600-0AH0 has become an essential MRO component for facilities operating existing SIMADYN D control systems . Plant maintenance teams rely on the SIEMENS 6DD1600-0AH0 to replace failed processor modules in aging equipment, avoiding costly system overhauls and preserving substantial capital investments in legacy machinery . The module’s compatibility with SIMADYN D engineering tools such as STRUC and CHART, and its support for EPROM and battery-backed program storage, ensures seamless integration into existing system configurations

Technical Specifications

Main Features and Advantages

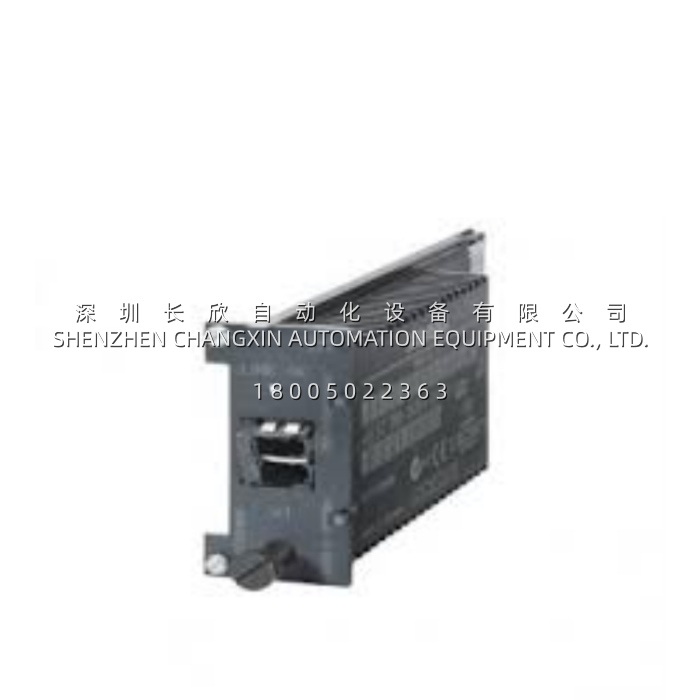

The Siemens 6DD2920-3AW2​ earns its keep as the gate-pulse “last mile” between a SIMADYN D control rack computing α (firing angle) at sub-ms resolution and a water-cooled thyristor stack pushing thousands of amps at 5 kV-class anode voltage. Its defining feature is the TAS21E pulse-driver architecture: multiple gate channels, each fed from the cubicle-level firing reference, shaped through the submodule’s pulse transformers and driven out to the thyristor gates with the isolation and drive strength the HV stack requires. In a water-cooled SIMOVERT D cubicle doing 4–10 kA rectifier duty (think potline rectifier for aluminum smelting, 5–10 MW DC), firing asymmetry of even 10–20 µs between series thyristors shows up as voltage imbalance across the string, localized thyristor heating, and accelerated derating. The Siemens 6DD2920-3AW2​ keeps those pulses aligned — the submodule is the component the commissioning engineer checks first when a potline rectifier starts showing asymmetric ripple on the DC bus.The second advantage is the voltage-class positioning. At 5.00 kV / 3.90 kV, the Siemens 6DD2920-3AW2​ sits in the mid-high tier of the TAS21E water ladder. The ladder exists because SIMOVERT D & S water-cooled cubicles were built across a range of DC-bus and thyristor-anode voltages — a zinc-electrolysis rectifier at ~700–1000 V DC doesn’t need the same TAS21E voltage class as a potline rectifier at 800–1500 V DC, and a large rolling-mill main drive (DC, 6–12 MVA) pushes further. The 3AW2 at 5.00/3.90 kV is the “sweet spot” for mid-mega-watt DC smelter potlines and large single-drive mill mains — which is exactly why it’s the one most smelter spares buyers hunt. If a plant accidentally buys a 3AW1 (4.00/2.80 kV) thinking it’s “close enough,” the voltage rating is mismatched to the cubicle’s thyristor string — not immediately fatal but outside Siemens spec, and the pulse-transformer turns ratio / isolation margin won’t match the original BOM.Third, the “no electronic thyristor protection” design choice deserves a paragraph because it’s the most misunderstood line on the datasheet. The Siemens 6DD2920-3AW2​ does not carry overcurrent, di/dt watchdog, or snubber-fault detection — those live in the SIMOVERT D cubicle’s protection layer (often a separate 6DD2920 sibling or in the SIMADYN D control rack’s fault chain via fiber). The TAS21E’s job is trigger integrity, not protection tripping. This split-layer design means a TAS21E failure (pulse-transformer drift, gate-drive IC aging) will typically show up as firing asymmetry or a “missing pulse” fault reported by the protection layer, not as a self-tripped submodule. For maintenance teams, that means: if the SIMOVERT D cubicle throws a “thyristor firing fault” or “asymmetric commutation” alarm, the Siemens 6DD2920-3AW2​ is the first pull-and-swap candidate, even though the protection that raised the alarm lives elsewhere.Fourth, ruggedness in water-cooled cubicle environment. The Siemens 6DD2920-3AW2​ lives inside a cubicle where the ambient is dominated by the water-manifold heat, the transformer hum, and the EMI of kV/KA switching 6–12 times per AC cycle. The submodule’s pulse transformers and gate-drive stages are potted/configured for that EMI floor — a generic gate-drive card from a low-power drive wouldn’t survive a week in the same cubicle. That’s why there’s no “universal replacement” — the TAS21E is cubicle-specific, and the 2008 “canceled without substitution” line from Siemens means you can’t even buy a “new equivalent” from the OEM.

Application Field

The Siemens 6DD2920-3AW2​ deploys exclusively in SIMOVERT D & S water-cooled power cubicles where the TAS21E 5.00/3.90 kV class matches the thyristor string. The single largest band is primary aluminum smelters — potline rectifiers, typically 5–15 MW DC per cubicle string, water-cooled thyristor stacks, 24-pulse or 12-pulse arrangements, feeding 800–1500 V DC potlines at 4–10 kA. In these plants the Siemens 6DD2920-3AW2​ is the gate-pulse submodule in every water-cooled rectifier cubicle; a potline typically has 2–4 cubicles per potroom section, and a smelter with 200–400 pots has dozens of SIMOVERT D water cubicles. The TAS21E 3AW2 is the mid-voltage class here — not the highest (that’s 3AW3/3AW4 for the 1.5–2.0 kA/1.6–2.0 kV upper tier), not the lowest (3AW1 for smaller rectifier legs), but the volume SKU for the “standard” potline rectifier cubicle. When a smelter retainer plant decides “we’re running these pots 30+ years,” the Siemens 6DD2920-3AW2​ becomes a strategic spare bought in lots of 4–8 per annual shutdown.Chlor-alkali and zinc-electrolysis rectifiers are the second band — same architecture (water-cooled SIMOVERT D cubicles, DC bus ~500–1200 V, currents 5–20 kA), TAS21E trigger submodule in each cubicle. The 5.00/3.90 kV rating of the Siemens 6DD2920-3AW2​ maps to the mid-tier thyristor strings in these plants; higher-current/lower-voltage cells might drop to 3AW1, lower-current/higher-voltage cells go to 3AW3.Large DC rolling-mill main drives and mine-winder DC supplies are the third: a single-stand reversing roughing mill or a mine-winder 5–8 MW DC drive often uses a SIMOVERT D water-cooled cubicle (especially in retrofits where the original 1970s/80s mercury-arc or air-cooled thyristor cubicle was swapped for SIMOVERT D in the 1990s). The Siemens 6DD2920-3AW2​ sits in that cubicle’s trigger section. These applications are more intermittent than smelter potlines (mills run 2-shift, winders cyclic), but the peak kA and the water-cooling mean the TAS21E sees the same EMI/thermal profile.Test-stand and research-cell HV DC supplies round out the map — university megawatt rectifier labs, national-lab pulsed-power supplies, shipyard DC test bays — anywhere a water-cooled SIMOVERT D cubicle was spec’d in the 1990s–2000s and the 5.00/3.90 kV TAS21E was the BOM choice.One buying note that keeps biting people: the Siemens 6DD2920-3AW2​ is water-cooled cubicle only. If the plant’s SIMOVERT D cubicle is air-cooled (“FOR AIR”), the correct submodule is 6DD2920-1AW1 (TAS21D), not the 3AW2. Mixing them is a mechanical-non-fit (water-manifold vs. air-fin), not just an electrical mismatch. Always confirm “FOR WATER” vs. “FOR AIR” on the cubicle nameplate before ordering 6DD2920 spares.

Related Products

• 6DD2920-3AW0​ – TAS21E water-cooled, base voltage class, without electronic thyristor protection; the entry-tier water sibling of the Siemens 6DD2920-3AW2​ for lower-voltage SIMOVERT D&S water cubicles.
• 6DD2920-3AW1​ – TAS21E water 4.00 kV / 2.80 kV; one step below the Siemens 6DD2920-3AW2, for mid-low water-cubicle voltage strings.
• 6DD2920-3AW3​ – TAS21E water 6.80 kV / 5.60 kV; one step above the Siemens 6DD2920-3AW2, for higher-voltage potline / HVDC-adjacent SIMOVERT D water cubicles.
• 6DD2920-3AW4​ – TAS21E water 7.30 kV / 6.00 kV; top of the water TAS21E ladder, highest-voltage SIMOVERT D&S water cubicles.
• 6DD2920-1AW1​ – TAS21D air-cooled (“FOR AIR”), without electronic thyristor protection; the air-cooled parallel to the TAS21E water family — do NOT substitute for Siemens 6DD2920-3AW2​ in a water cubicle (mechanical non-fit).
• 6DD1681-0AE2 / 6DD1681-0AFx​ – SIMADYN D accessory / terminal / mounting items often ordered alongside 6DD2920 power-section spares for full cubicle rebuilds.
• 6DD1607-0AA2​ – FM458-1DP (SIMADYN D / TDC application module); the control-rack CPU that computes firing angle α and feeds the Siemens 6DD2920-3AW2​ in the power cubicle via fiber/bus — not a substitute, called out so buyers see the control/power split.
• 6SE70 / 6RA70​ – Not directly related (those are MasterDrive / DC-Master, lower power than SIMOVERT D&S), flagged here to prevent confusion: 6DD2920 lives in megawatt SIMOVERT D&S cubicles, not in 6SE70/6RA70 drive cabinets

Product Overview

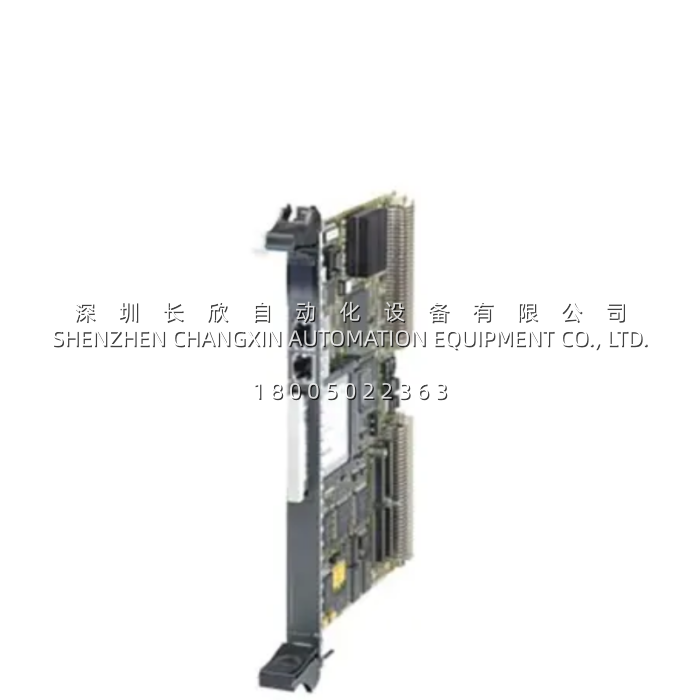

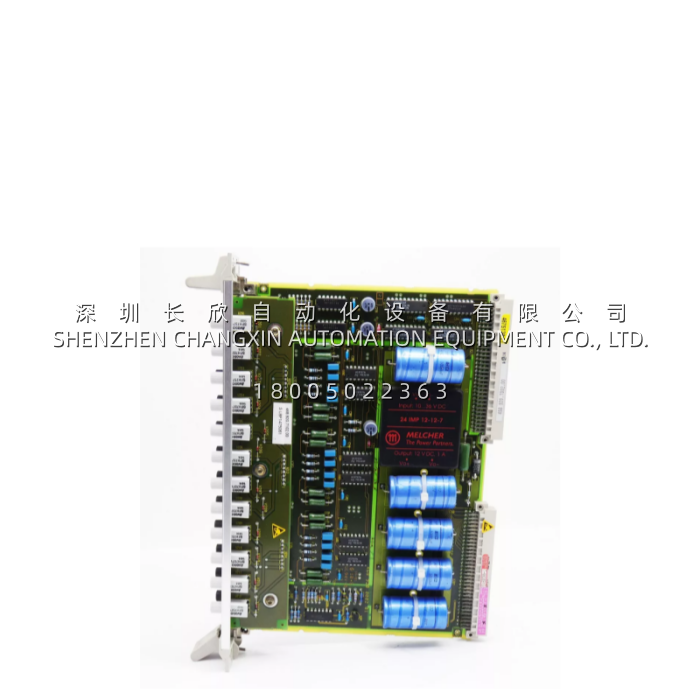

The SIEMENS 6DD2920-0XD01 is a specialized communication module designed for the SIMADYN D and SIMATIC TDC automation platforms. This module, also recognized as part of the EXM 448-2 family, serves as a high-performance Link/Synchronization Expansion Module that enables high-speed data exchange and precise clock synchronization between multiple TDC racks . The SIEMENS 6DD2920-0XD01 is an essential component for complex industrial applications where distributed control architectures require deterministic communication and coordinated operation across multiple processing nodes.

The SIEMENS 6DD2920-0XD01 functions as a communication interface module that supports multiple industrial protocols, including PROFIBUS-DP, MPI, and PROFINET . It provides robust interface capabilities for line-side converters and other power control equipment within SIMADYN D systems . The SIEMENS 6DD2920-0XD01 is designed for installation in compatible racks such as the UR5213 and UR5216, typically occupying dedicated Link EXM slots (Slot 3 or 4) to facilitate inter-rack communication .

The module’s fiber optic interfaces enable low-latency, high-bandwidth connectivity between distributed TDC racks, allowing multiple CPU modules like the PM16 to access Global Data Memory and synchronize their sampling clocks with exceptional precision . This capability makes the SIEMENS 6DD2920-0XD01 particularly valuable in applications such as multi-stand rolling mills and coordinated drive control where tight synchronization between controllers is critical. As a product within the Siemens legacy portfolio, the SIEMENS 6DD2920-0XD01 is primarily utilized for maintaining, upgrading, and extending the life of existing SIMADYN D and TDC installations.

Technical Specifications

Main Features and Advantages

High-Speed Inter-Rack Communication: The SIEMENS 6DD2920-0XD01 excels at providing high-speed, low-latency communication between distributed TDC racks. Through its fiber optic interfaces, the module enables rapid data exchange and sampling clock synchronization across multiple controllers, ensuring coordinated operation in complex multi-drive and process control applications . The module supports data rates up to 12 Mbit/s, providing sufficient bandwidth for demanding real-time control requirements.

Precision Clock Synchronization: The SIEMENS 6DD2920-0XD01 offers advanced clock synchronization capabilities essential for time-critical applications. By synchronizing the sampling clocks of multiple TDC racks, the module ensures that control calculations and data acquisition events occur with deterministic timing across the entire automation network . This synchronization capability is critical for applications such as multi-motor coordination, electronic shafting, and tension control systems.

Multiple Protocol Support: The SIEMENS 6DD2920-0XD01 provides flexible connectivity options through support for multiple industrial communication protocols. Compatibility with PROFIBUS-DP, MPI, and PROFINET enables integration with various field devices, controllers, and higher-level systems . This multi-protocol capability makes the SIEMENS 6DD2920-0XD01 a versatile solution for diverse automation architectures and facilitates seamless integration into existing SIMADYN D and TDC-based installations.

Robust Industrial Design: The SIEMENS 6DD2920-0XD01 is engineered for reliability in demanding industrial environments. With an operating temperature range of -25°C to +60°C and IP20 protection, the module performs consistently in harsh conditions where temperature fluctuations, vibration, and electromagnetic interference are common . The module’s robust construction ensures long-term reliability and minimal downtime in continuous operation scenarios.

Legacy System Support: As an essential component for the SIMADYN D and TDC platforms, the SIEMENS 6DD2920-0XD01 is critical for maintaining operational continuity in industries that have standardized on these systems. The module enables organizations to extend the useful life of their existing automation infrastructure while supporting coordinated operation across multiple racks .

Application Field

The SIEMENS 6DD2920-0XD01 is primarily deployed in heavy industrial applications where the SIMADYN D and TDC platforms are established standards. The module’s high-speed communication and synchronization capabilities make it indispensable for applications requiring coordinated control across multiple distributed controllers.

In the metals industry, the SIEMENS 6DD2920-0XD01 is extensively used in multi-stand rolling mills, where precise coordination between individual mill stands is essential for maintaining product quality and process stability . The module facilitates the high-speed data exchange required for torque and speed coordination, enabling applications such as synchronous operation, dancer and tension controls, winders, and complex setpoint calculations for cross-cutters .

The SIEMENS 6DD2920-0XD01 also serves critical roles in power generation and transmission applications. The module is used in high-voltage DC power transmission systems and static reactive power compensation equipment, where precise synchronization between multiple converter stations is required . The fiber optic interfaces of the SIEMENS 6DD2920-0XD01 provide the reliable, low-latency communication essential for these demanding applications.

For MRO (Maintenance, Repair, and Operations) applications, the SIEMENS 6DD2920-0XD01 is a vital spare part for organizations with installed SIMADYN D and TDC systems. Industries including automotive manufacturing, paper and pulp production, and mining operations rely on the availability of the SIEMENS 6DD2920-0XD01 to maintain production continuity while planning systematic migration to newer platforms.

Product Overview

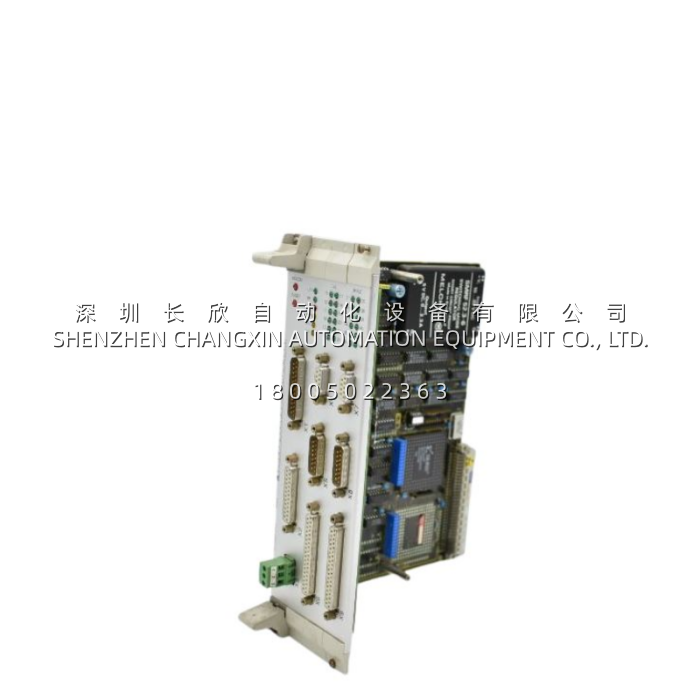

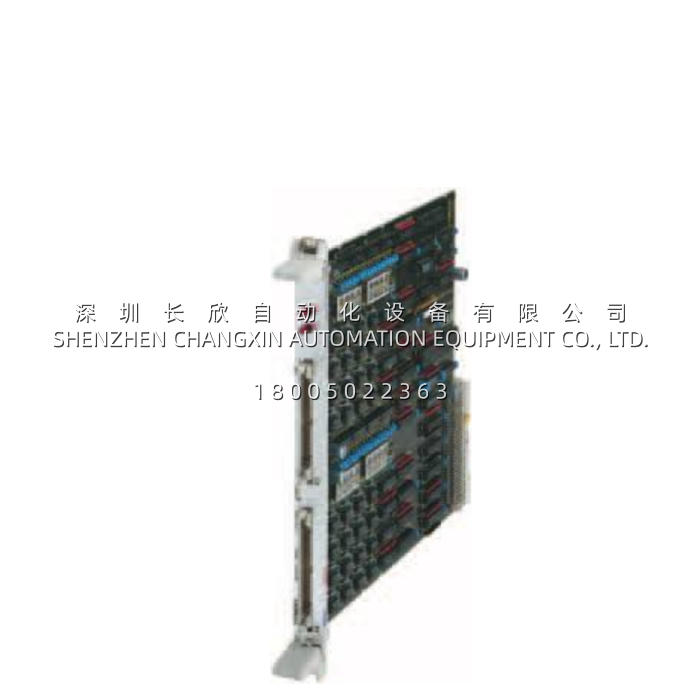

The Siemens 6DD2920-0AL0​ is an AUL2 trigger monitoring and evaluation logic module, purpose-built for the power section of SIMADYN D thyristor converter stacks. Its first critical distinction — and the one that trips up engineers new to the platform — is where it lives: the 6DD2920-0AL0​ does not​ plug into the SIMADYN D Euro-rack backplane alongside PM4/PM5/PM6 processors. Instead, it mounts as a daughter/sub-module onto a SAV21 or SAV22 power interface module (Leistungsteil-Interface), which itself sits in the power/trigger chain between the SIMADYN D processor’s IT (impulse/trigger) board and the thyristor valve gates. The AUL2 designation comes from the German AuswertungsLogik (evaluation logic) for trigger monitoring — the module’s job is to watch what the firing pulses are actually doing at the valve level and kill them the moment something drifts.What the Siemens 6DD2920-0AL0​ does internally is pure hardware: two independent trigger-monitoring channels, each accepting 200 mA–2 A firing current range, with dV/dt sensing on the thyristor anode–cathode voltage to detect false turn-on, pulse loss, short-circuit, and commutation failure. Response is <10 µs from fault detect to pulse-block — completely bypassing the PM’s software scan cycle. In a rolling-mill main drive or HVDC valve group where a single thyristor misfire cascades into a stack-killer fault, that hardware-level fast trip is the difference between “alarm + clean shutdown” and “blown fuses + week-long rebuild.” The 6DD2920-0AL0​ gets its 24 V DC from the SAV21/SAV22 carrier’s isolated internal rail, talks to the carrier via the local pin header (not PROFIBUS, not C-Bus, not L-Bus), and raises a hardware alarm output plus LED per channel when something trips.Critical for spare-pool managers: Siemens canceled the 6DD2920-0AL0​ effective April 1, 2008​ with the explicit status “abgekündigt ohne Ersatz” — canceled without substitution​ . There is no AUL3, no TDC-era replacement, no SINAMICS analog that drops onto SAV21/SAV22. If your SIMADYN D power section still runs SAV21/SAV22 (which most 1995–2008 vintage mills/hydro/HVDC do), the Siemens 6DD2920-0AL0​ is a dead-end spare — NOS or verified-pull is the only path, and the “no sub” status means you can’t even cross-specify.

Technical Specifications
