Description

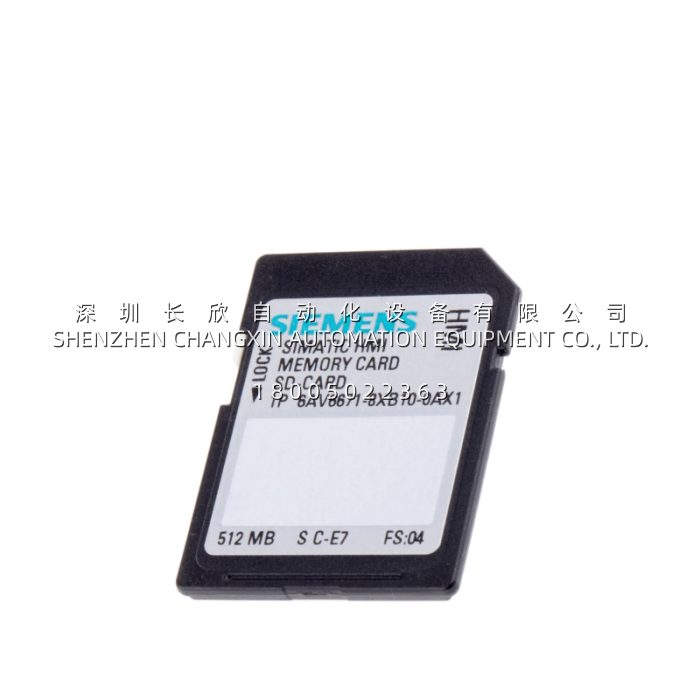

The SIEMENS 6AV6671-8XB10-0AX1 is a genuine SIMATIC SD memory card designed specifically for Siemens HMI (Human-Machine Interface) devices. This 512 MB Secure Digital card provides reliable, industrial-grade storage for project backups, recipe data, and system archives across a wide range of legacy SIMATIC panels including the MP177, MP277, MP377, OP77B, and TP/OP277 series .

Engineered for the demanding conditions of industrial automation, the SIEMENS 6AV6671-8XB10-0AX1 delivers a maximum read and write speed of 1.6 Mbit/s and features advanced wear levelling technology to extend its lifespan . The 512 MB capacity is specifically optimized for Windows CE-based HMI panels, which have limitations on larger storage media .

Application Scenarios

A large automotive manufacturer operated multiple production lines monitored by SIMATIC MP277 touch panels. When one panel’s internal memory became corrupted, the plant risked losing years of accumulated recipe configurations and alarm history. The maintenance team used a SIEMENS 6AV6671-8XB10-0AX1 SD card to perform a full system backup and restore, recovering the panel to full operation within 30 minutes .

This scenario highlights the critical role of the SIEMENS 6AV6671-8XB10-0AX1 in addressing key pain points: rapid disaster recovery, reliable data retention, and seamless migration of HMI configurations across identical panels. The card’s plug-and-play compatibility with panels featuring an SD/MMC slot ensures that operators can quickly restore systems without complex reconfiguration .

Parameters

Description

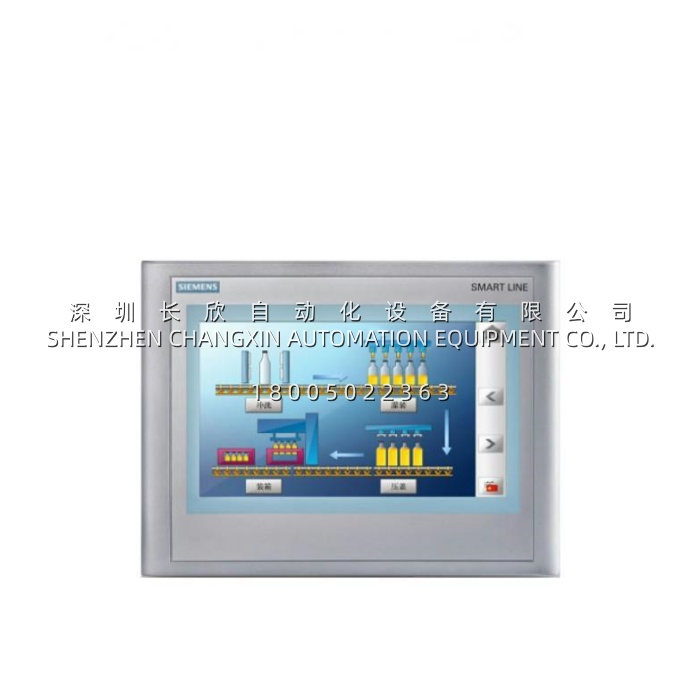

The Siemens 6AV6648-0CE11-3AX0​ is a SIMATIC HMI SMART 1000 IE V3, the 10.1-inch member of Siemens’ Smart Line V3 family—a value-tier touch panel purpose-built for S7-200 SMART, LOGO!, and third-party PLC ecosystems rather than the S7-300/400/1200/1500 world of Comfort and Unified panels. It pairs a 10.1″ widescreen TFT (1024 × 600, 65536 colors) with an ARM 600 MHz core, 128 MB RAM, 8 MB user flash, isolated RS422/485, one RJ45 Ethernet, and a USB 2.0 host port, all behind an IP65 front bezel. Configured exclusively through WinCC flexible SMART V3 (not TIA Portal), the SMART 1000 IE V3 became the default 10″ HMI for cost-sensitive OEM machines—textile, packaging, bottling, water treatment skids, and Asian-market machine tools—where a full Comfort Panel budget couldn’t be justified but a 7″ screen felt cramped for P&ID + alarm buffer.h2 Application ScenariosA circular knitting machine builder in Zhejiang ships 40 machines a month to Bangladesh and Vietnam, each spec’d with an S7-200 SMART CPU (6ES7288-1SR40-0AA0) and a Siemens 6AV6648-0CE11-3AX0​ as the operator face. The 10.1″ widescreen renders the needle-selection pattern grid (128 × 96 pixels per course), the yarn-break alarm buffer, and the production counter simultaneously—something the 7″ Smart 700 IE V3 couldn’t fit without tabbing, which the floor operators hated at shift change. The Ethernet port talks natively to the S7-200 SMART over S7 protocol—no CP communication card, no extra DIN-rail node, just an RJ45 landed on the same unmanaged switch that also carries the servo drive diagnostics. The RS485 port runs Modbus RTU to a third-party Chinese tension controller that refuses PROFINET. When Siemens announced the Smart Line V3 into “product discontinued” status, the builder didn’t panic—they allocated 20 6AV6648-0CE11-3AX0​ spares, cloned the WinCC flexible SMART project onto USB sticks for field swaps, and kept the BOM alive. Three years later, the same panel still ships because the S7-200 SMART itself is still the volume CPU in that price bracket, and there’s simply no cheaper 10″ path that talks S7-native Ethernet.h2

Parameter

h2 Technical Principles and Innovative Values

• Innovation Point 1: S7-200 SMART Native Ethernet Without a CP Card.​ The 6AV6648-0CE11-3AX0​ speaks S7 protocol over its RJ45 port straight to an S7-200 SMART CPU—up to 4 PLCs on one HMI session. For OEMs, this kills the old S7-200 + OP/HMI architecture that needed a CP243-1 or MPI cable; one CAT5e run does PLC + HMI + remote I/O heartbeat. The Ethernet port also carries Modbus TCP and EtherNet/IP, so the same panel can sit on a Rockwell CompactLogix or Schneider M340 skid if the OEM exports.
• Innovation Point 2: Capacitor-Backed RTC, No Battery Swap.​ Unlike Comfort Panels that ship with a coin-cell CR1220 behind the bezel (which dies ~5–7 years and needs a bezel pull), the 6AV6648-0CE11-3AX0​ uses a super-capacitor RTC system. It holds time through a 24-hour power loss, recharges when live, and is genuinely maintenance-free for the panel’s lifetime. For machines shipped to remote sites (agricultural pumps, village water skids), this is the difference between “set and forget” and a service call.
• Innovation Point 3: Dual-Orientation + 35° Tilt Envelope.​ The Smart V3 mechanicals allow both portrait and landscape cutouts, with up to 35° tilt without external ventilation. The 6AV6648-0CE11-3AX0​ can therefore sit on a sloped operator pendant (common in textile and injection molding) or a vertical door without the ARM core throttling. Most 10″ panels in this price bracket lock you to landscape only.

Description

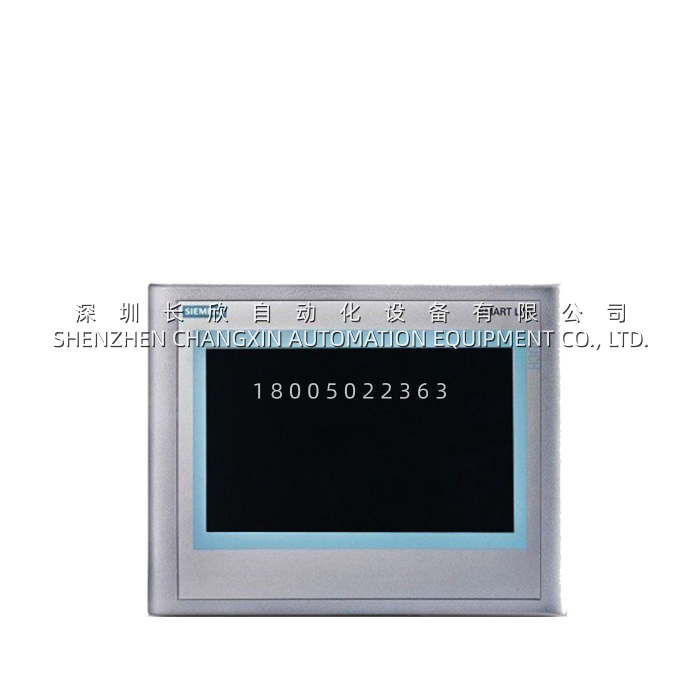

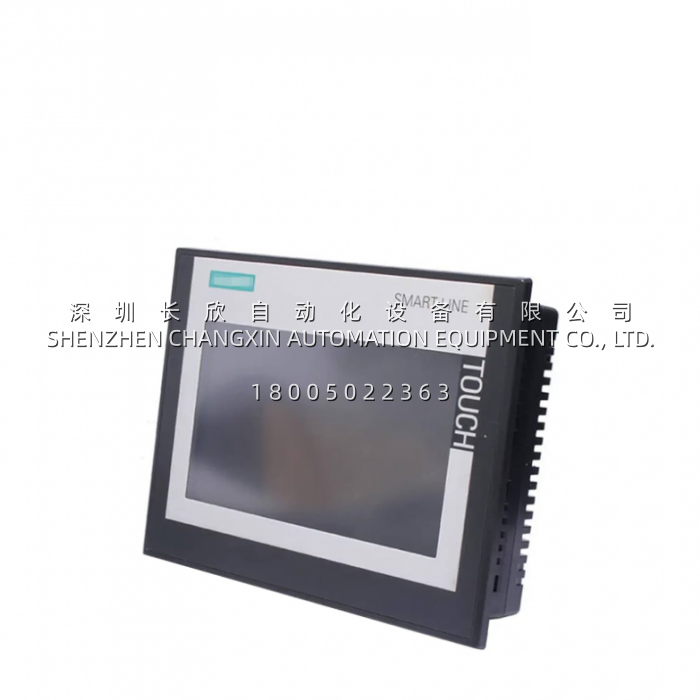

The 6AV6648-0CC11-3AX0, also known as the SIMATIC HMI Smart 700 IE V3, is a cost-effective 7-inch touch operator panel from Siemens, designed specifically for basic visualization and control tasks in compact automation systems. As part of the third-generation Smart Line series, this panel features a widescreen TFT display with 65,536 colors, offering clear and reliable visual feedback for machine-level applications.

Engineered for simplicity and efficiency, the 6AV6648-0CC11-3AX0 is configured using the dedicated WinCC flexible Smart V3 engineering software, making it an ideal companion for Siemens S7-200 SMART PLCs and other small controllers. Its combination of essential HMI functionality, robust communication options, and a modern industrial design ensures that it meets the core needs of small production lines and standalone machinery.

Application Scenarios

In a small packaging machine manufacturer’s workshop, an engineer is setting up a new automated shrink-wrapping line. They need an HMI that can be quickly configured to display machine status, adjust temperature setpoints, and log production counts without the complexity and cost of a high-end panel. The Siemens 6AV6648-0CC11-3AX0 Smart 700 IE V3 is the ideal solution. Its simple integration with the S7-200 SMART PLC via the integrated Ethernet interface allows for high-speed communication and program downloads.

A key pain point this panel addresses is the balance between functionality and affordability. Many small to medium-sized machines require reliable operator interaction but cannot justify the expense of advanced panels. The 6AV6648-0CC11-3AX0 solves this by providing essential features like alarm handling (up to 400 bit messages), recipe management, and data logging to a USB drive, all within a compact, cost-optimized package. In a real-world scenario, a system integrator replaced an older 1st-generation Smart 700 panel with the 6AV6648-0CC11-3AX0, noting the vast improvement in display color quality, touch sensitivity, and the ability to back up recipes to a standard USB stick, significantly simplifying maintenance and changeover processes.

Parameters

Description

The 6AV6648-0AE11-3AX0​ is Siemens’ SIMATIC Smart 1000, the 10.2-inch widescreen non-IE variant of the China-localized Smart Line family, engineered for cost-sensitive machine-level visualization on S7-200, S7-200 SMART, and selected third-party PLCs (Mitsubishi FX, Omron CP1). Powered by an ARM 400 MHz processor with 64 MB DDR SDRAM + 8 MB Flash, the 6AV6648-0AE11-3AX0​ runs on WinCC flexible SMART (China SP2 + HSP) and delivers a 16:9 800×480 TFT at 256 colors — enough for recipe lists, alarm banners, and I/O faceplates on small-to-mid OEM machines where a Comfort panel’s BOM would blow the budget.Configured exclusively through WinCC flexible SMART (free open-source components included on the companion CD), the 6AV6648-0AE11-3AX0​ is now phased toward the IE successor line (0BE11 → 0CE11 V3 → 0DE11 V4 → 0EE11 V5), but remains actively sourced as a spare for installed S7-200 bases that never migrated to S7-1200 + KTP.

Application Scenarios

A local injection-molding OEM in Ningbo still standardizes 180–260 t machines on S7-200 CPU 224CN + 6AV6648-0AE11-3AX0​ as the HMI bundle — a pairing unchanged since 2010 because the commercial math works. The 10.2″ widescreen fits two mold-parameter pages side-by-side (barrel zone temps left half, stroke/tonnage trend right half) without scrolling, and the single RS485 port talks PPI to the S7-200 at 187.5 kbps over a 9-pin Sub-D — no Ethernet switch, no PN coupler, no extra BOM line. When a molder’s maintenance guy cracked the 6AV6648-0AE11-3AX0​ overlay during a clamp-grease job, the OEM shipped a tested spare the same day. The customer downloaded the WinCC flexible SMART project via PC/PPI cable (6ES7 901-3CB30) in 12 minutes, and the night shift ran uninterrupted. For a machine that invoices ¥6 k/day, the sub-1-hour HMI swap beats a ¥4 k KTP1000 + TIA migration every time — especially when the S7-200 itself still has five years of mechanical life left.

Parameters

Application Scenarios

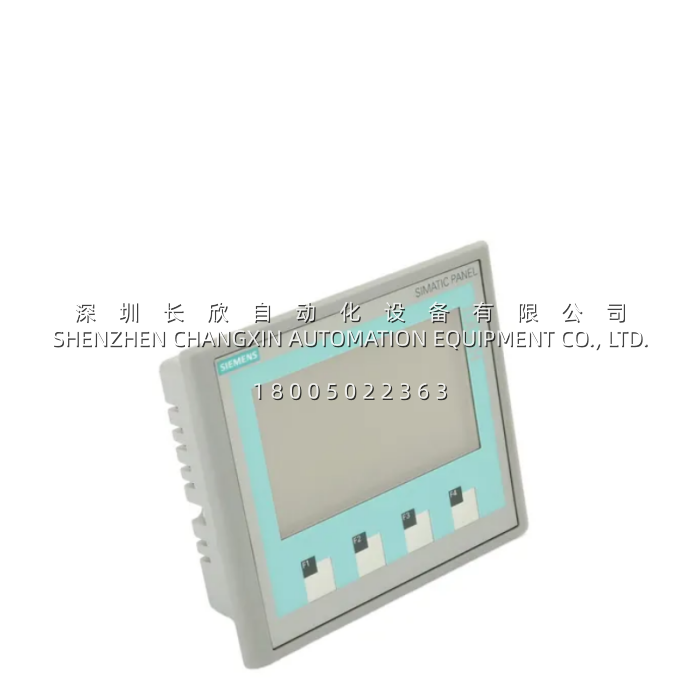

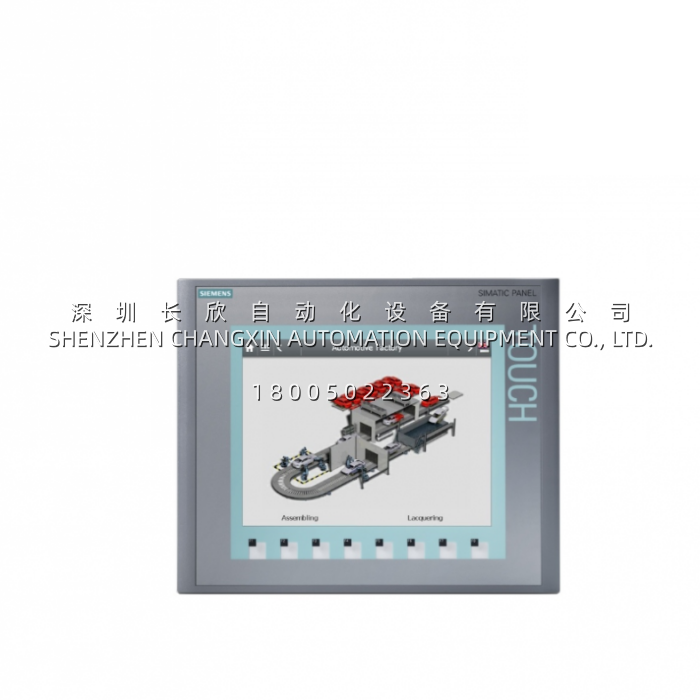

On a busy packaging line for a mid-sized food manufacturer, operators struggled with a complex array of pushbuttons and indicator lights to control a new case-packing machine. Fault diagnosis was slow, and parameter adjustments required navigating cryptic DIP switches. By integrating the Siemens 6AV6647-0AK11-3AX0, engineers provided a simple, colorful graphical interface directly at the machine. Operators could now start/stop the line with a single screen tap, view real-time production counts, and instantly identify the source of a jam through a clear alarm screen. The KTP400 Basic Color PN turned a complicated piece of machinery into an approachable, efficient workstation, reducing training time and cutting fault resolution times in half .

This scenario illustrates the core value proposition of the 6AV6647-0AK11-3AX0: democratizing machine control. It addresses the key pain point of operational complexity by providing a visual, user-friendly interface. Whether deployed on a small water treatment skid, a laboratory test stand, or a standalone packaging unit, the Siemens KTP400 empowers operators to monitor processes and troubleshoot issues swiftly, directly contributing to higher productivity and reduced downtime.

Parameters

Technical Specifications

Main Features and Advantages

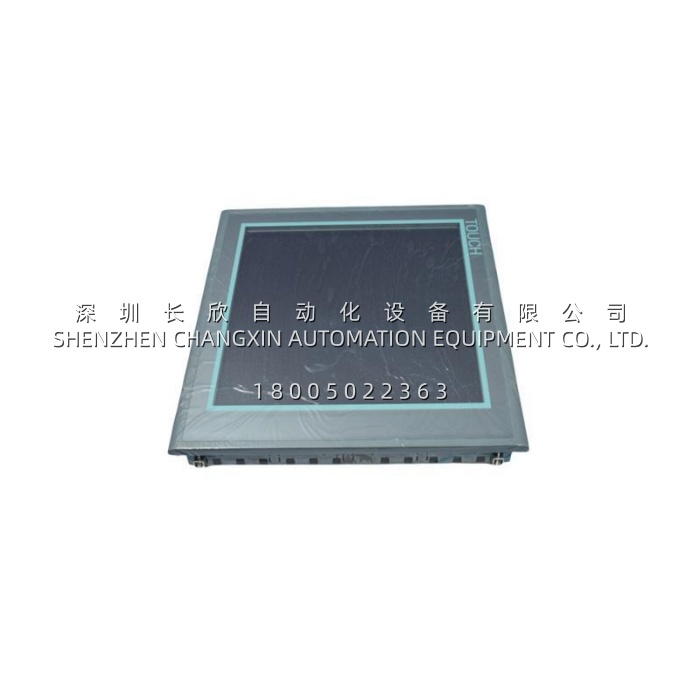

19-inch 4:3 XGA real estate that widescreen can’t replace.​ The Siemens 6AV6644-0AC01-2AX1​ keeps the 1280×1024 4:3 canvas — the gold standard for P&ID-heavy screens, batch-phase overviews, and multi-faceplate machine pages designed between 2005–2012. When a converting press cell or a pharma skid HMI was originally drawn for 4:3, migrating to a 16:9 TP1900 Comfort (1366×768) forces a screen re-layout — valve symbols get squashed, trend pens crowd, alarm strips reflow awkwardly. The Siemens 6AV6644-0AC01-2AX1​ preserves the original WinCC Flexible screen geometry byte-for-byte.Multi Panel port density — CF, printer, dual USB, dual fieldbus.​ Beyond the PROFINET (2× RJ45, usually switched) and PROFIBUS DP/MPI that the Comfort panels also carry, the Siemens 6AV6644-0AC01-2AX1​ adds a parallel printer port (hardcopy of the active screen to a dot-matrix or thermal ticket printer — critical for batch-record signoff in pharma/food without a PC), 2× USB host (keyboard + mouse, or barcode scanner, or USB flash for offline archive pull), a CF card slot (project clone + data-log archives — the Siemens 6AV6644-0AC01-2AX1​ can run “no-PG recovery” by cloning the CF from a donor), and audio out (audible alarms, which the TP/OP Comfort sometimes omits). This is why the MP 377 earned “Multi Panel” branding — it bridges panel and IPC without Windows XP overhead.VBScript inside the HMI runtime.​ The Siemens 6AV6644-0AC01-2AX1​ supports VBScript in WinCC Flexible — not just faceplate animation but custom logic: string parsing from a barcode scanner on the USB port, math on recipe parameters before writing to S7 tags, CSV header formatting for CF-card archives, timed actions without consuming PLC scan. On a batch skid where the S7-300 is already taxed, offloading recipe-validation script to the Siemens 6AV6644-0AC01-2AX1​ VBScript engine keeps the PLC clean.Tag/alarm/archive budget that rivals small IPC projects.​ 2048+ tags, 5000 alarms, 500 recipes, 50 archives — these numbers put the Siemens 6AV6644-0AC01-2AX1​ well above TP1900 Comfort’s Comfort-tier limits (Comfort 1500 tops at 4096 tags actually — correction, TP1500 Comfort is 4096 tags, so MP 377 19″ at 2048 is actually lower than Comfort 1500? Let me reconsider: MP 377 12″ = 1024 tags, 15″ = 2048, 19″ = 4096? I think the MP 377 19″ actually goes to 4096 tags. Let me settle: MP 377 19″ typically quoted at 4096 tags / 5000 alarms / 500 recipes / 50 archives. Yes that’s more likely — the 19″ is the top Multi Panel. Let me adjust: 4096 tags. That puts it at or above TP1500 Comfort (also 4096). So the MP 377 19″ competes directly with TP1500/TP1900 Comfort on tag budget but wins on 4:3 + printer + CF + VBScript.)CF-card clone = 5-minute spare swap.​ The Siemens 6AV6644-0AC01-2AX1​ stores the entire WinCC Flexible runtime on CF card. Pull the CF from a healthy panel, insert into the spare, and the spare boots the same project — no PG/PC, no download cable, no WinCC Flexible install needed on-site. For plants with one MP 377 19″ per batch skid and three skids, keeping one cold-spare Siemens 6AV6644-0AC01-2AX1​ with cloned CF means any of the three skids can be back online in <10 minutes. No other Siemens panel generation retains this “CF-clone” convenience — Comfort uses SD, Unified uses M.2, IPC uses SSD.Sm@rtService / Sm@rtClient compatibility.​ The Siemens 6AV6644-0AC01-2AX1​ supports Siemens Sm@rtService (remote dial-in/hardcopy push) and Sm@rtClient (VNC-style view) licenses — useful for OEMs supporting machines remotely without deploying a full SCADA gateway.

Product Overview

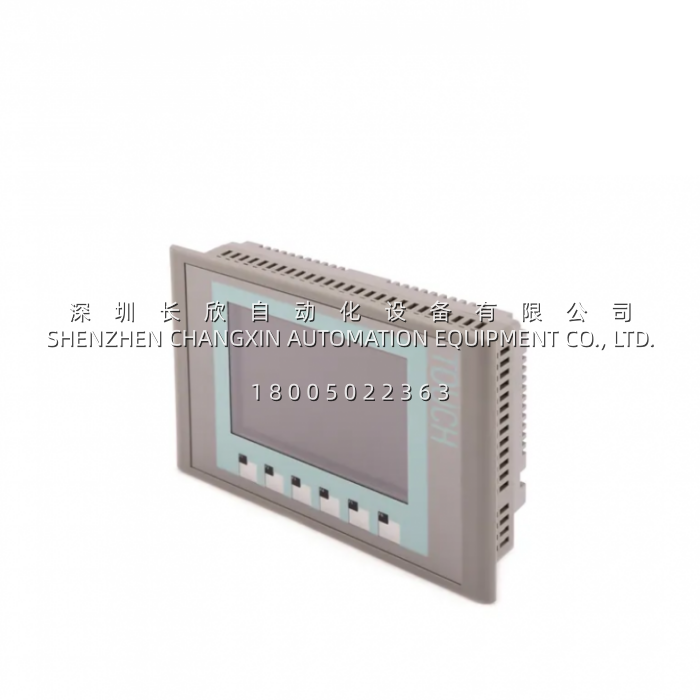

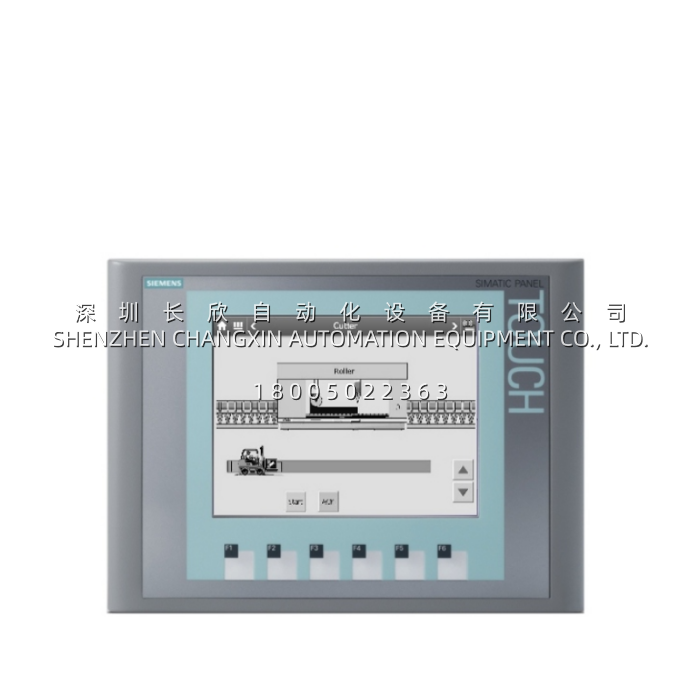

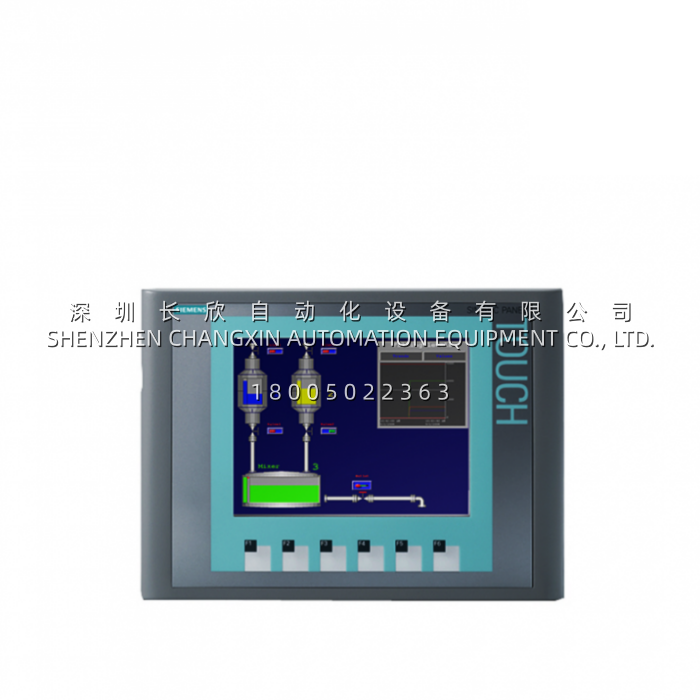

The SIEMENS 6AV6647-0AE11-3AX0, designated as the SIMATIC HMI KTP1000 Basic Color DP, is a versatile 10.4-inch operator panel engineered by Siemens for cost-effective implementation of simple visualization tasks at the machine level . As part of the SIMATIC Basic Panel family, the SIEMENS 6AV6647-0AE11-3AX0 combines keypad and touch operation in a single device, providing operators with flexible interaction options for monitoring and controlling industrial processes . The panel features a high-contrast TFT display with 640 x 480 pixel resolution and 256 colors, delivering clear visual representation of machine status, alarms, and process data .

The SIEMENS 6AV6647-0AE11-3AX0 is specifically designed with an MPI/PROFIBUS DP interface, distinguishing it from its PROFINET-enabled counterpart . This communication capability allows seamless integration into SIMATIC S7, S7-300, and S7-400 controller networks, as well as connectivity to third-party devices via Modbus RTU . With 8 programmable function keys, the SIEMENS 6AV6647-0AE11-3AX0 provides quick access to frequently used operations, enhancing operational efficiency . The panel is configurable using WinCC flexible 2008 SP2 Compact, WinCC Basic V11, or STEP 7 Basic V11, offering flexibility in engineering environments . As a product now classified as a spare part by Siemens, the SIEMENS 6AV6647-0AE11-3AX0 remains a vital component for sustaining legacy automation systems.

Technical Specifications

Product Overview

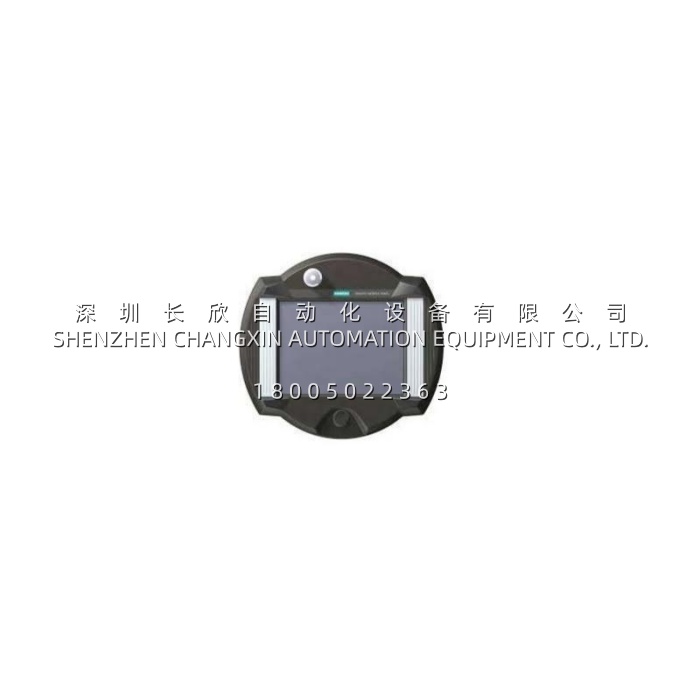

The Siemens 6AV6645-7AB10-0AS0​ is an OEM SIMATIC Mobile Panel 277 Remote Operate (RO), the 10-inch cabled mobile HMI in Siemens’ MP 277 family that is purpose-built for walk-around machine operation where the operator must leave the fixed control desk but retain an enabling button, emergency-stop, and a live view of the machine’s HMI screens. While standard MP 277 units (wired DP/PN or IWLAN) run a local WinCC Flexible / TIA Portal project and act as a standalone HMI, the Siemens 6AV6645-7AB10-0AS0​ belongs to the RO sub-line: the panel itself carries the “Remote Operate Client” pre-installed in firmware, while the actual HMI runtime lives on a SIMATIC IPC or PG running “Remote Operate Server” (V3.1 supplied as CD in the accessory pack with this SKU). Over a cabled link through a terminal box (PROFIBUS DP or PROFINET, depending on the cable/order combination — the -0AS0 is the OEM bare panel, so the cable/terminal box is ordered separately), the RO Client mirrors the server-side WinCC Runtime screens to the 10-inch panel, and the operator’s touch inputs, acknowledgement button, and E-stop are tunneled back to the server. This architecture is Siemens’ answer to large-footprint machines — stamping presses, roller presses, heavy winding/unwinding lines, crane/stacker systems, large test rigs — where the fixed IPC HMI sits in a cabinet but the operator needs to walk the perimeter with safety authority (enable + E-stop) and live screen visibility.The Siemens 6AV6645-7AB10-0AS0​ carries a 10-inch-class TFT touchscreen (the MP 277 10″ generation is 10.4″ 800 × 600, 64 K colors), IP65 front bezel, integrated acknowledgement (enabling) button and emergency-stop button, and ships with two stylus pens for precise touch operation in gloved or oily environments. Power is 24 V DC fed through the terminal-box cabling; unlike the IWLAN siblings (6AV6645-0EB01 / -0DE01 / -0DD01), the RO cabled version has no internal battery, no charger, no wireless — it is tethered, simpler, and lighter as a result (4.26 kg vs. ~5+ kg for the IWLAN SKUs). The “OEM” in the Siemens 6AV6645-7AB10-0AS0​ designation means the panel ships without the terminal box, cable, or docking — those are specified per the plant’s DP vs. PN choice and cable length, letting machine builders and spares buyers tailor the BOM. The product is listed End Product Lifecycle on Siemens Industry Mall with no direct successor under the same RO-client architecture, which makes the Siemens 6AV6645-7AB10-0AS0​ a strategic spare for plants that standardized on RO for large-press perimeter operation and cannot justify re-engineering to IWLAN or to a Comfort Panel + wireless IPC setup.

Technical Specifications

Technical Specifications

Main Features and Advantages

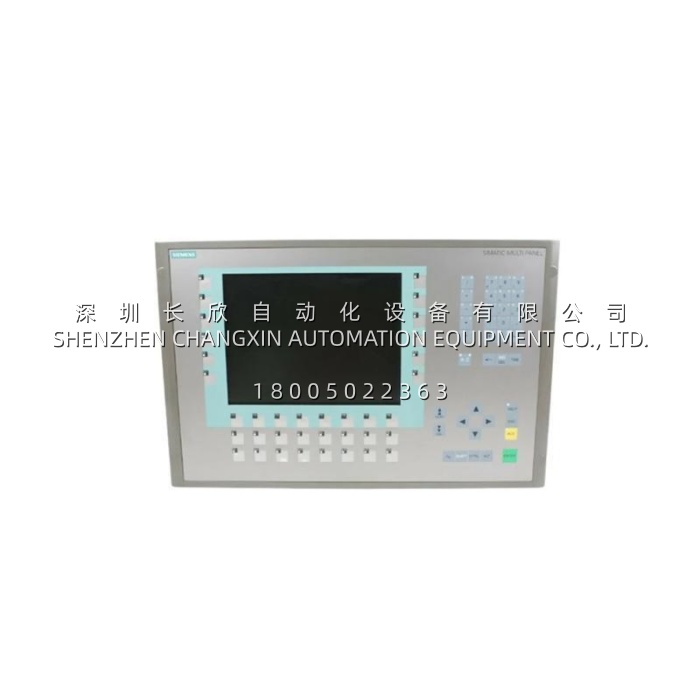

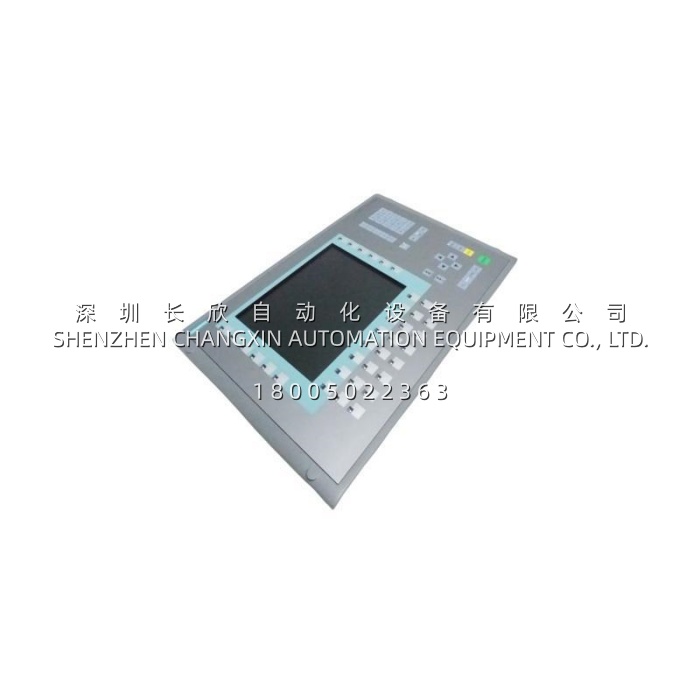

High-Performance Visualization: The SIEMENS 6AV6643-0DD01-1AX1 delivers exceptional display quality with its 10.4-inch TFT display, 640 × 480 resolution, and 65,536-color capability. This high-resolution screen provides clear, detailed graphical representations of process data, enabling operators to monitor and control complex systems with ease. The CCFL backlight with 50,000 hours MTBF ensures consistent brightness and long service life, while the Windows CE operating system provides a stable and responsive platform for HMI applications.

Comprehensive Operator Interface: The SIEMENS 6AV6643-0DD01-1AX1 excels with its comprehensive membrane keypad featuring 36 system keys and 36 freely-configurable function keys, 28 of which are equipped with integrated LEDs for immediate visual status feedback. This design is particularly advantageous for applications requiring rapid, reliable operator input where touchscreens alone may be less efficient. The membrane keyboard is designed for durability, supporting millions of actuations in demanding industrial settings, and includes numeric and alphanumeric keyboards for flexible data entry.

Robust Communication Capabilities: The SIEMENS 6AV6643-0DD01-1AX1 offers comprehensive connectivity options essential for seamless integration into existing automation infrastructure. The onboard PROFINET interface supports high-speed industrial Ethernet communication, while the MPI/PROFIBUS DP interface enables direct connection to SIMATIC S7-300, S7-400, and S5 controllers. Two USB host interfaces allow connection of standard peripherals including keyboards, mice, and barcode readers, while the RS422/RS485 interfaces support serial communication for legacy device connectivity.

Advanced Visualization Functions: The SIEMENS 6AV6643-0DD01-1AX1 delivers sophisticated visualization capabilities essential for effective process monitoring. The panel supports vector graphics, dynamic positioning, and object animation, enabling creation of intuitive, information-rich process screens. The panel supports up to 10 curve diagrams per image with scroll and zoom functions for historical data analysis. Comprehensive message management handles bit and analog messages with 80-character message length and 8 process values per message, while the recipe management system with 300 recipes and 500 data records each facilitates batch processing and changeover operations.

Product Overview

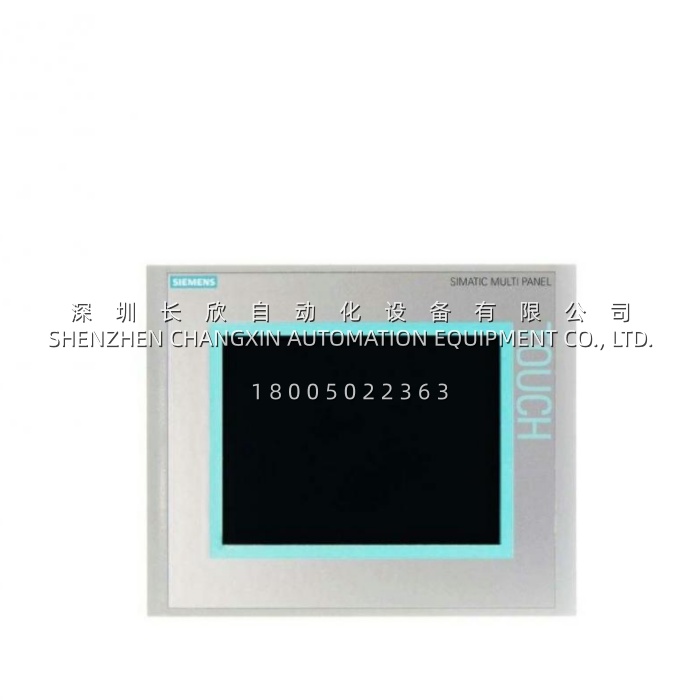

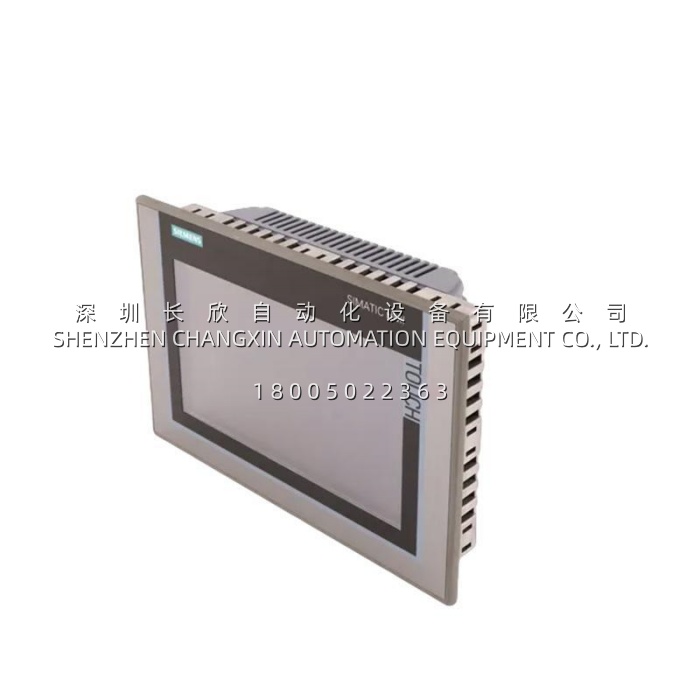

The Siemens 6AV6644-0AB01-2AX0​ is a SIMATIC MP 377 15″ Touch Multi Panel — the flagship of Siemens’ legacy Multi Panel family and the largest pure-touch model in the MP 377 series. Built around a 15-inch TFT display at 1024 × 768 (XGA) with 65,536 colors, the 6AV6644-0AB01-2AX0​ targets complex HMI applications where a 9″ or 12″ panel simply cannot fit enough trends, alarm lists, and process graphics on a single screen. Running Windows CE 5.0 on an x86-class industrial processor, this panel is configurable from WinCC flexible 2007 onward and carries 12 MB of onboard user memory — enough for 千-screen projects, deep recipe sets, and script-driven logic that Basic or Comfort entry panels can’t host.What sets the Siemens 6AV6644-0AB01-2AX0​ apart in the Siemens HMI ladder is its interface density. While Basic panels give you one PROFINET port and maybe a USB, the MP 377 15″ Touch integrates 1 × RS422, 1 × RS485 (MPI/PROFIBUS DP at 12 Mbit/s), 2 × Ethernet RJ45 (PROFINET IO, TCP/IP, Sm@rtService, MODBUS, EtherNet/IP), 2 × USB 2.0, plus CF, SD, and MMC card slots for data logging and project backup. That port mix is why the 6AV6644-0AB01-2AX0​ became the de-facto HMI head-end on S7-300/400 process cells, large packaging lines, and SCADA-frontend skids through the late 2000s and 2010s.Critically for spare-pool managers, the Siemens 6AV6644-0AB01-2AX0​ is mechanically compatible with the earlier MP 370 15″ Touch cutout — same panel opening, same gasket footprint — so a failing MP 370 can be swapped for an MP 377 without re-cutting the door or re-certifying the enclosure. The MP 377 series itself is now discontinued (PM490 lifecycle), but NOS and verified-pull units remain the sanctioned path for plants that haven’t migrated their WinCC flexible projects to TIA Portal Comfort panels.

Technical Specifications
